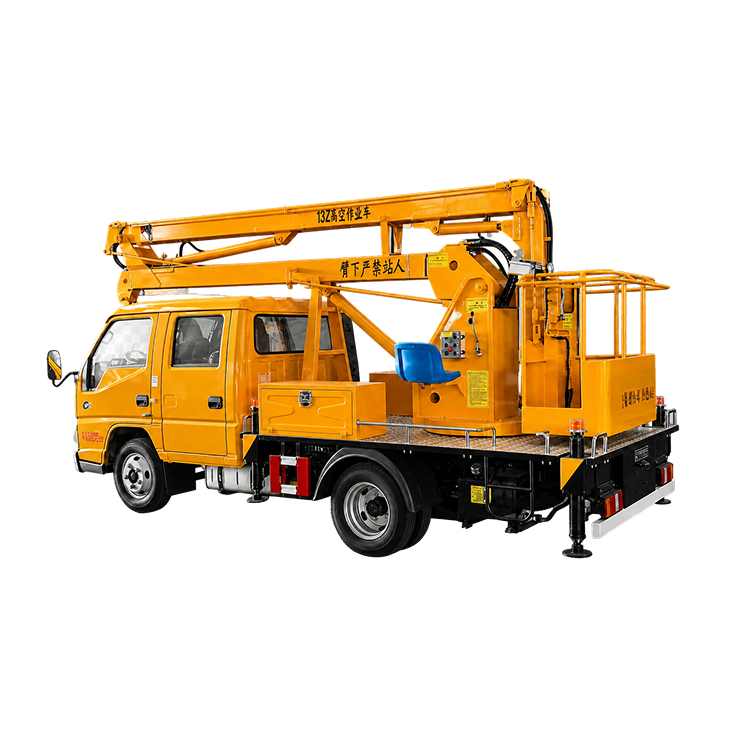

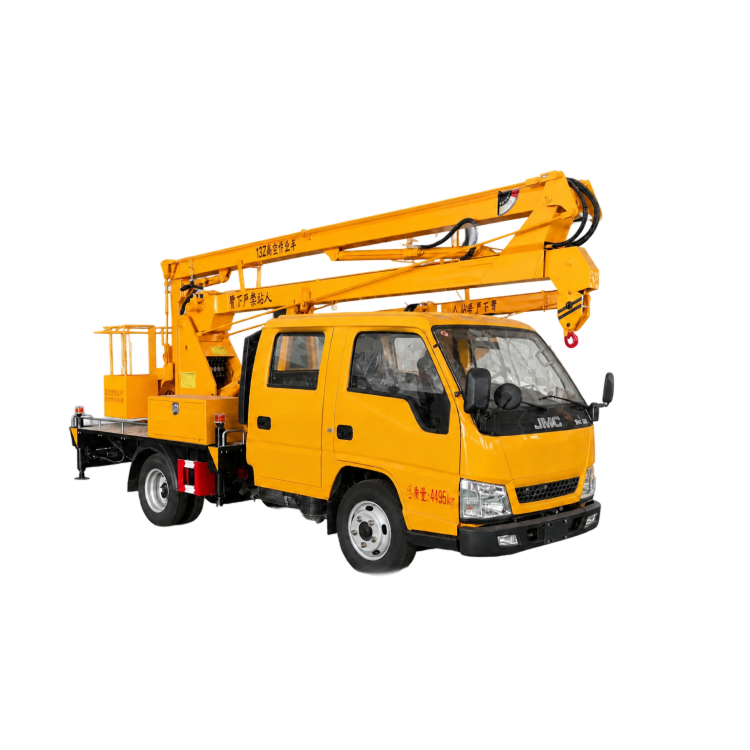

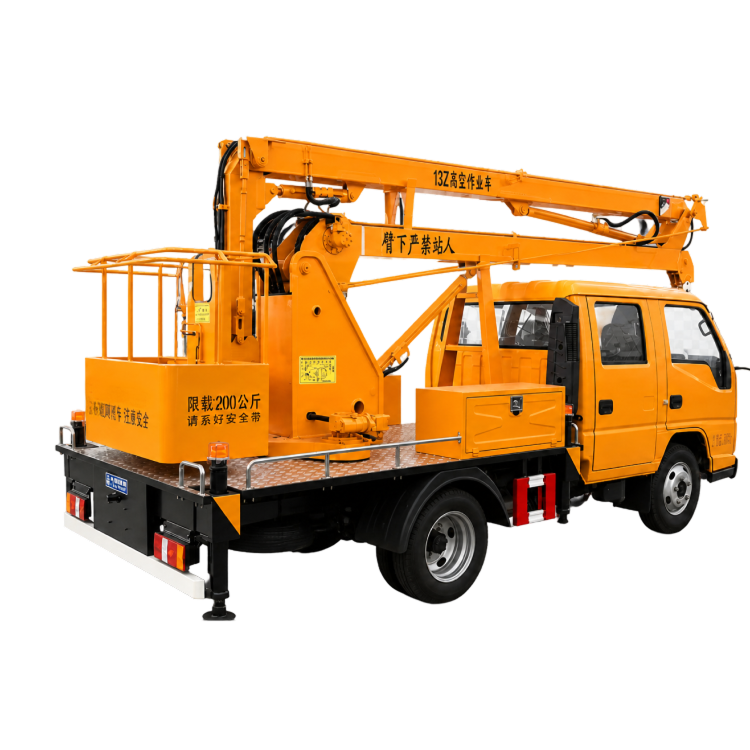

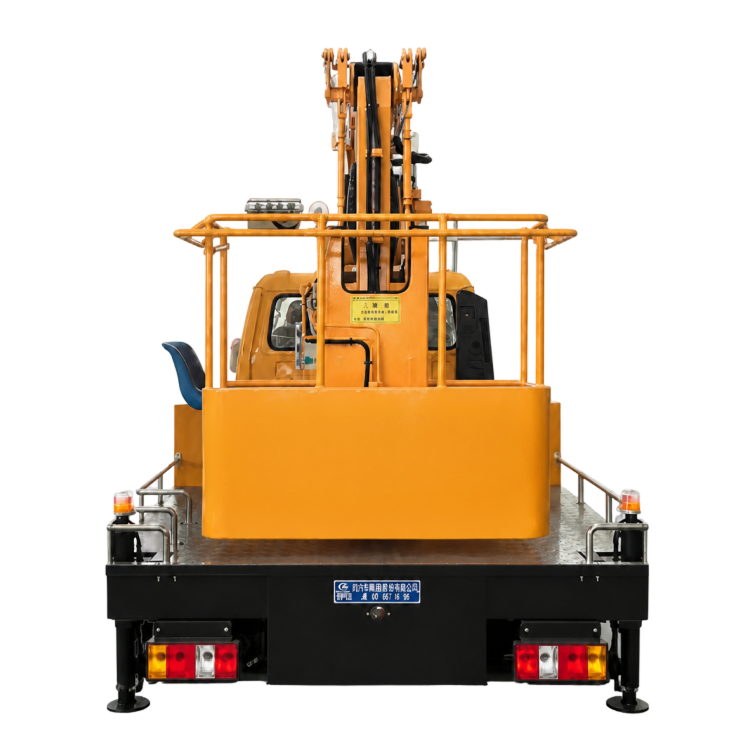

Engineered for municipal utilities and emergency repair crews, the CLW5040JGKBGK 13-Meter Aerial Work Platform Vehicle provides a versatile high-altitude working solution. With a double-row crew cab seating up to 5 personnel, it allows fully equipped teams to deploy efficiently to job sites.
Smooth Positioning: Utilizes smooth boom extension/retraction and full turntable rotation to precisely maneuver the platform into working position.
Robust Safety Protection: Built with high-strength Q235A carbon steel side and rear lower underrun guards attached via continuous welding to maximize structural integrity.
Advanced Braking: Standard equipped with APG3550500A ABS system (or optional hydraulic brake ABS model 3550B500) to ensure high road stability during transit.
Municipal streetlight and traffic signal maintenance.
Power grid and electrical infrastructure emergency repairs.
Telecommunications network installations and overhead cable repairs.
| Category | Specification | Parameter / Detail |
|---|---|---|
| Vehicle Specifications | Product Name | Aerial Work Platform Vehicle-Double-Row 13-Meter |
| Vehicle Model | CLW5040JGKBGK | |
| Gross Mass (GVW) | 4,495 kg | |
| Curb Weight | 4,170 kg | |
| Overall Dimensions | 5960 × 1980 × 2930 mm | |
| Cab Seating Capacity | 2+3 persons (Double Row) | |
| Approach / Departure Angle | 19/11°, 22/11° | |
| Front / Rear Overhang | 1110/1820 mm, 1090/1820 mm, 1075/1820 mm | |
| Axle Load | 1445 / 3050 kg | |
| Maximum Speed | 100 km/h | |
| Chassis Specifications | Chassis Model & Name | JX1041TSCB26 Cargo Truck Chassis |
| Axles / Tires | 2 Axles / 6+1 Tires | |
| Wheelbase | 2800 mm | |
| Tire Specifications | 6.50R15LT 10PR, 6.50R16LT 10PR, 185/75R16C, 7.00R16LT 8PR/10PR/14PR | |
| Fuel Type | Diesel Fuel | |
| Emission Standard | GB17691-2018 National VI | |
| Front / Rear Track Width | Front: 1400/1370/1385 mm | Rear: 1425/1520/1650 mm | |
| ABS System Model | APG3550500A (Optional hydraulic brake ABS: 3550B500) | |
| Protective Features | Protection Material & Connection | Q235A Carbon Steel side/rear protection attached via continuous welding |
| Rear Guard Dimensions | Cross-section: 100 × 55 mm | Ground Clearance: 390 mm |
