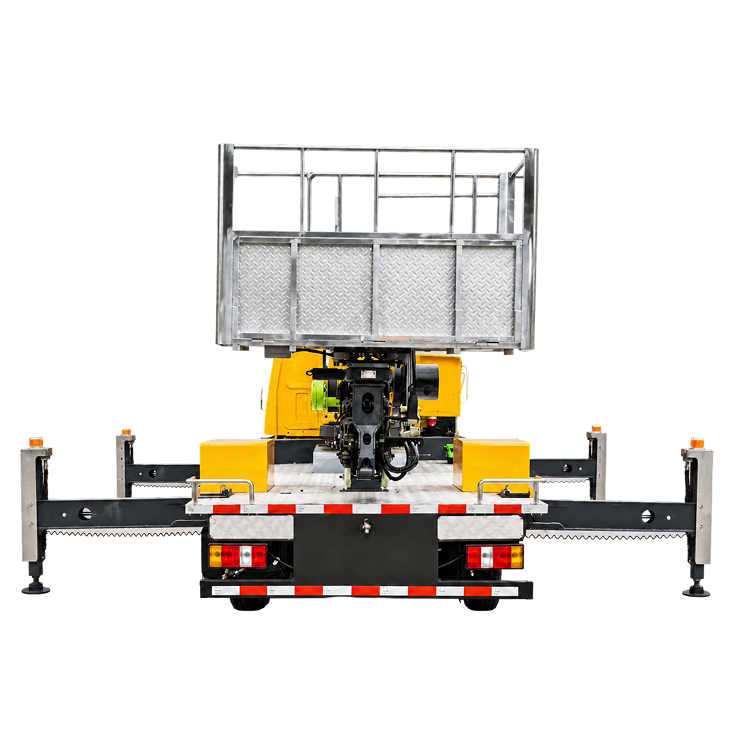

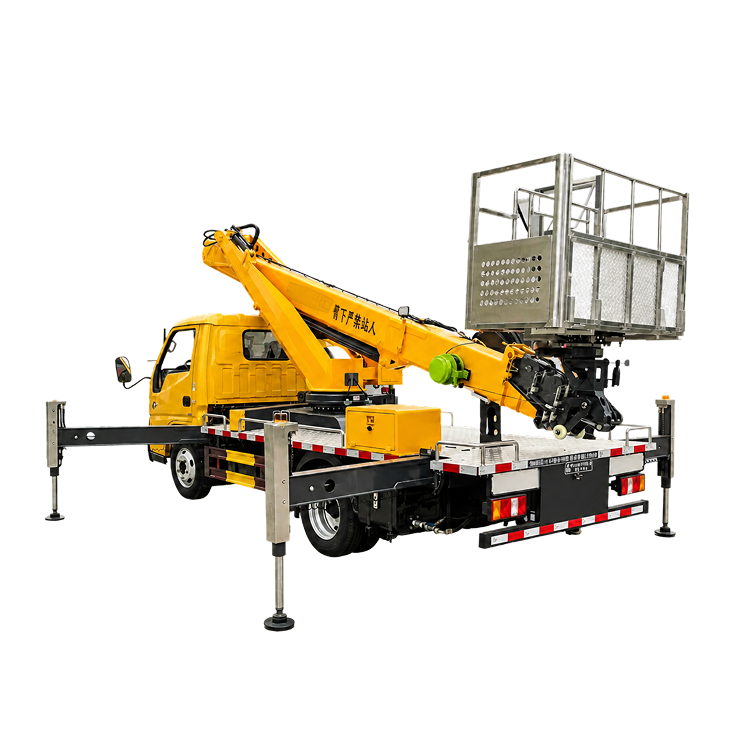

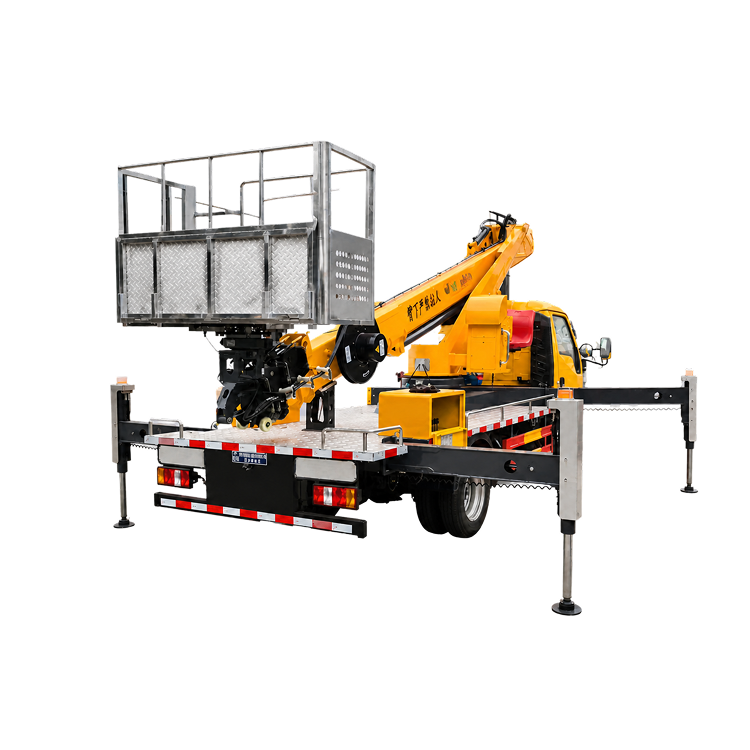

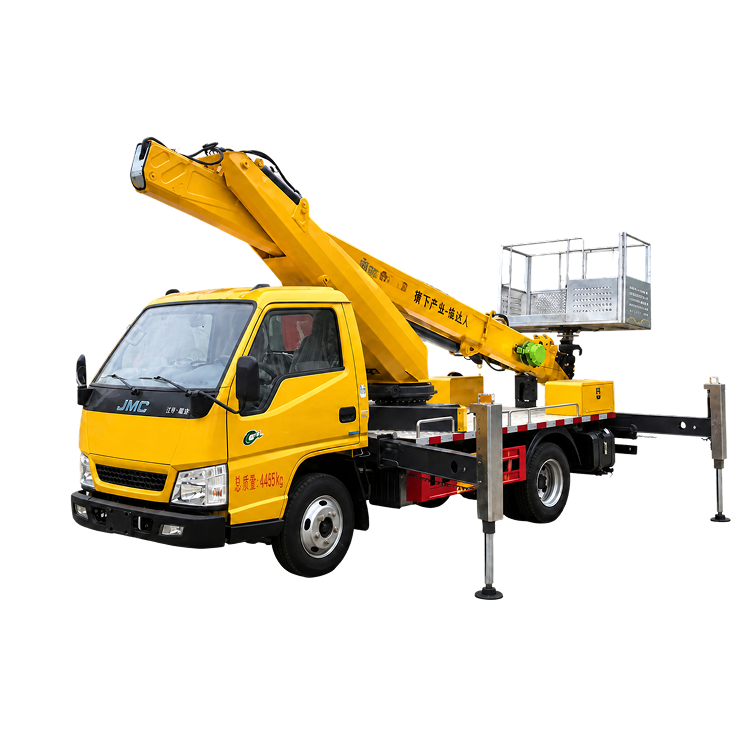

The Aerial Work Platform Vehicle-Straight Arm 23 Meters (CLW5048JGKJ6) is a specialized high-altitude utility vehicle engineered to lift operators safely to elevated work areas
Designed for high-reach urban and industrial maintenance, the CLW5048JGKJ6 Straight Arm Aerial Truck provides a stable working platform at heights up to 23 meters
Telescoping Boom System: Features a durable straight-arm telescoping boom mechanism that extends and retracts smoothly to achieve optimal working height and side reach
360° Turntable Rotation: Outfitted with a high-torque rotating turntable for flexible positioning around overhead lines, tree limbs, and building facades
Stabilizing Outriggers: Equipped with hydraulic outriggers to ensure chassis balance and ground stability during elevated operations
Engine & Powertrain: Built on the Jiangling JX1041TG26 Euro VI diesel chassis, combining fuel efficiency with dependable road performance
Protection & Safety Engineering: Features 6063A aluminum profile side protection guards welded to the frame, along with Q235A carbon steel rear underrun protection (100×50 mm cross-section with 410 mm ground clearance)
Braking Control: Integrated with an APG3550500A ABS system to maintain control during road transport
| Category | Specification | Parameter / Detail |
|---|---|---|
| Vehicle Specifications | Product Name | Aerial Work Platform Vehicle-Straight Arm 23 Meters |
| Product Model | CLW5048JGKJ6 | |
| Gross Mass (GVW) | 4,495 kg | |
| Curb Weight | 4,365 kg | |
| Overall Dimensions | 5995 × 2040 × 2880 mm | |
| Cab Seating Capacity | 2 passengers | |
| Approach / Departure Angle | 20 / 14° | |
| Maximum Speed | 80 – 100 km/h | |
| Chassis & Powertrain | Chassis Model & Name | JX1041TG26 Cargo Truck Chassis |
| Fuel Type & Emission Standard | Diesel Fuel | GB17691-2018 National VI | |
| Wheelbase | 3,360 mm | |
| Tires & Axles | 2 Axles / 6 Tires (7.00R16LT, 6.50R16LT, 195/85R16LT) | |
| Track Width (Front/Rear) | Front: 1385–1480 mm | Rear: 1425/1440 mm | |
| Safety Systems | ABS System (Model: APG3550500A) | |
| Aerial & Guard Equipment | Specialized Aerial Apparatus | 23m straight-arm telescoping boom assembly, turntable, work platform, hydraulic outriggers |
| Underrun Protection | Side: 6063A aluminum profile (welded) | Rear: Q235A carbon steel (100×50mm, 410mm clearance) |
