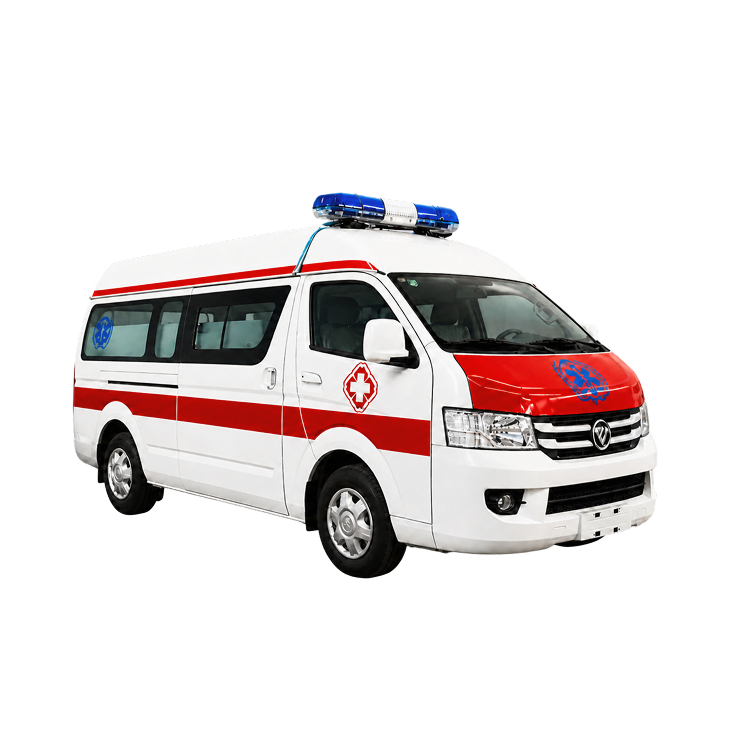

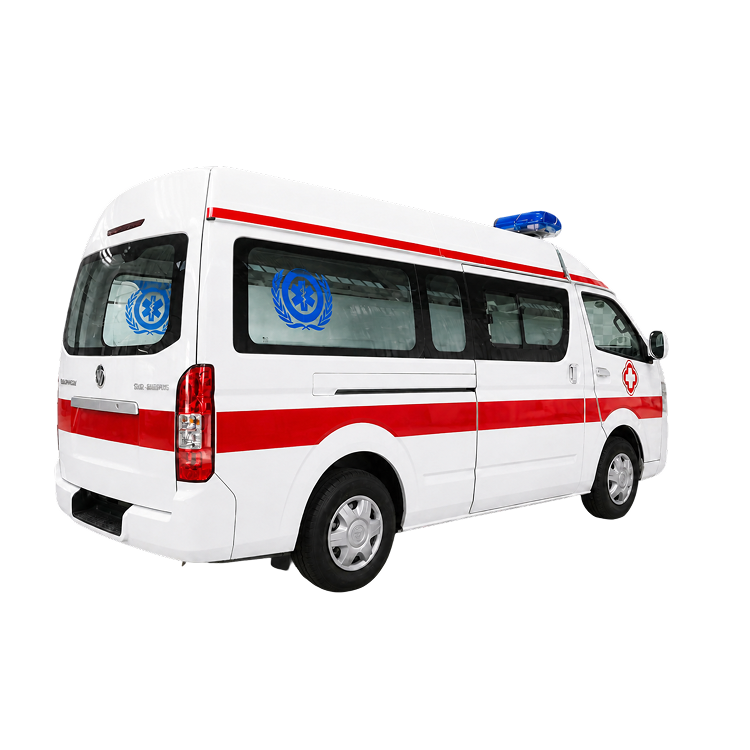

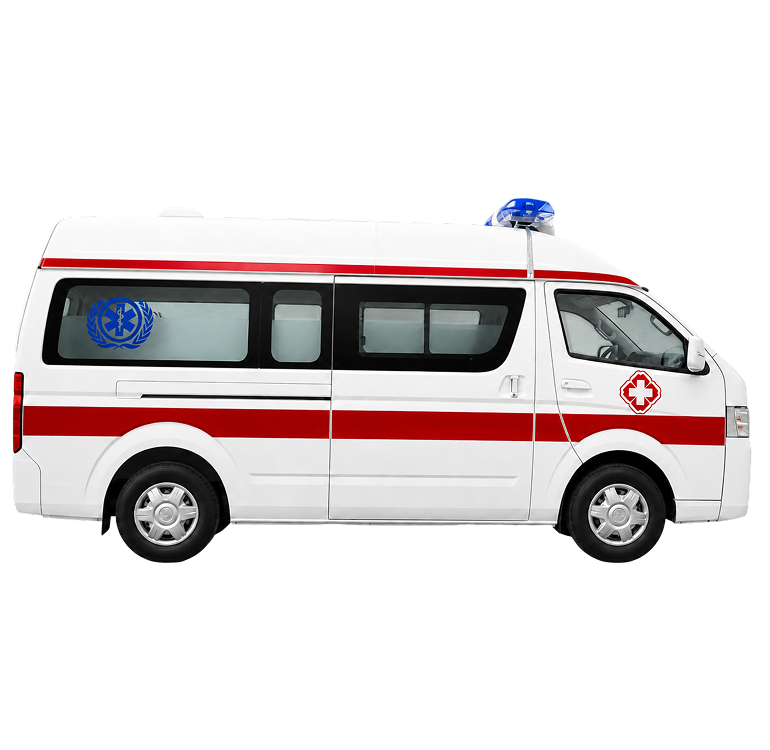

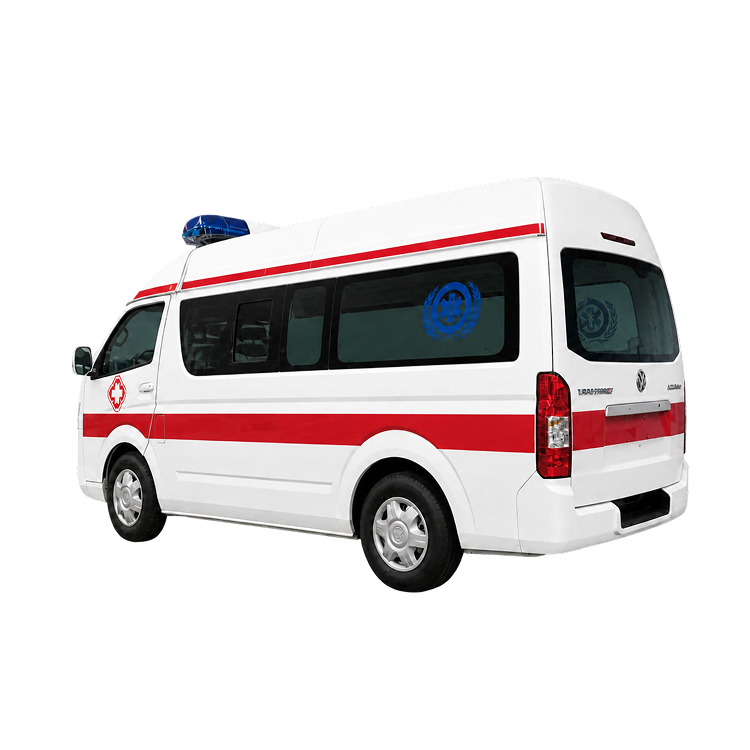

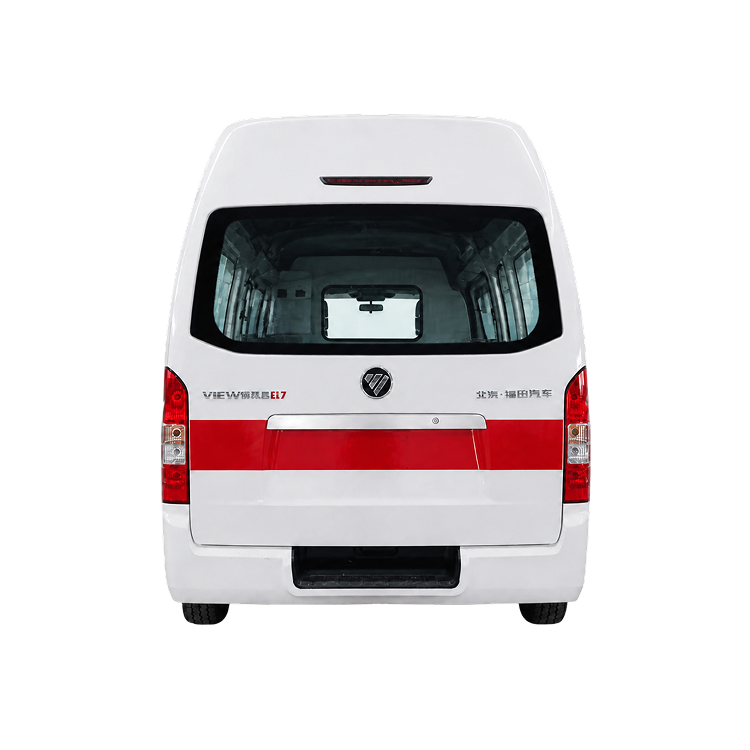

Designed for hospitals, emergency response units, and public health institutions, the CLW5035XJHCDP Foton View G7 Medical Ambulance delivers rapid and safe transport for the sick and wounded
Patient Handling: Includes an aluminum alloy automatic loading stretcher with restraint belts, supported by a stainless-steel assistance loading tray for quick and safe patient entry/exit
Oxygen & Resuscitation: Built with a front-left compartment housing two 10L steel oxygen cylinders, concealed piping, dual oxygen terminals, and an inhaler setup
Hygiene & Sanitation: Features acid- and alkali-resistant, anti-static, easy-clean floor materials, a 5L stainless-steel waste bin, and a partition-mounted UV disinfection lamp
Power & Lighting: Equipped with a 1000W smart inverter, dual 220V sockets, piano-style control panel, recessed ceiling lighting, infusion spotlights, and rear field illumination
Visual & Acoustic Warnings: Features a long-row warning light assembly, a 1000W/100W alarm speaker with handheld controls, and 6 LED strobe sign lights (blue and white)
Environmental Control: Independent rear air-conditioning and heating units allow custom temperature control in the medical pod
Partition & Seating: Partition wall with a sliding glass observation window, a right-side two-seater PVC bed with leather cushions, a single seat in front, and intercom walkie-talkies for front-to-back communication
| Category | Specification | Parameter / Detail |
|---|---|---|
| Vehicle Specifications | Product Name | Ambulance-Foton View G7 |
| Product Model | CLW5035XJHCDP | |
| Gross Mass (GVW) | 3,200 kg | |
| Curb Weight | 2,090 kg | |
| Overall Dimensions | 5340 × 1695 × 2430 mm | |
| Passenger Capacity | 6–8 persons | |
| Approach / Departure Angle | 15 / 17° | |
| Maximum Speed | 150 km/h | |
| Chassis & Engine | Chassis Model | BJ6539B1DXA-K1 |
| Engine Model & Fuel Cons. | 4K22D4M Gasoline Engine | 10.70 L/100km (WLTC) | |
| Emission Standard | GB18352.6-2016 National VI | |
| Wheelbase | 3,050 mm | |
| Tires & Axles | 2 Axles / 4 Tires (195/70R15LT, 195R15C) | |
| Track Width (Front/Rear) | Front: 1470 mm | Rear: 1465 mm | |
| Safety Systems | ABS (YF8), Event Data Recording (EDR), optional direct-power ETC | |
| Medical & Safety Equipment | Patient Transport | Aluminum auto-loading stretcher, stainless stretcher aid, folding infusion holder |
| Oxygen System | Two 10L steel oxygen cylinders, concealed tubing, dual terminals, oxygen inhaler | |
| Electrical & Controls | 1000W Smart Inverter, 220V sockets, piano control panel, UV disinfection lamp | |
| Signaling & Lighting | Long row warning light, 100W speaker/alarm, 6 LED strobes, rear field light |
