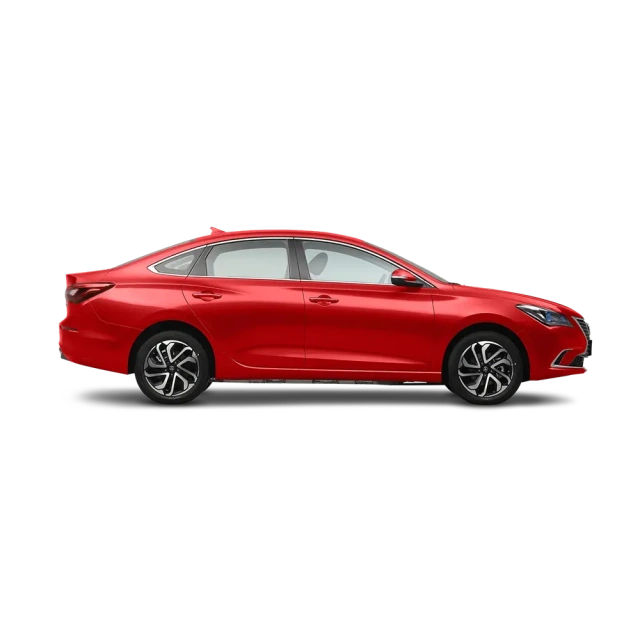

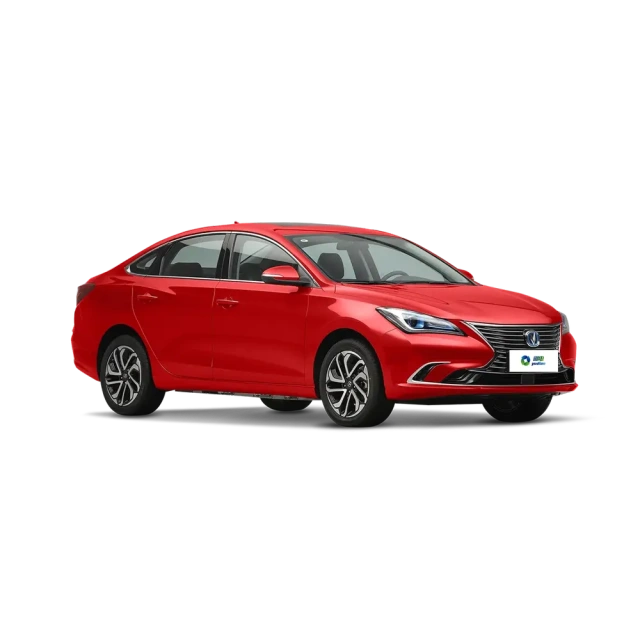

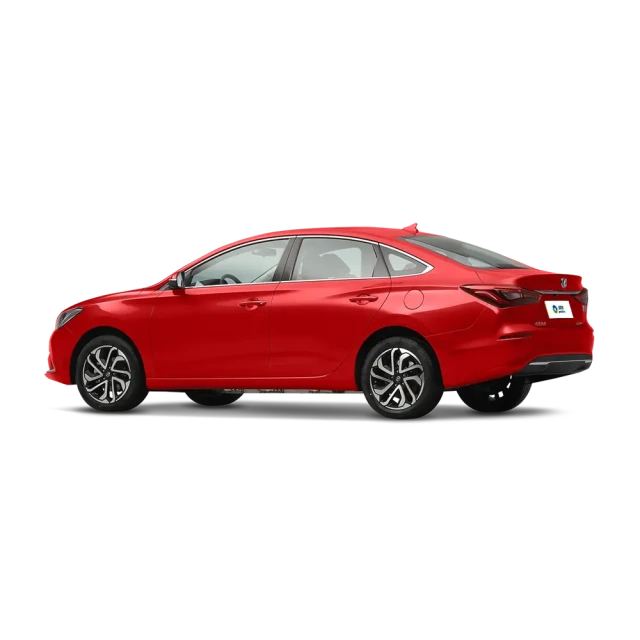

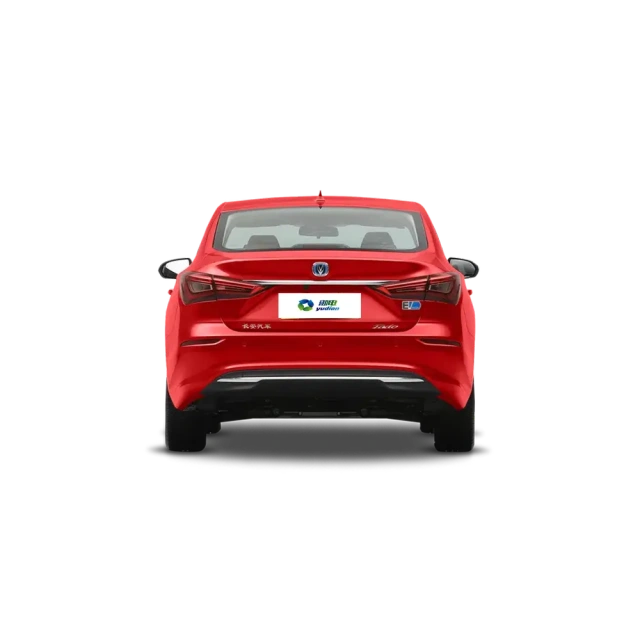

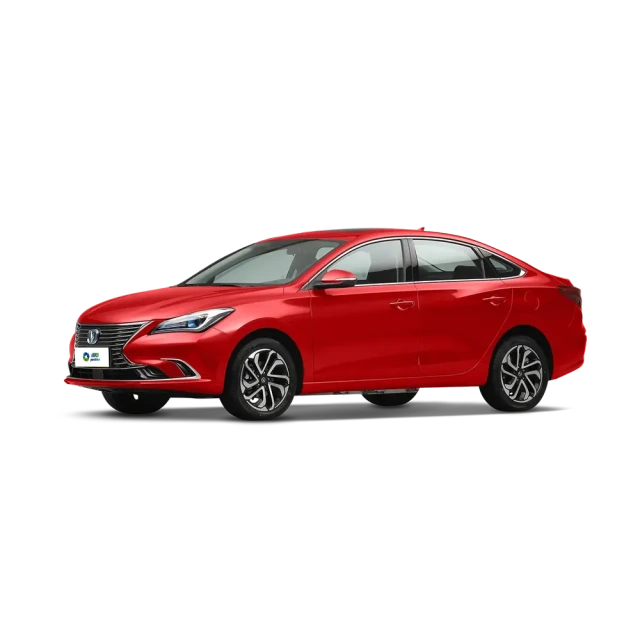

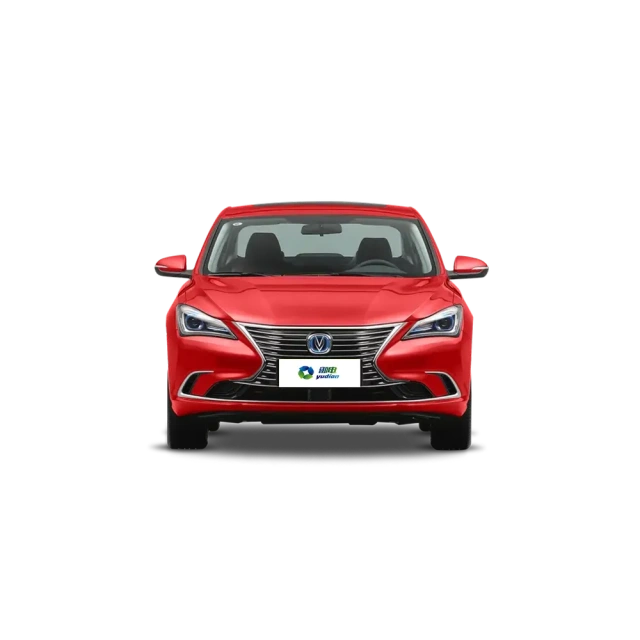

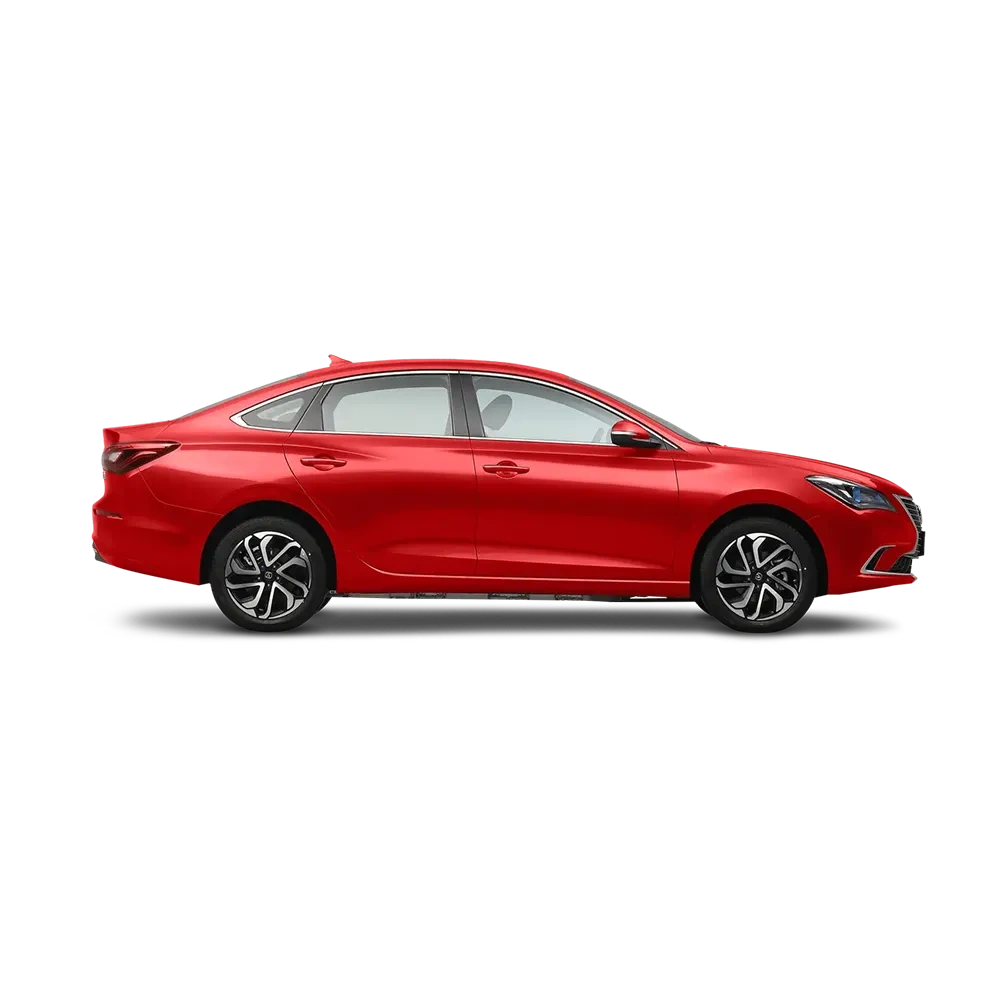

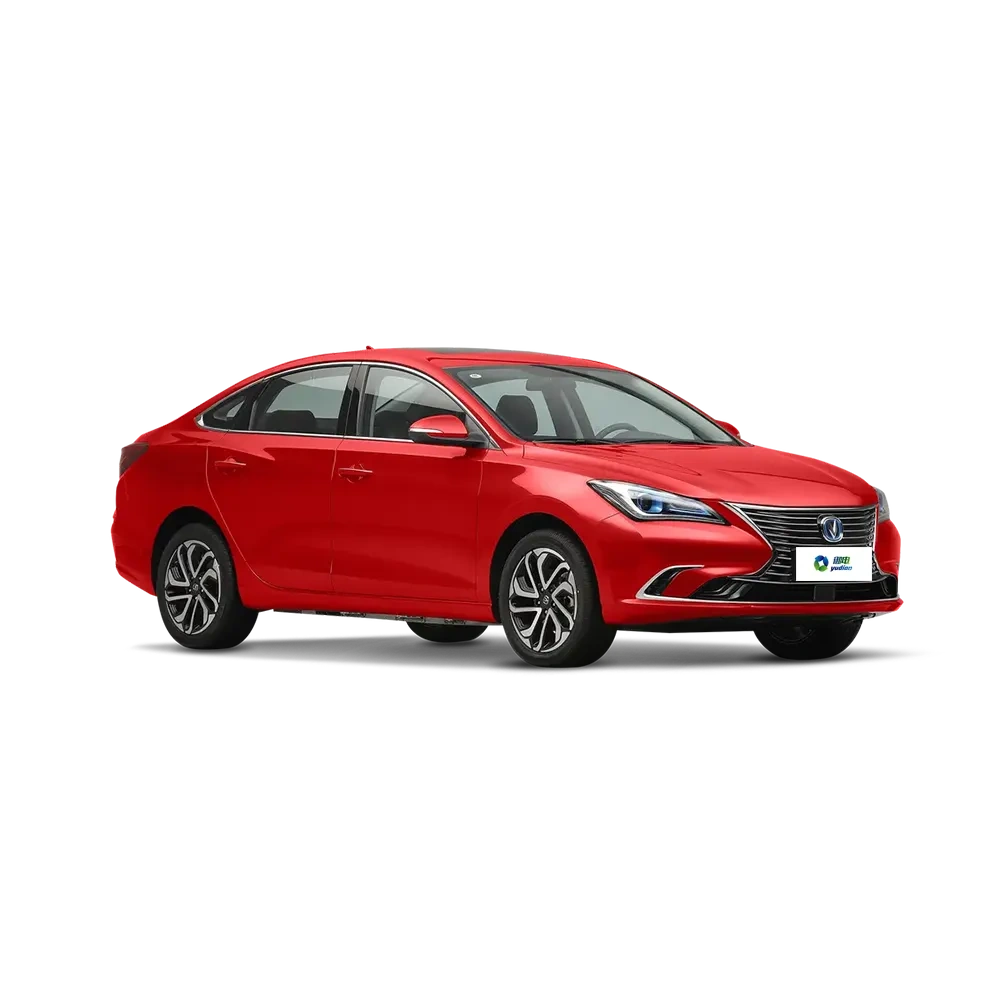

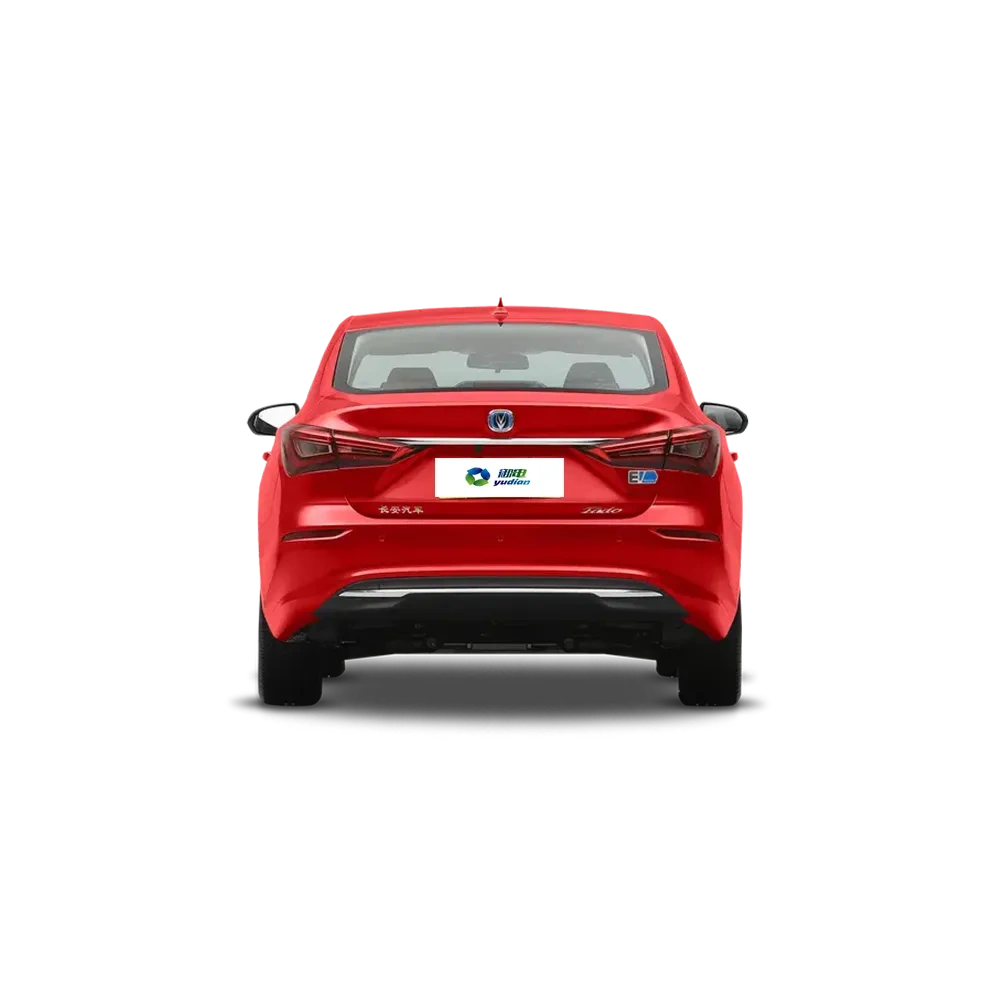

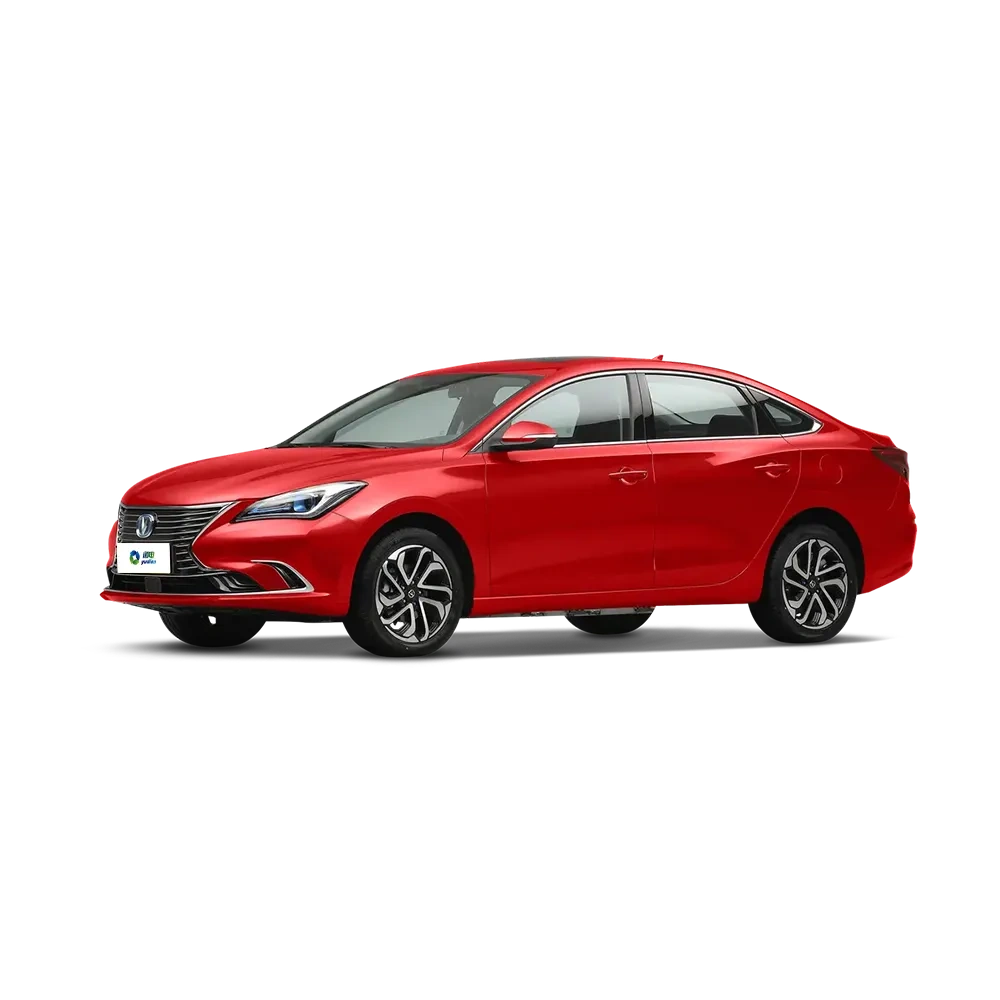

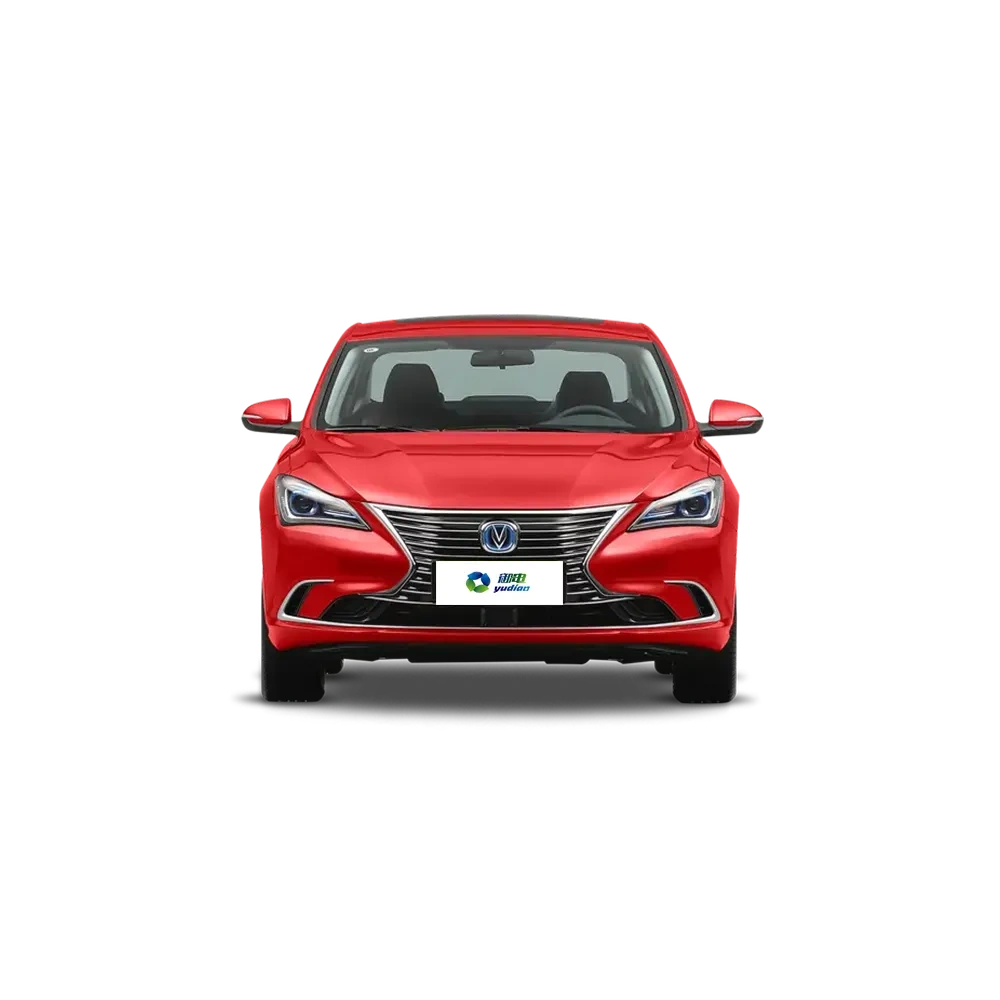

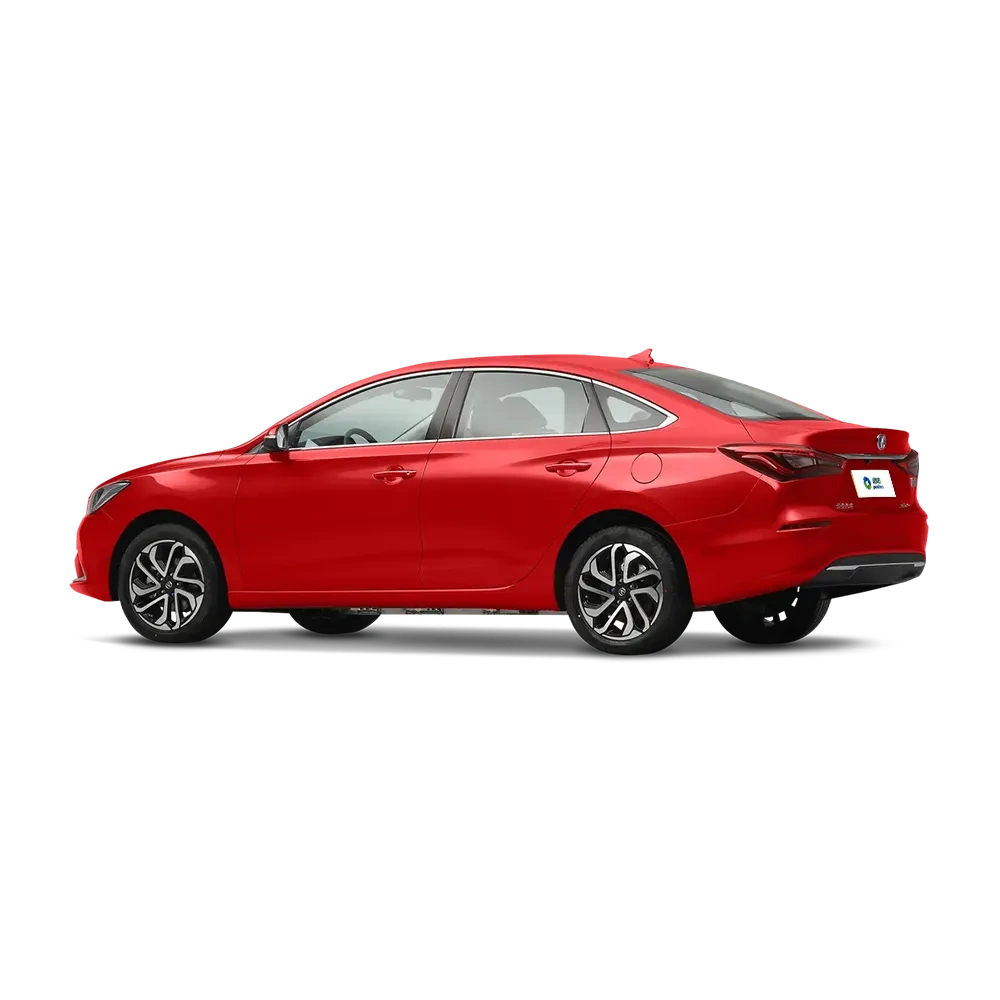

The dimensions of the Changan Eado EV are 4740×1820×1530mm (length x width x height), with a wheelbase of 2700mm, front track of 1555mm, and rear track of 1566mm. The vehicle can accommodate 5 people.
The Eado EV adopts a front-mounted single motor configuration, with a load-bearing body structure. It has a front-wheel-drive layout, with MacPherson independent suspension at the front and multi-link independent suspension at the rear.
The Eado EV is equipped with two types of batteries: lithium iron phosphate and ternary lithium. The lithium iron phosphate battery provides a pure electric range of 401km under NEDC conditions, while the ternary lithium battery provides the same range. It also supports fast charging.

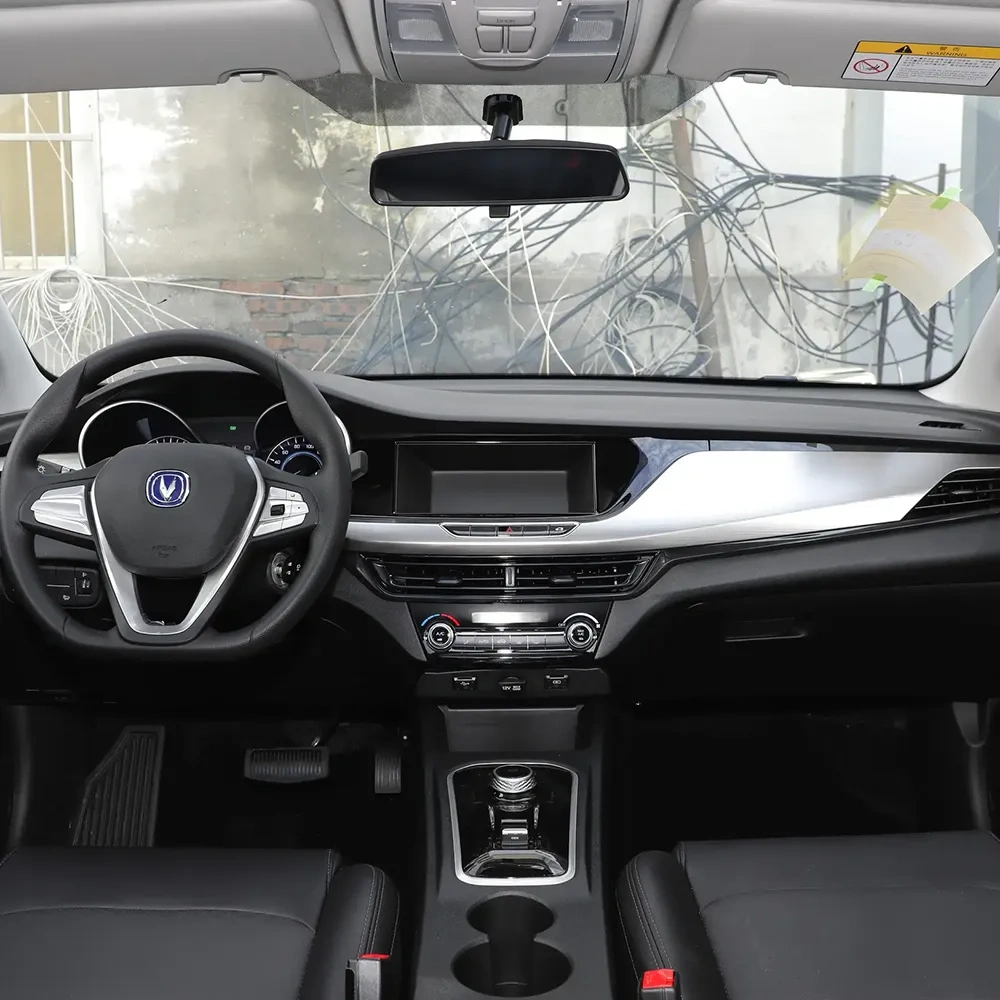

It is equipped with Nappa textured leather seats with heating function, more than 30 storage spaces, a 10-inch high-definition color central control touch screen, in-call 3.0 vehicle connectivity system, GPS navigation, voice control, in-car Wi-Fi, and other features.
The Eado EV motor delivers a maximum horsepower of 163Ps, with a front-mounted permanent magnet synchronous motor providing a maximum power of 120kW. It is paired with a single-speed transmission and has a maximum torque of 245N.m. It has a range of 401km under NEDC conditions.
The Changan Eado EV is equipped with multiple active and passive safety systems, such as collision warning, automatic emergency braking, lane-keeping assist, etc., providing comprehensive safety protection.
Basic Information |
|||
| Top Speed(km/h) | 135/145 | Acceleration 0-100km (s) | 10.8 |
| Body | |||
| Length (mm) | 4740 | Width (mm) | 1890 |
| Height (mm) | 1530 | Wheelbase(mm) | 2700 |
| Front Track (mm) | 1555 | Rear Track (mm) | 1566 |
| Doors | 4 | Seats | 5 |
| Curb Weight (kg) | 1630 |
Loaded Ground Clearance (mm)
|
120 |
|
Minimum Turning Radius (m)
|
5.6 |
Trunk Capacity (L)
|
410 |
|
Electric Motor
|
|||
|
Motor Brand
|
XTDM14
|
Number of electric motors
|
Single |
|
Motor Layout
|
Front |
Motor Type
|
PMSM |
|
Total Motor Power (kW)
|
120 | Number of Cylinders | 4 |
| Valves per Cylinder | 4 |
Total Motor Torque (N·m)
|
245 |
|
Front Motor Max Power (kW)
|
120 |
Front Motor Max Torque (N·m)
|
245 |
|
Battery/Charging
|
|||
|
Battery Type
|
LFP battery
|
Cell Manufacturer
|
CATL |
|
Battery Pack Capacity(kWh)
|
44.43/47.78 |
CLTC EV Range(km)
|
365/401 |
|
DC Fast Charging Time (min)
|
80/50 |
DC Charging Capacity (%)
|
0-80
|
| Gearbox | |||
| Gears | 1 | Transmission |
Fixed Gear Ratio
|
| Chassis & Suspension | |||
| Drivetrain | FWD | Front Suspension | MacPherson Independent Suspension |
| Rear Suspension | Multi-Link Independent Suspension | - | - |
| Tires & Brake | |||
| Front Brake | Ventilated Disc | Rear Brake | Solid Disc |
| Parking Brake | Electronic Parking Brake | Front Tire Specification |
205/60 R16
|
| Rear Tire Specification | 205/60 R16 | ||
| The specifications and configurations provided on this page are for reference only. Actual specifications are subject to the vehicle sold at the dealership. | |||
