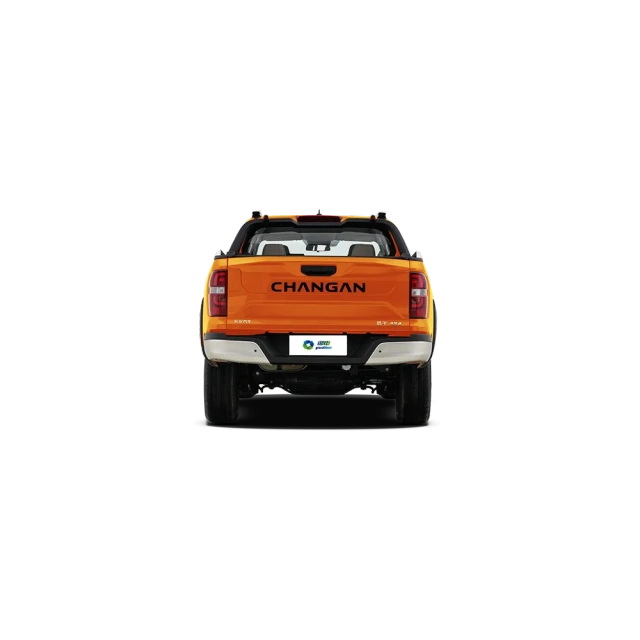

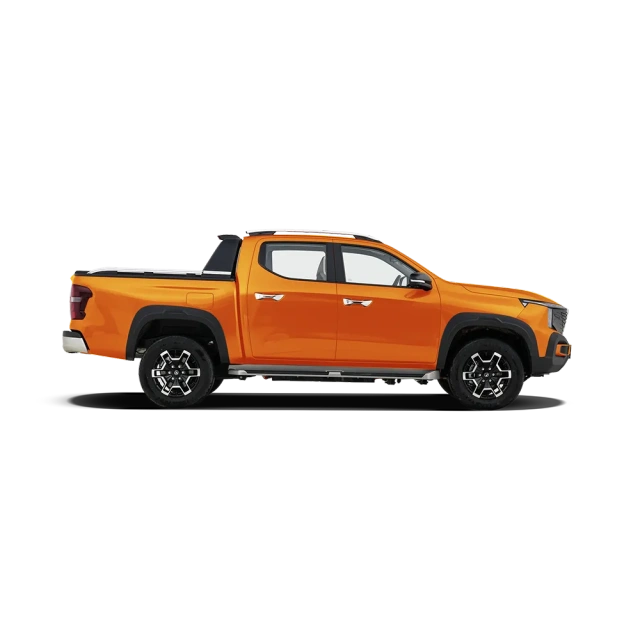

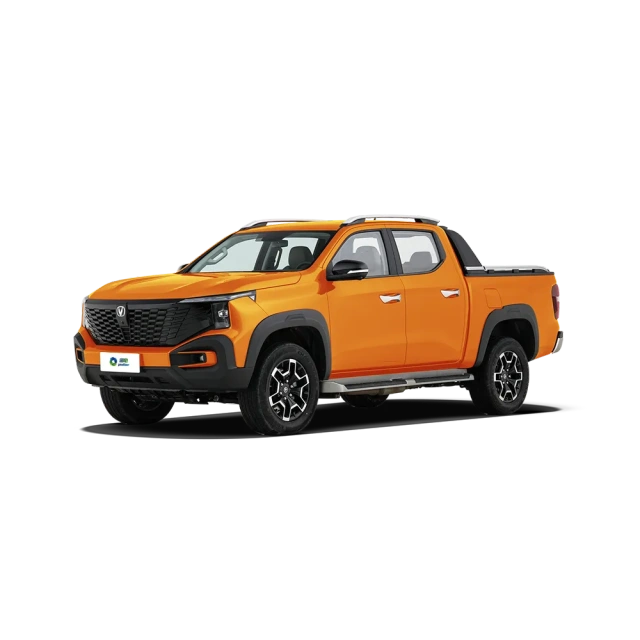

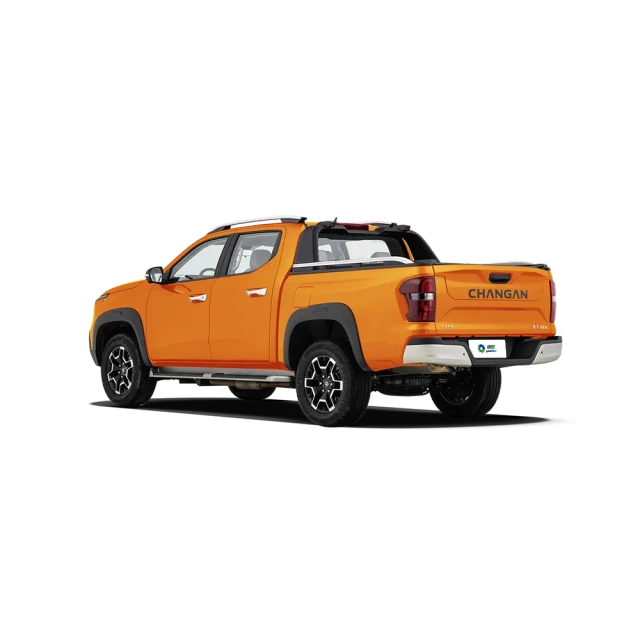

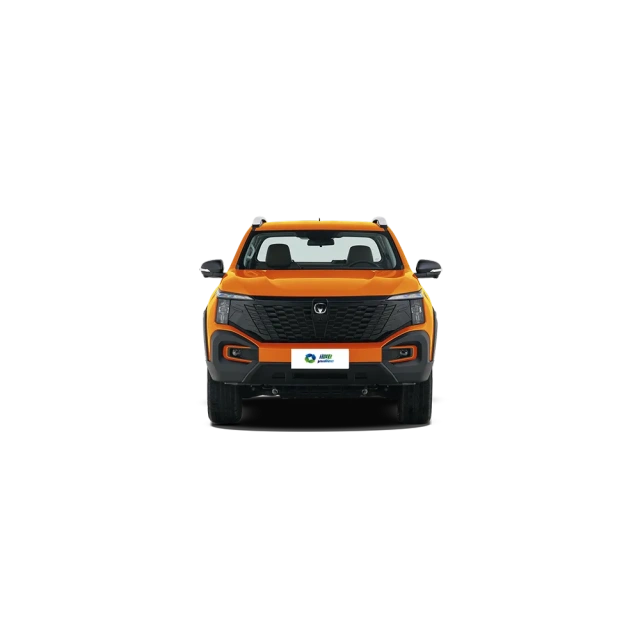

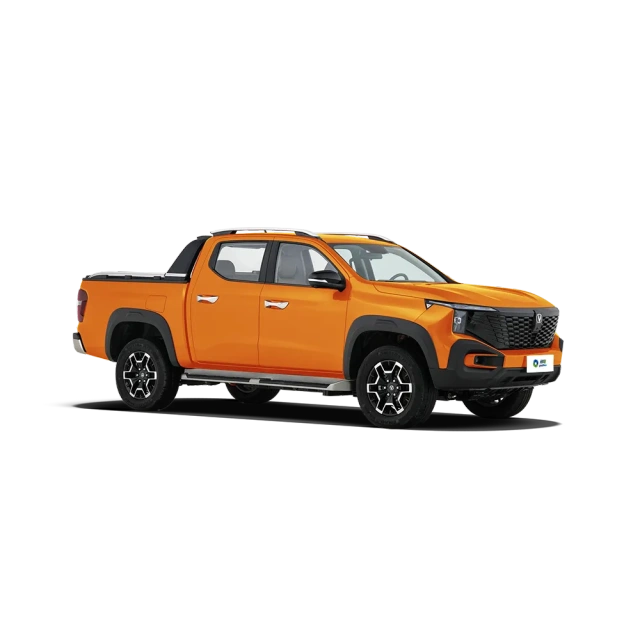

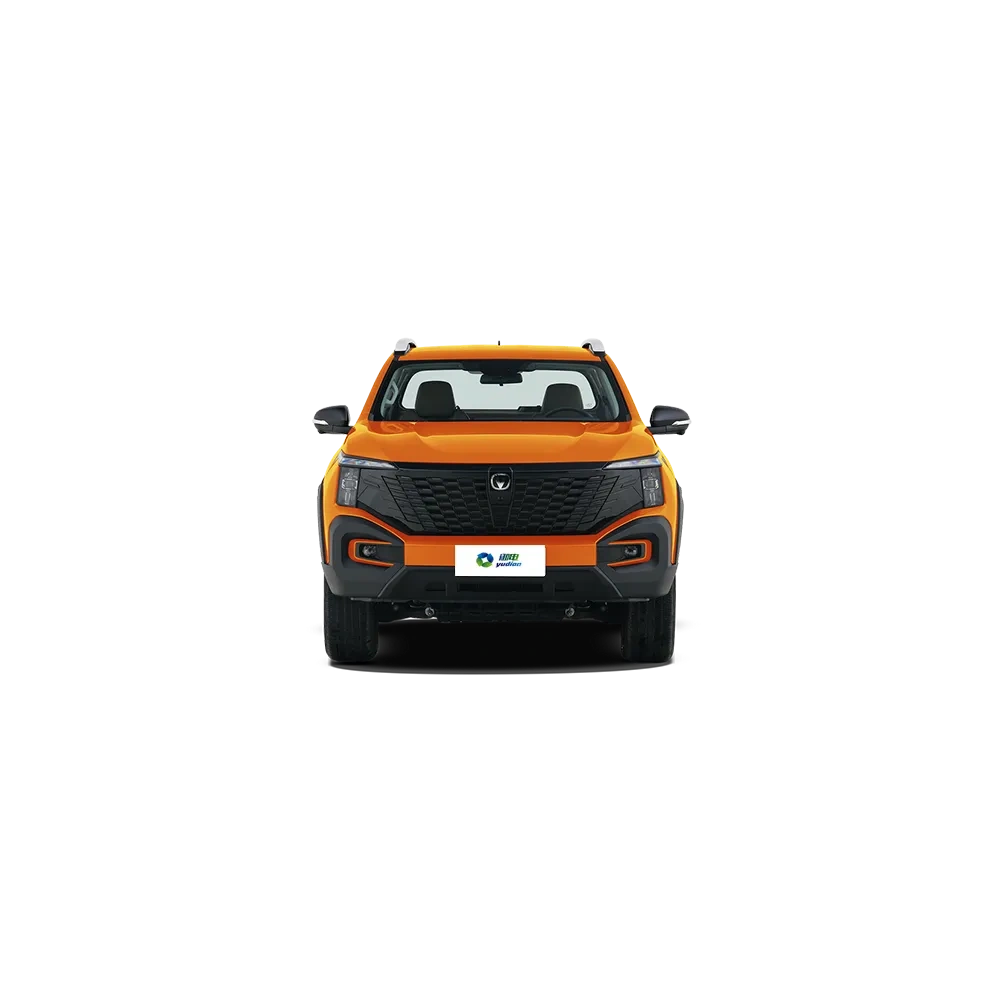

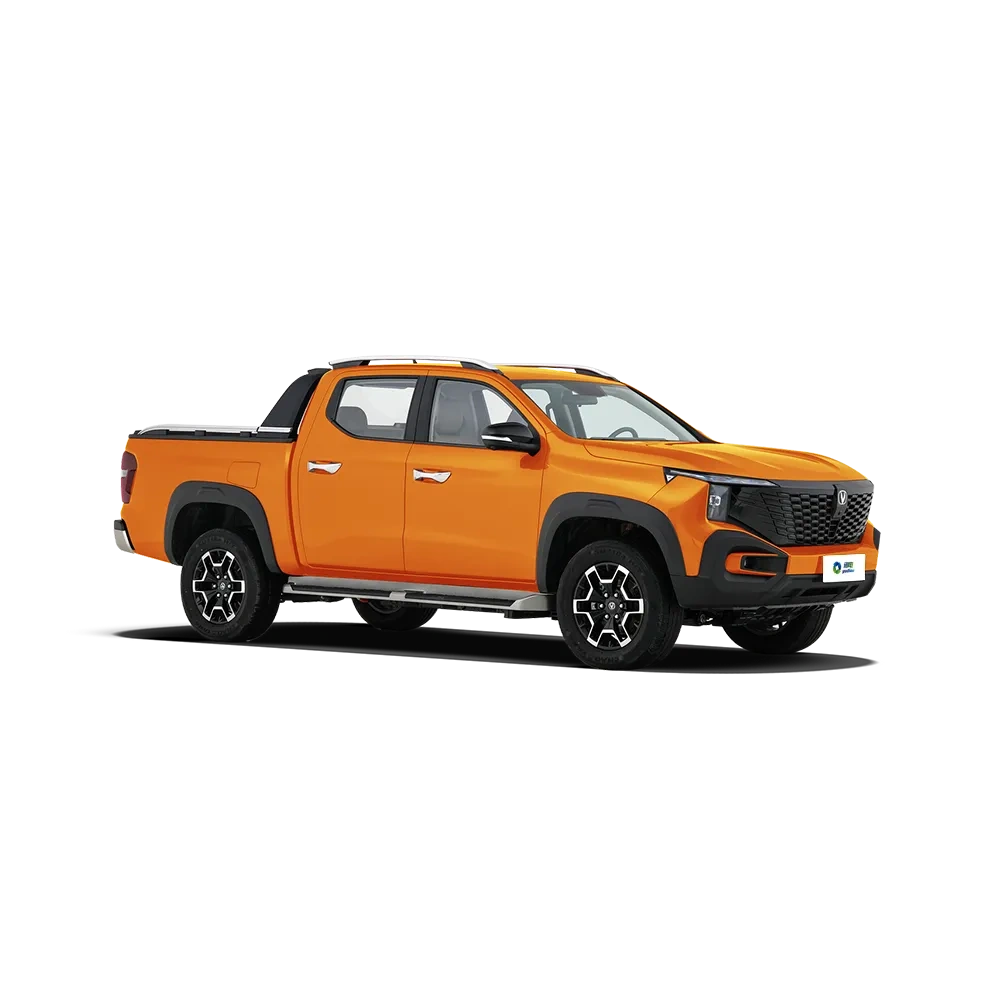

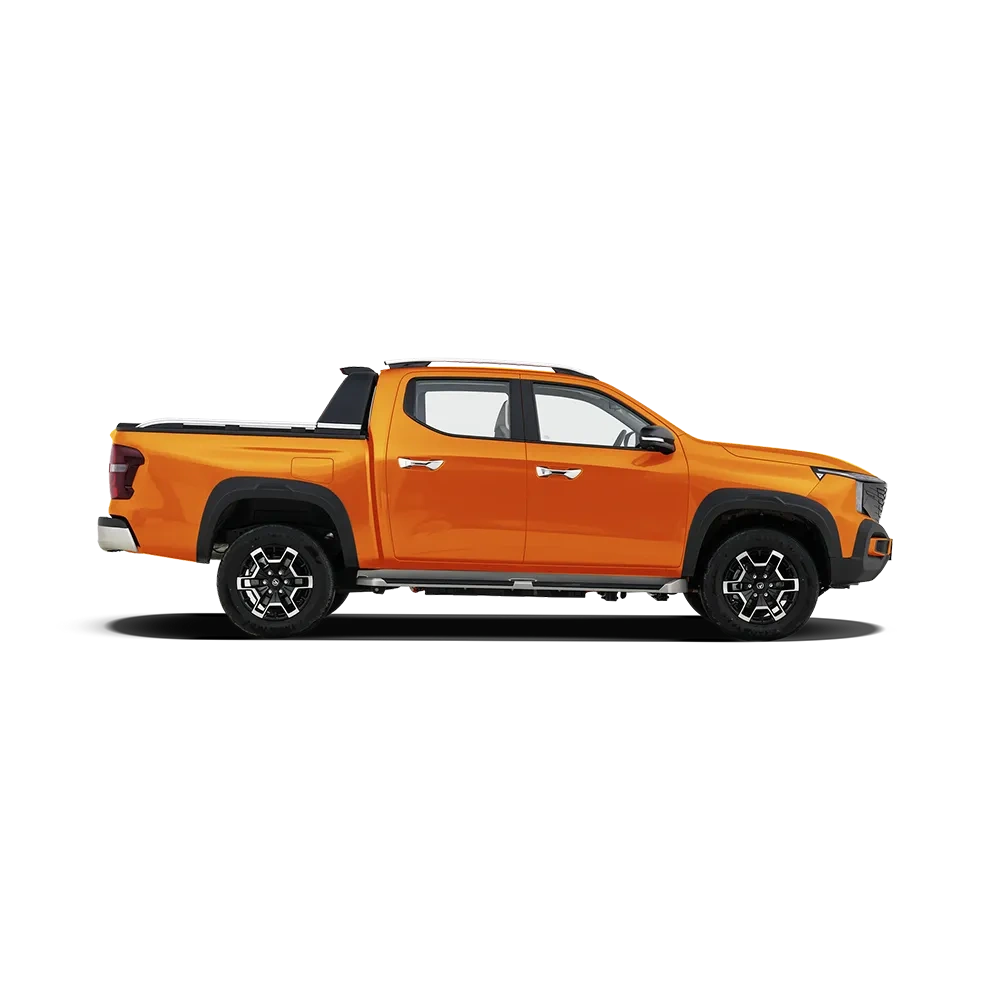

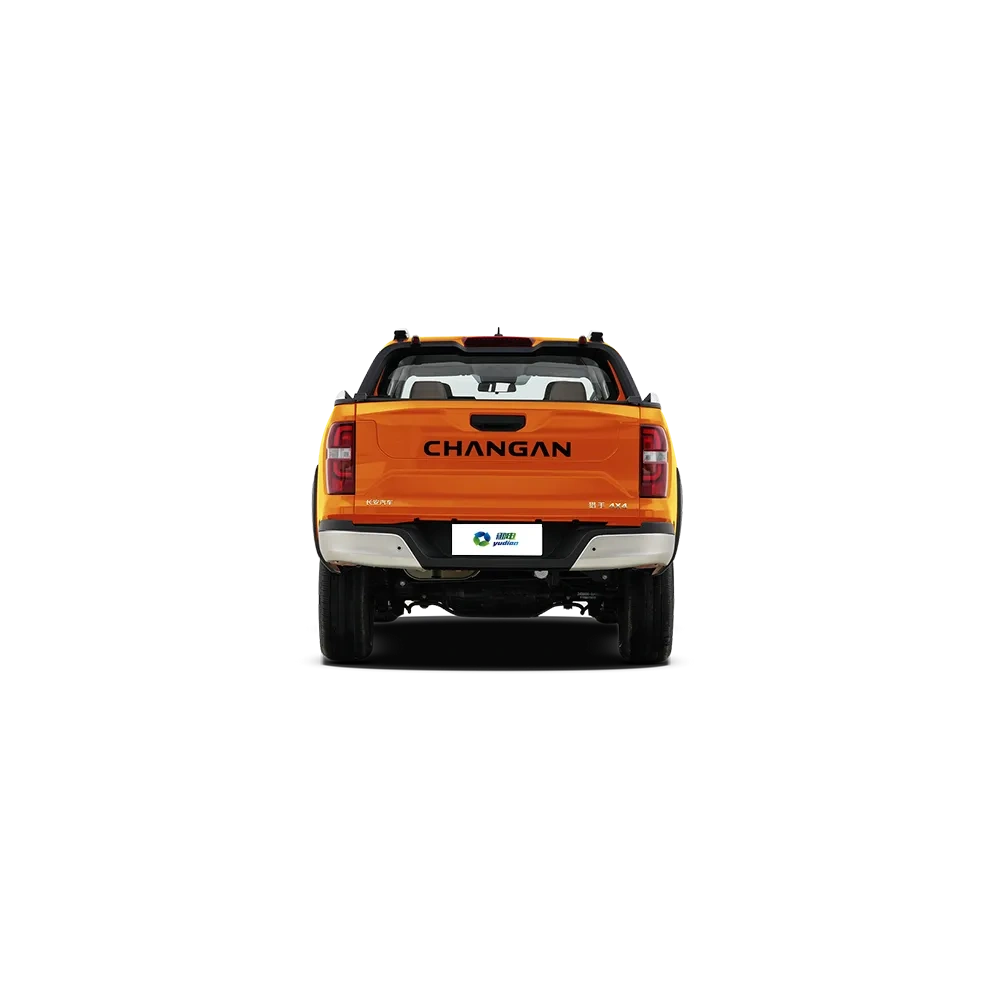

The Changan Hunter has dimensions of 5630mm in length, 1930mm in width, and 1885mm in height. The front and rear track widths are 1610mm and 1630mm, respectively. The vehicle can accommodate 5 people.
The Changan Hunter can run purely on electric power until the battery reaches a minimum of 8%. The range extender will then start charging, allowing the vehicle to run on pure electric power for approximately 15 kilometers.
The Changan Hunter adopts the industry’s first and leading efficient coaxial electric drive axle, integrating the motor, reducer, and axle tube design into one unit. With a lightweight all-aluminum shell design and optimized high-speed bearings, it can meet higher load requirements and improve the efficiency of the motor controller to 94%.
The Changan Hunter has developed the industry’s first “one-key force injection” feature, which efficiently supplements power during long-distance uphill climbs with a load of nearly 1 ton and an altitude difference of over 2000 meters. This ensures that the vehicle has abundant power output in fully loaded conditions, such as climbing long slopes and high-speed driving.
Basic Information |
|||
| Top Speed(km/h) | 160 | - | - |
| Body | |||
| Length (mm) | 5630 | Width (mm) | 1930 |
| Height (mm) | 1885 | Wheelbase(mm) | 3430 |
| Front Track (mm) | 1610 | Rear Track (mm) | 1630 |
| Doors | 4 | Seats | 5 |
| Curb Weight (kg) | 2160/2310 |
-
|
- |
| Engine | |||
|
Displacement (mL)
|
1998 |
Displacement（L）
|
2 |
|
Intake System
|
Turbocharged
|
Engine Layout
|
Longitudinal |
|
Cylinder Arrangement
|
L |
Number of Cylinders
|
4 |
|
Valves per Cylinder
|
4 |
Valve Train System
|
DOHC |
|
Maximum Power (kW)
|
140 |
Maximum Horsepower (PS)
|
190 |
|
RPM at Peak Power
|
4500 |
Maximum Torque (N·m)
|
340 |
|
RPM at Peak Torque
|
2000-3000
|
Fuel Tank Capacity (L)
|
70 |
|
Fuel Grade
|
92 |
Emission Standard
|
China 6 |
|
Electric Motor
|
|||
|
Motor Brand
|
-
|
Number of electric motors
|
Single |
|
Motor Layout
|
Rear/
Front+Rear
|
Motor Type
|
PMSM |
|
Total Motor Power (kW)
|
130/200 | Number of Cylinders | - |
| Valves per Cylinder | - |
Total Motor Torque (N·m)
|
320/470 |
|
Front Motor Max Power (kW)
|
70 |
Front Motor Max Torque (N·m)
|
150 |
|
Battery/Charging
|
|||
|
Battery Type
|
LFP battery
|
Cell Manufacturer
|
Gotion High-tech
|
|
Battery Pack Capacity(kWh)
|
31.18 |
NEDC EV Range(km)
|
131 |
|
DC Fast Charging Time (min)
|
30 |
DC Charging Capacity (%)
|
0-80
|
| Gearbox | |||
| Gears | 1 | Transmission |
Fixed Gear Ratio
|
| Chassis & Suspension | |||
| Drivetrain | RWD/4WD | Front Suspension |
Double Track Control Arm Suspension
|
| Rear Suspension |
Leaf Spring Non-independent Suspension
|
Four Wheel Drive Type
|
Electronic Four Wheel Drive
|
| Tires & Brake | |||
| Front Brake | Ventilated Disc | Rear Brake | Solid Disc |
| Parking Brake | Electronic Parking Brake | Front Tire Specification |
245/70 R17
|
| Rear Tire Specification |
245/70 R17
|
||
| The specifications and configurations provided on this page are for reference only. Actual specifications are subject to the vehicle sold at the dealership. | |||
