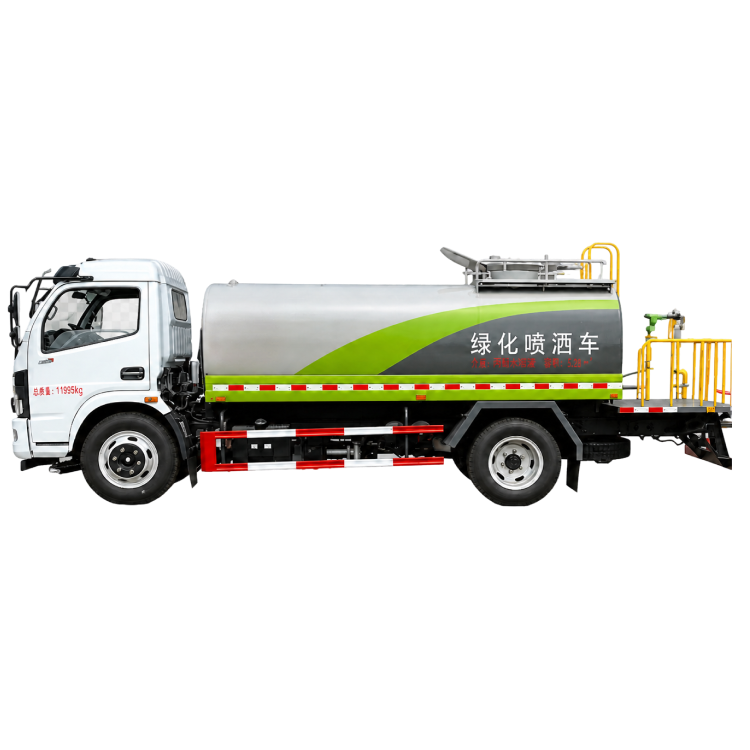

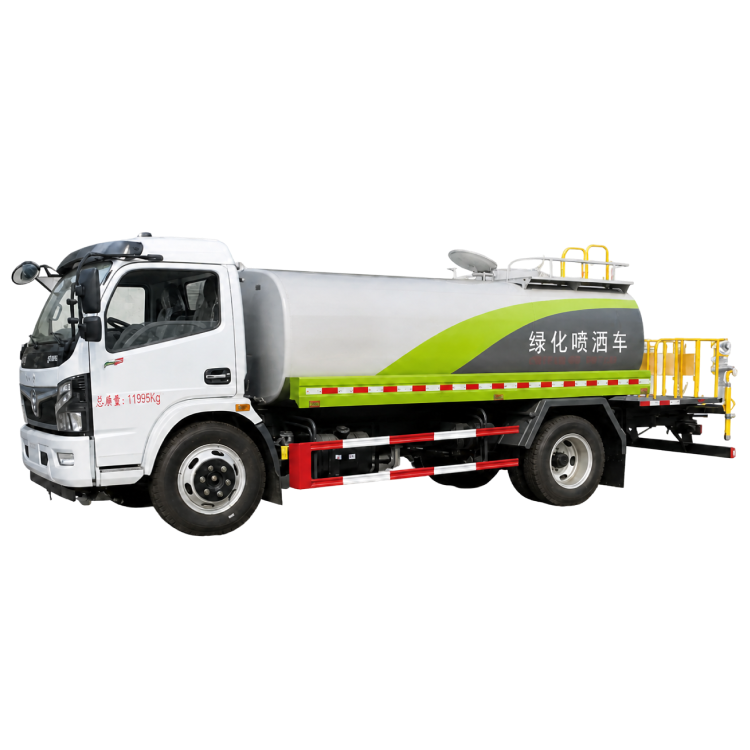

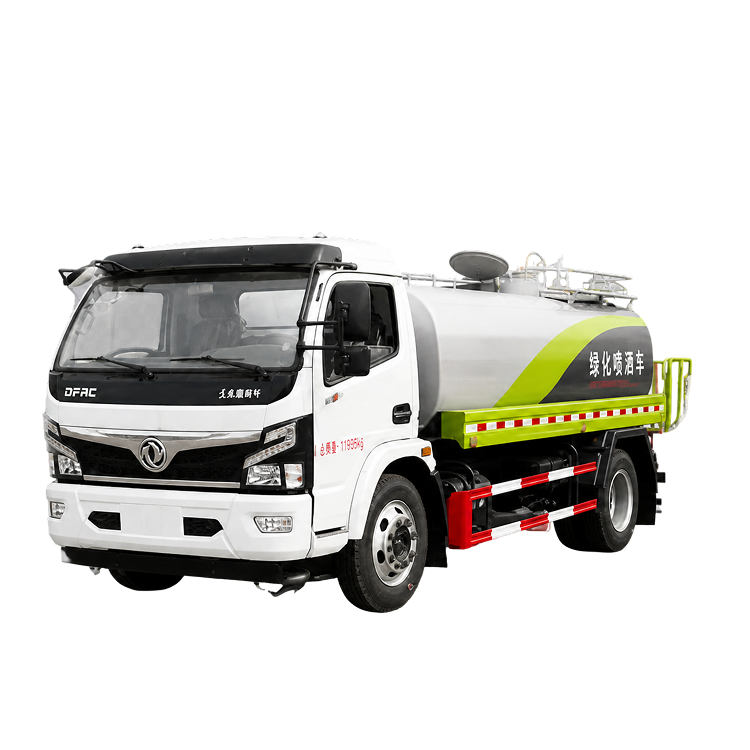

Water Sprinkler Truck D7

Tank Structure & Engineering

• High-Capacity Storage: Offers an official rated volume of 7.62 m³ with an actual usable tank volume of 9.28 m³ (tank dimensions: 4200 × 2000 × 1300 mm).
• Robust Construction: Fabricated using premium Q235 carbon steel featuring a 4mm shell thickness, 5mm dished heads, and 3mm internal anti-surge baffles to ensure structural stability during transit.
• Advanced Piping System: Features an enlarged 76mm main pipeline with seamless, one-piece die-cast aluminum flange tees, cast steel elbow tees, and stainless steel ball valves designed to eliminate weld-seam leaks and ease maintenance.

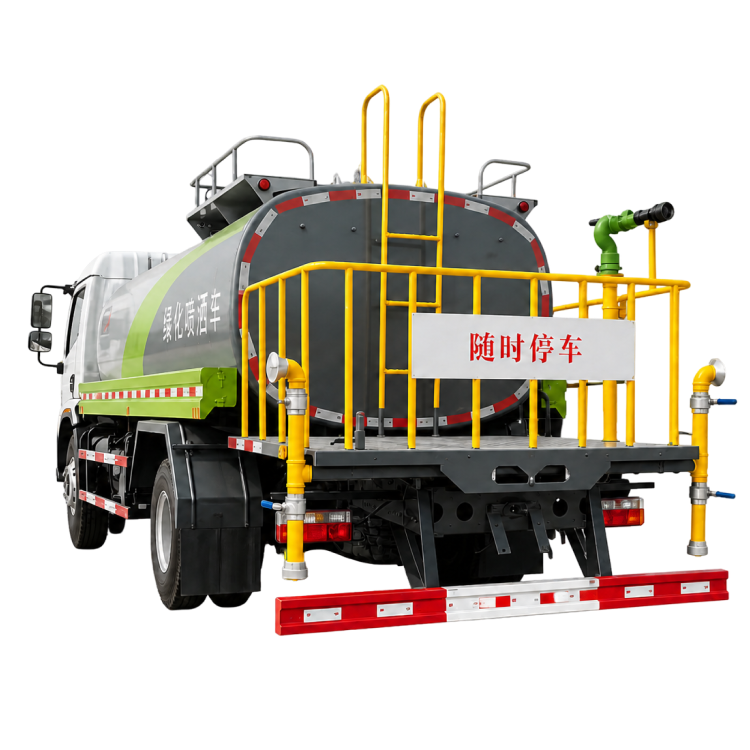

• Enhanced Safety Platform: Built with a heavy-duty, anti-slip punched steel rear working platform that prevents water accumulation and provides safe footing for operators.

Multi-Function Spraying Capabilities

• Standard Coverage: Standard configuration includes front road flushing, rear sprinkling, side sprays, self-priming/self-draining system with filter screen, and standard fire hose connections.

• High-Pressure Water Cannon: Includes an S-type high-pressure water cannon mounted on the rear platform capable of continuous adjustment (solid stream, heavy rain, moderate rain, fine mist) with a maximum vertical/horizontal reach of ≥ 30 meters.
• Performance Metrics: Suction depth ≥ 6 meters, sprinkling width ≥ 16 meters, and cannon range ≥ 30 meters.
• Optional Fog Cannon Unit: Can be upgraded with an independent wind-driven fog cannon powered by an 8KW air-cooled diesel generator, featuring 360-degree rotation, remote control, and a 30m horizontal fog range for dust suppression and disinfectant spraying.
