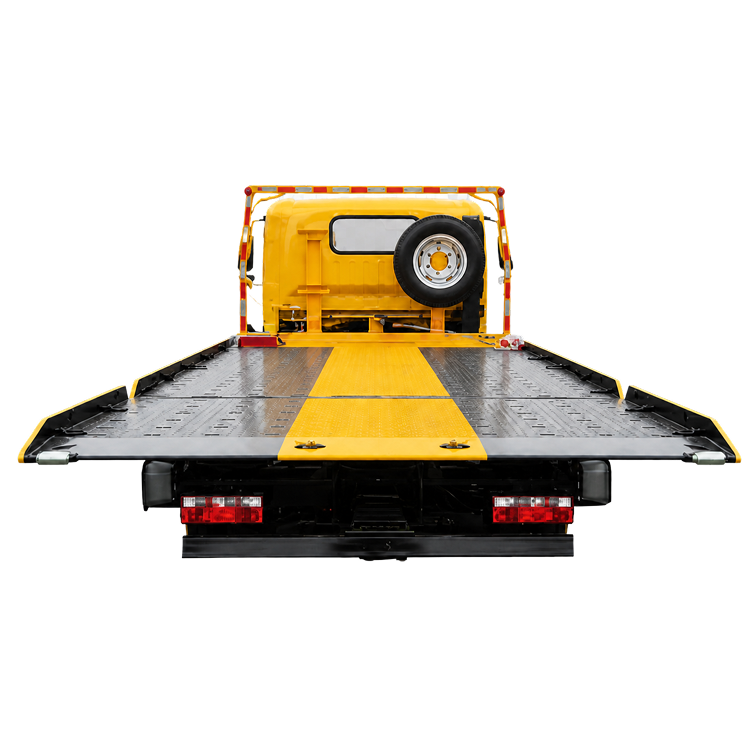

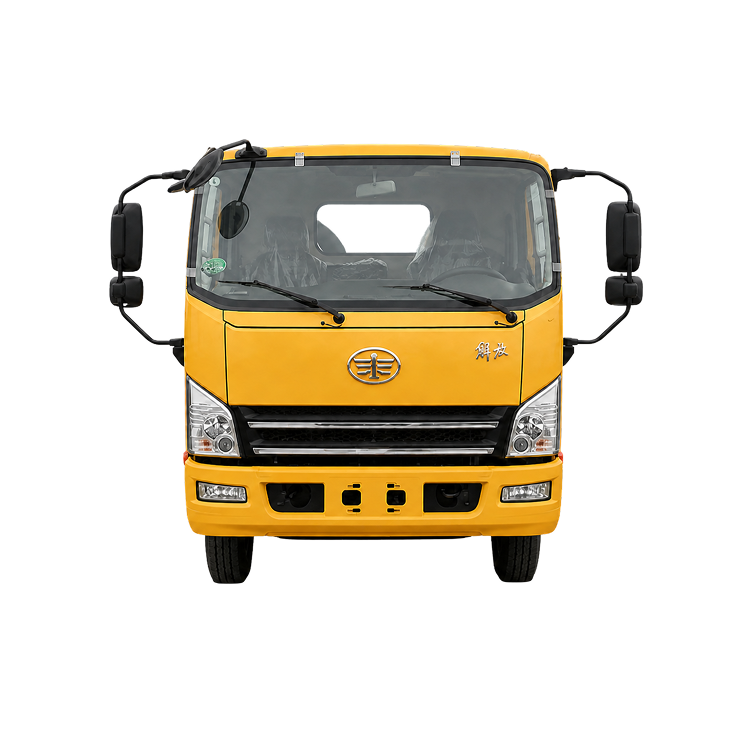

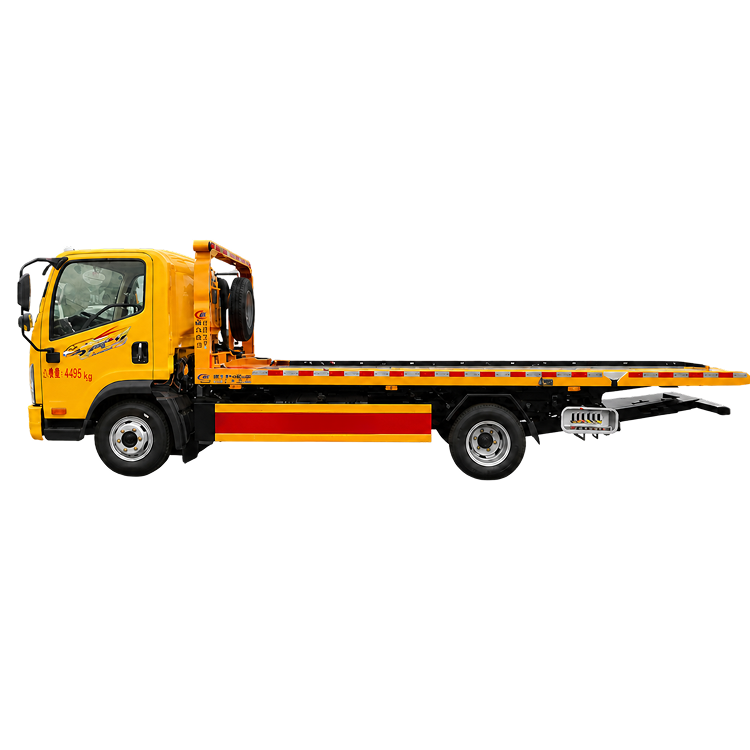

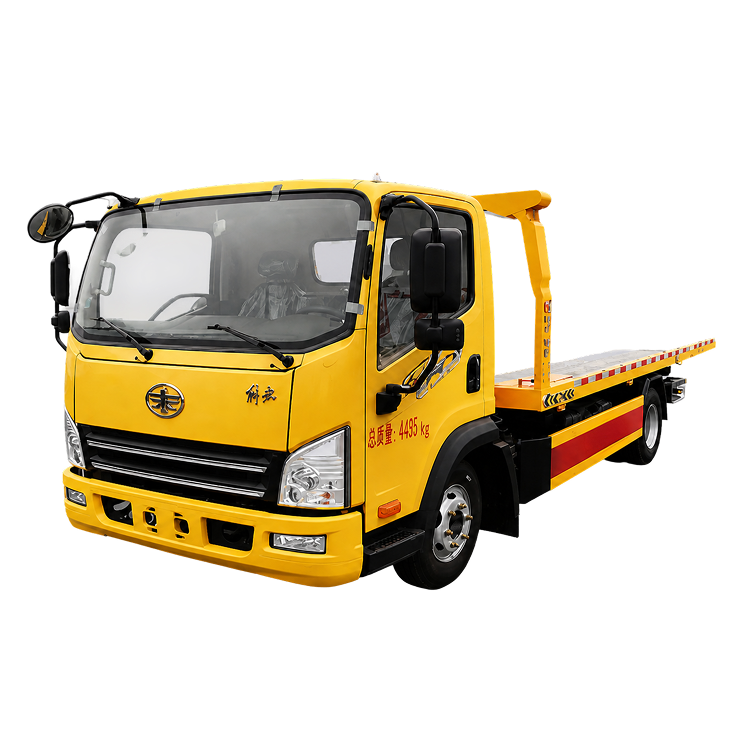

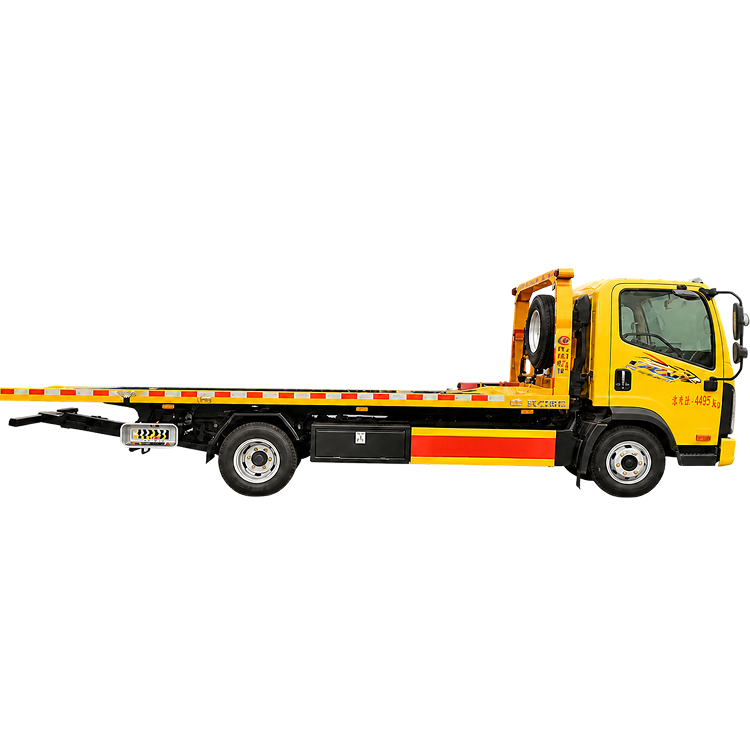

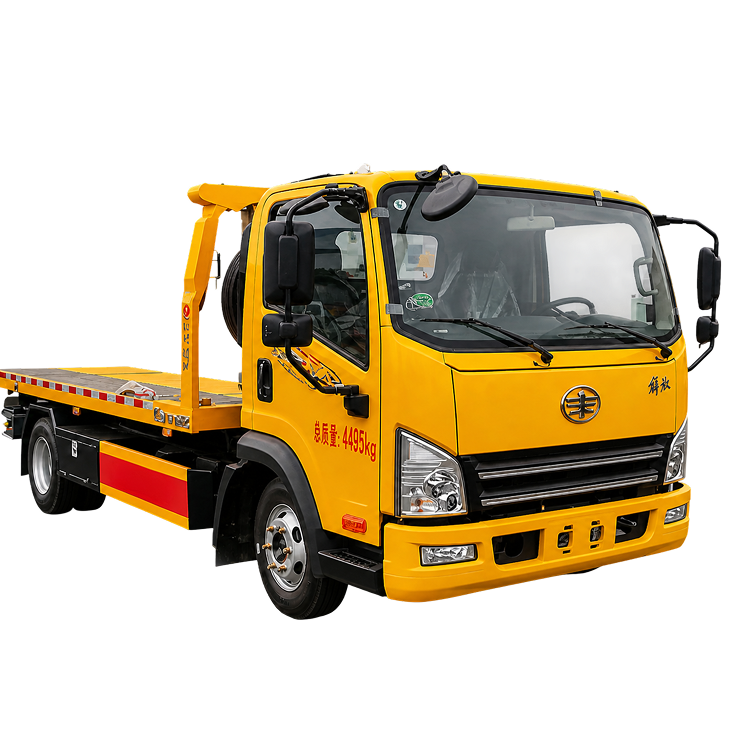

The Flatbed Recovery And Breakdown Truck-Jie Fang (CLW5048TQZC6) is a professional roadside clearance vehicle built on a reliable FAW Jiefang chassis. Powered by a 150 HP Xichai Euro VI diesel engine, it delivers a rated payload capacity of 1,500 kg. Equipped with a heavy-duty flatbed platform and integrated winch, it provides fast, secure vehicle loading and transport without relying on towing or under-lift capabilities.
Designed for municipal traffic management, emergency rescue services, and commercial automotive logistics, the CLW5048TQZC6 FAW Jiefang Wrecker combines high loading efficiency with strong structural integrity. Featuring a medium-width cab, double-layer reinforced frame, and air-suspension seating, it offers comfortable long-distance towing operations and high operational reliability.
Flatbed Deck & Winch: Dedicated flatbed surface paired with a high-capacity recovery winch, purpose-built for loading and hauling immobilized light vehicles up to 1,500 kg.
Versatile Platform Configurations: Supports customizable deck styles including extendable decks, flip-up plates, integrated platforms, and solid panel (no-hole) deck surfaces.
Custom Layouts: Flexible mounting configurations for the fuel tank, urea tank, and battery to fit varied fleet operational preferences.
Durable Powertrain: Equipped with a 150 HP Xichai engine, Wanliyang 6-speed transmission, a 4.333 rear axle ratio, and 7.00R16 steel-belted radial tires for optimal torque delivery and fuel economy.
Reinforced Structure: Built on a dedicated wrecker chassis with a 180mm double-layer frame (5+5mm) and a 120L plastic fuel tank.
Cab Comfort & Controls: Includes an air-suspension seat, multi-function steering wheel, air conditioning, power windows, central locking, and an electronically controlled air horn.
Protective Guards: Outfitted with Q235A carbon steel side guards (welded or optional bolted connections) and a welded rear underrun guard (100×50 mm cross-section with 400 mm ground clearance).
| Category | Specification | Parameter / Detail |
|---|---|---|
| Vehicle Specifications | Product Name | Flatbed Recovery And Breakdown Truck-Jie Fang |
| Product Model | CLW5048TQZC6 | |
| Gross Mass (GVW) | 4,495 kg | |
| Rated Payload | 1,500 kg | |
| Curb Weight | 2,800 kg (3 seats) / 2,865 kg (2 seats) | |
| Overall Dimensions | 5995 × 2300–2500 × 2230–2750 mm | |
| Cab Seating Capacity | 2 or 3 passengers | |
| Maximum Speed | 110 km/h | |
| Chassis & Powertrain | Chassis Model & Name | CA1043P40K50L2BE6A84 Cargo Truck Chassis |
| Engine & Transmission | Xichai 150 HP Diesel Engine | Wanliyang 6-speed Transmission | |
| Fuel Type & Emission Standard | Diesel Fuel | GB17691-2018 National VI | |
| Wheelbase Options | 3300, 3600, 3800 mm | |
| Tires & Axles | 2 Axles / 6 Tires (7.00R16, 7.00R16LT, 6.50R16LT) | |
| Frame & Fuel Tank | 180mm double-layer frame (5+5mm) | 120L plastic fuel tank | |
| Approach / Departure Angle | 14 / 20°, 14 / 21° | |
| Recovery Equipment & Underrun | Specialized Equipment | Flatbed mechanism, hydraulic winch (no towing or lifting function) |
| Deck Options | Extendable plate, flip-up plate, integrated plate, solid panel style | |
| Underrun Protection | Q235A carbon steel side (welded/bolted) & rear guard (100×50mm, 400mm clearance) |
