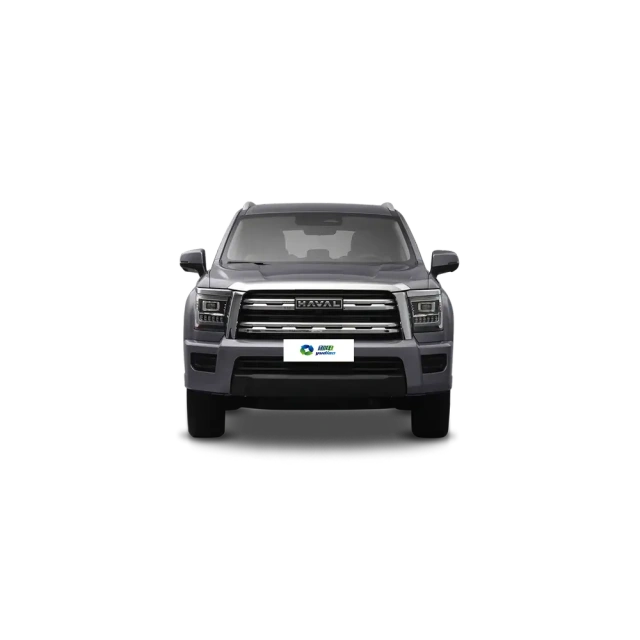

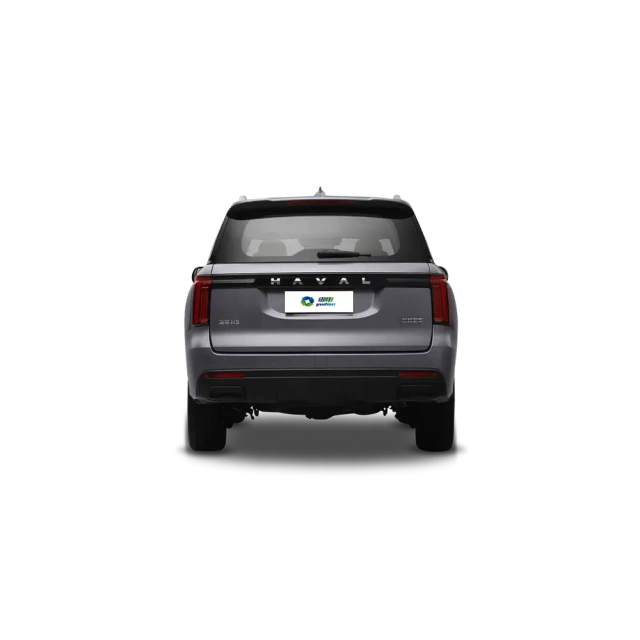

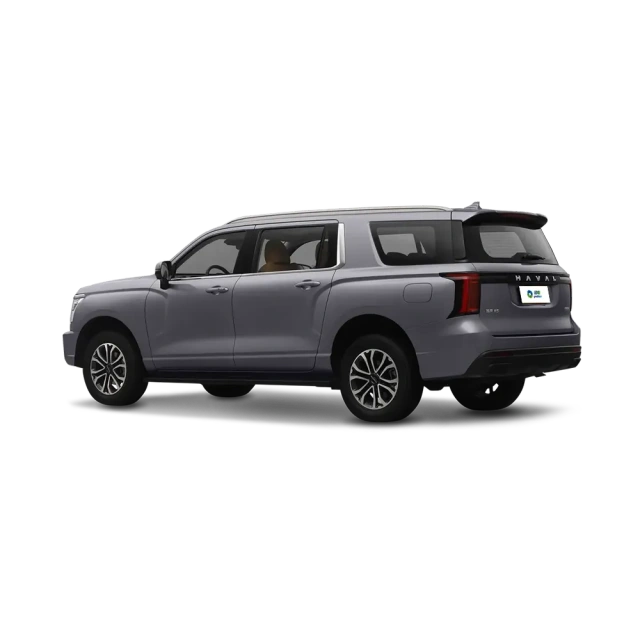

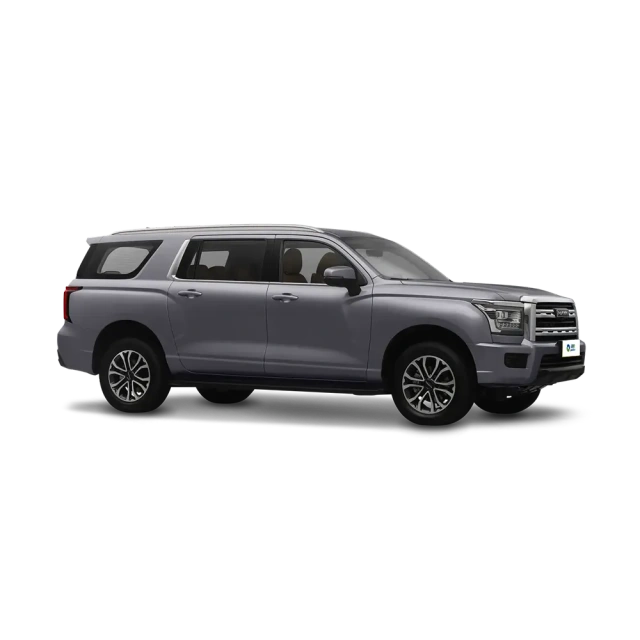

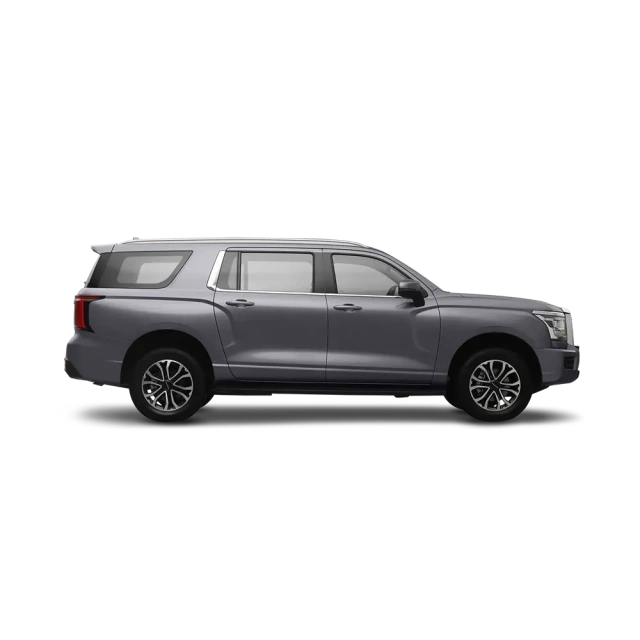

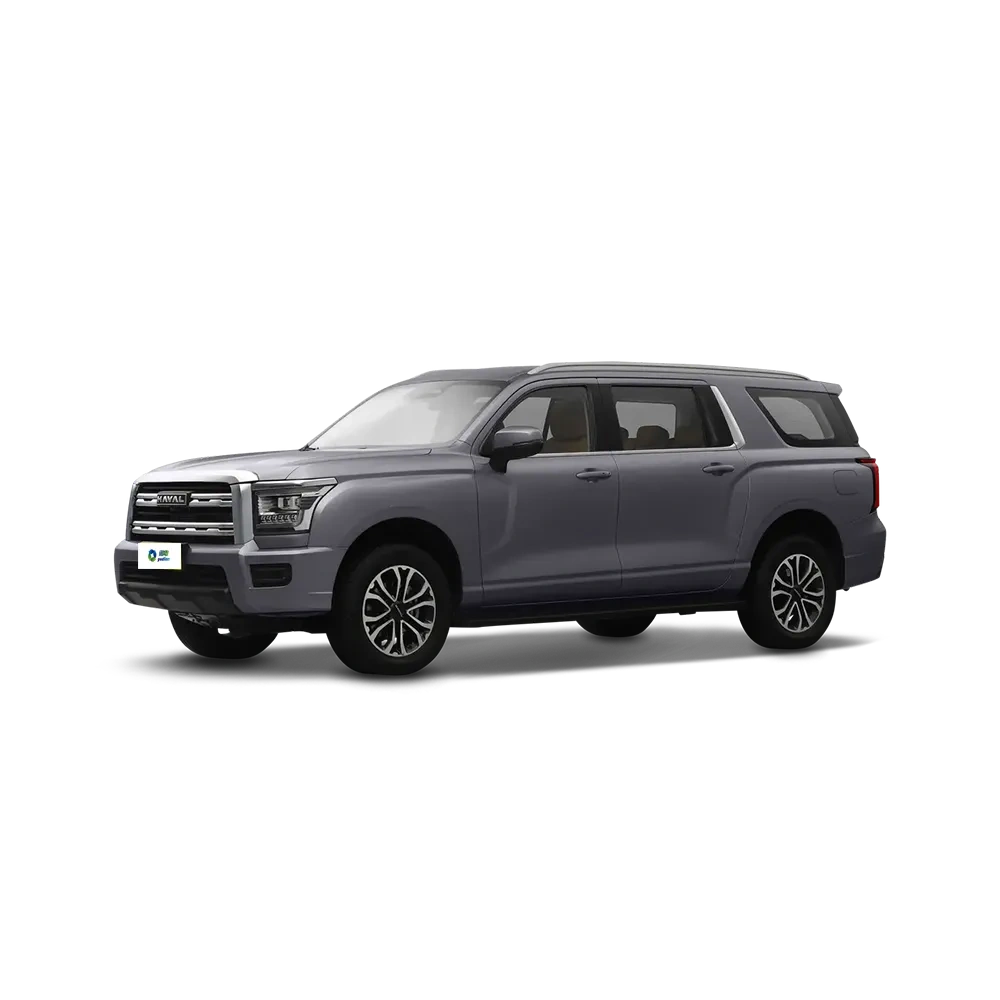

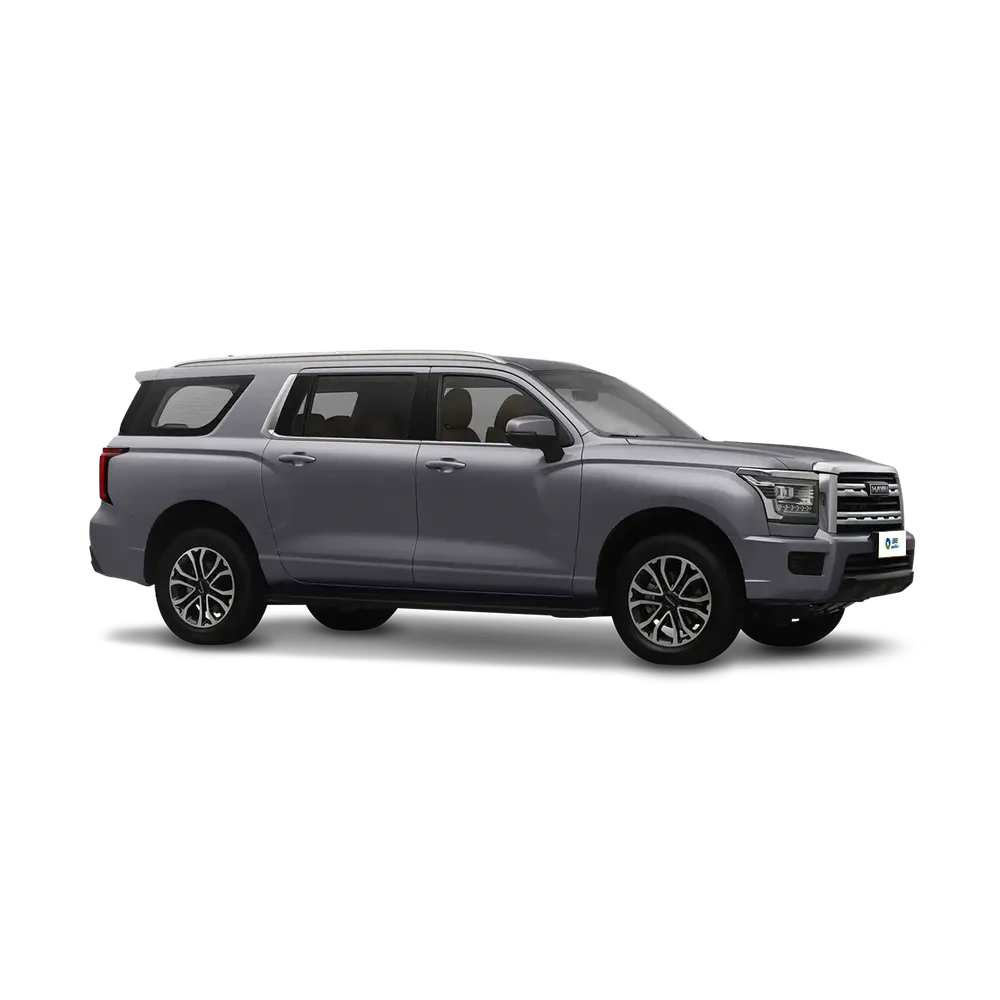

The Haval H5 has dimensions of 5190 mm in length, 1905 mm in width, and 1680 mm in height. The wheelbase is 3140 mm, and the front and rear track widths are both 1574 mm. The vehicle can accommodate 5 people.
The Haval H5 is equipped with a ZF 8-speed automatic transmission, turbocharged, direct injection, and a maximum horsepower of 224 Ps. It is equipped with a dual-speed electronic control part-time system and an Eaton mechanical differential lock for excellent off-road capability.
The Haval H5 features a panoramic sunroof with a lighting area of 613×726 mm at the front and 466×728 mm at the rear. It can be opened and closed with one touch and has an anti-pinch function, providing a clear and wide view.
Basic Information |
|||
| Top Speed(km/h) | 170 | WLTC Fuel Economy(L/100km) | 9.6 |
| Body | |||
| Length (mm) | 5190 | Width (mm) | 1905 |
| Height (mm) | 1835 | Wheelbase(mm) | 3140 |
| Front Track (mm) | 1574 | Rear Track (mm) | 1574 |
| Doors | 5 | Seats | 5 |
| Curb Weight (kg) | 2120 | - | - |
| Engine | |||
| Displacement (mL) | 1967 | Displacement（L） | 2.0 |
| Intake System | Turbocharged | Engine Layout | Longitudinal |
| Cylinder Arrangement | L | Number of Cylinders | 4 |
| Valves per Cylinder | 4 | Valve Train System | DOHC |
| Maximum Power (kW) | 165 | Maximum Horsepower (PS) | 224 |
| RPM at Peak Power | 5500 | Maximum Torque (N·m) | 385 |
| RPM at Peak Torque |
1800-3600
|
Fuel Tank Capacity (L) | 80 |
| Fuel Grade | 92 | Emission Standard | China 6 |
| Gearbox | |||
| Gears | 8 | Transmission | AT |
| Chassis & Suspension | |||
| Drivetrain | 4WD | Front Suspension |
Double Track Control Arm Suspension
|
| Rear Suspension |
5-link Integral Bridge Non-independent Suspension
|
Four Wheel Drive Type
|
Part-Time Four-Wheel Drive
|
| Tires & Brake | |||
| Front Brake | Ventilated Disc | Rear Brake |
Ventilated Disc
|
| Parking Brake | Electronic Parking Brake | Front Tire Specification |
245/65 R17
|
| Rear Tire Specification | 245/65 R17 | ||
| The specifications and configurations provided on this page are for reference only. Actual specifications are subject to the vehicle sold at the dealership. | |||
