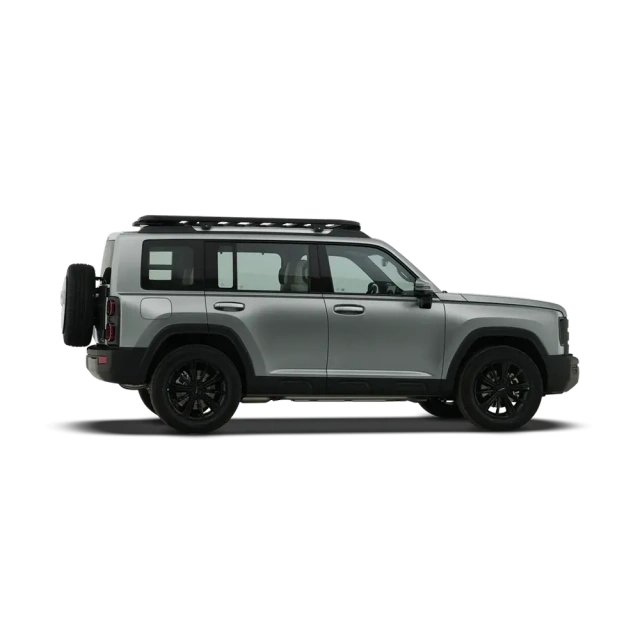

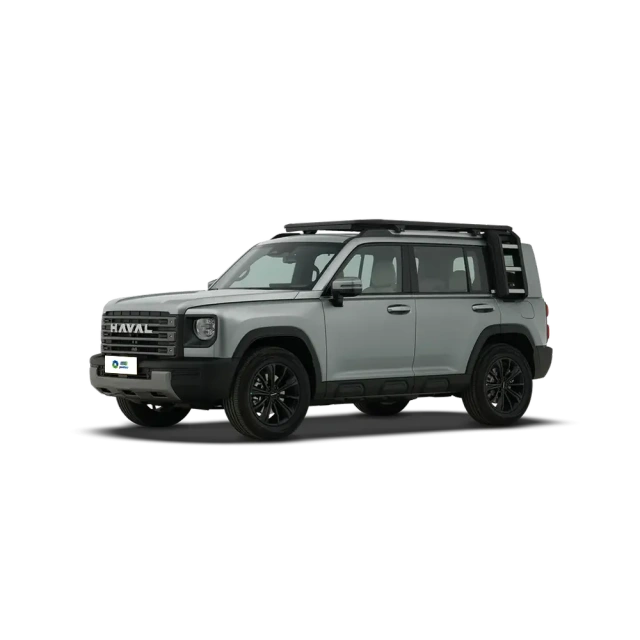

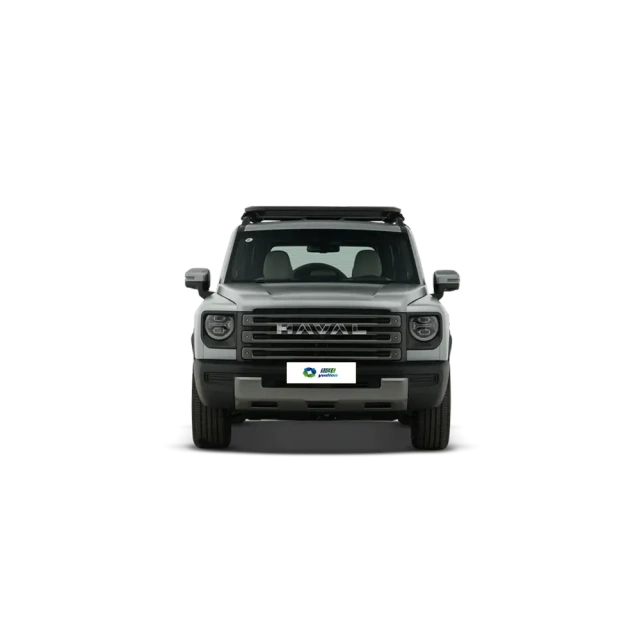

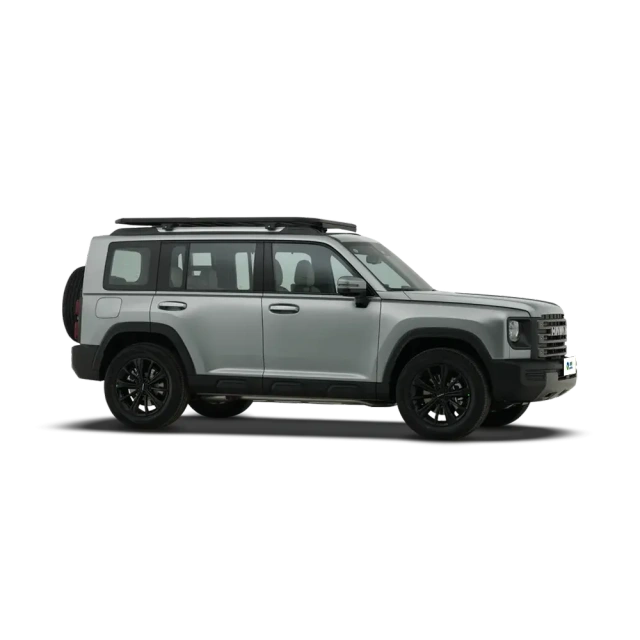

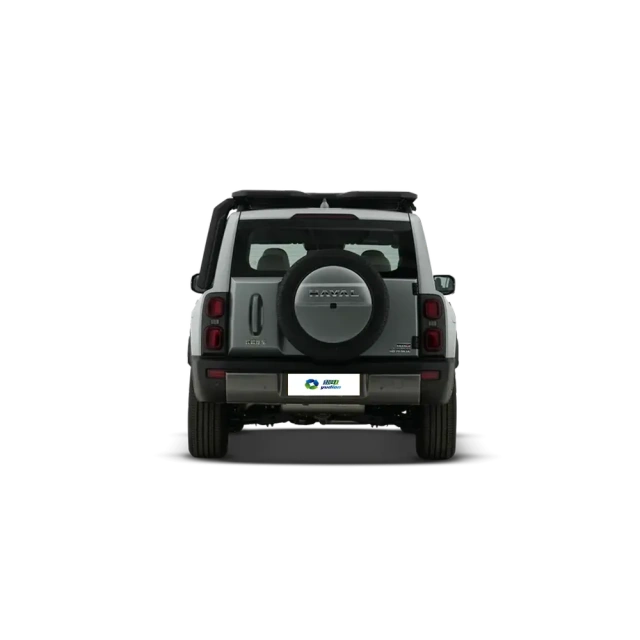

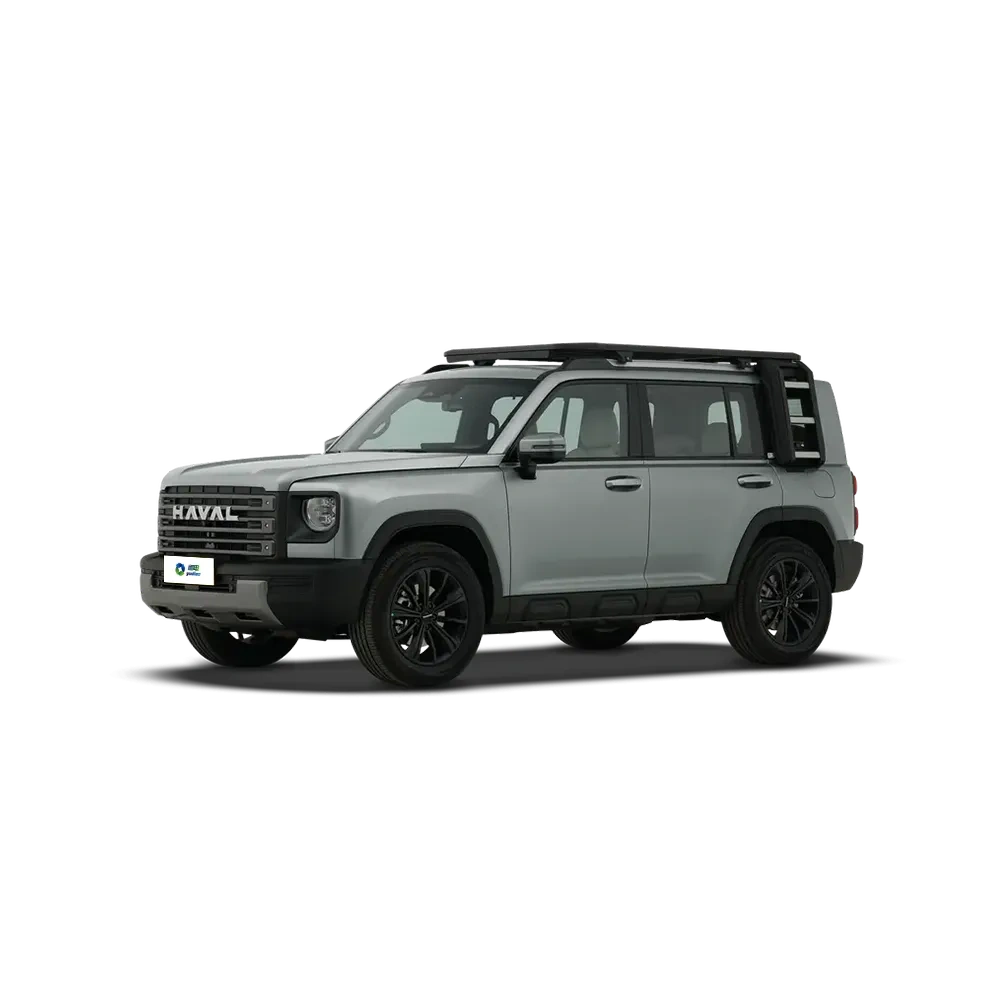

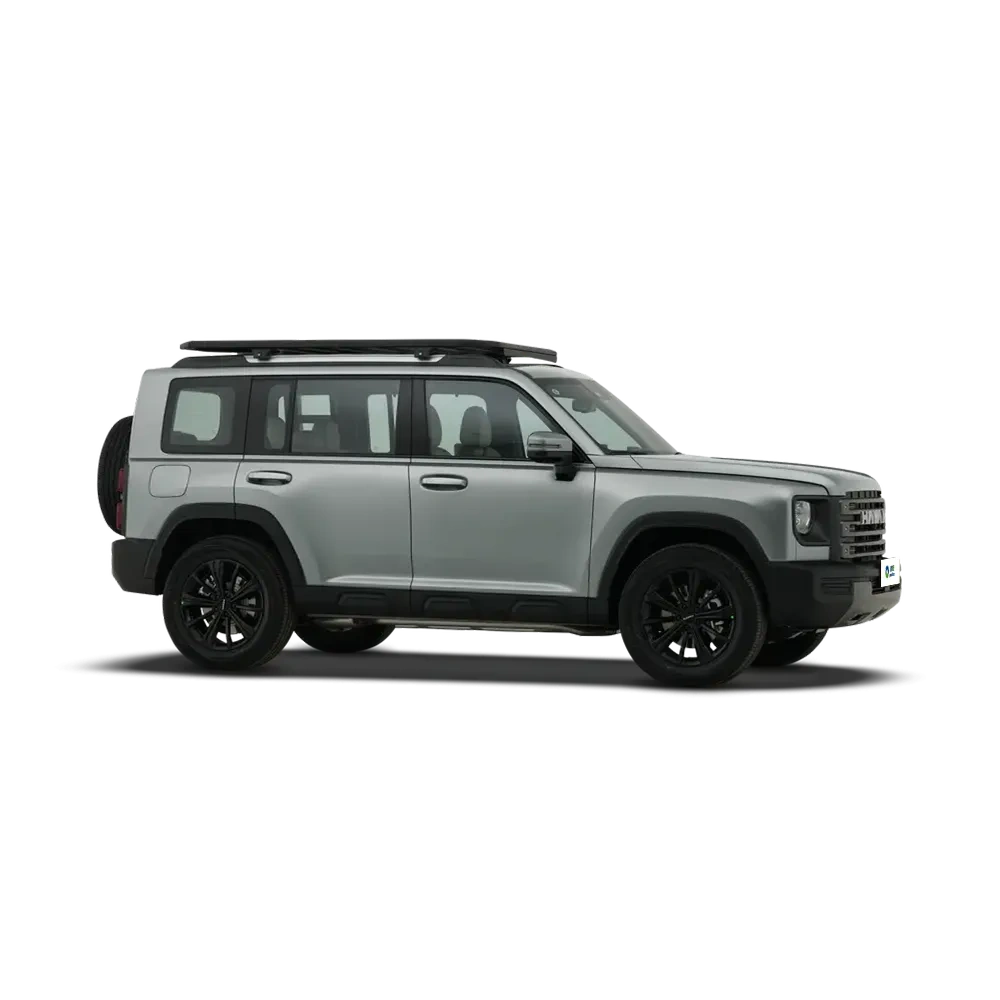

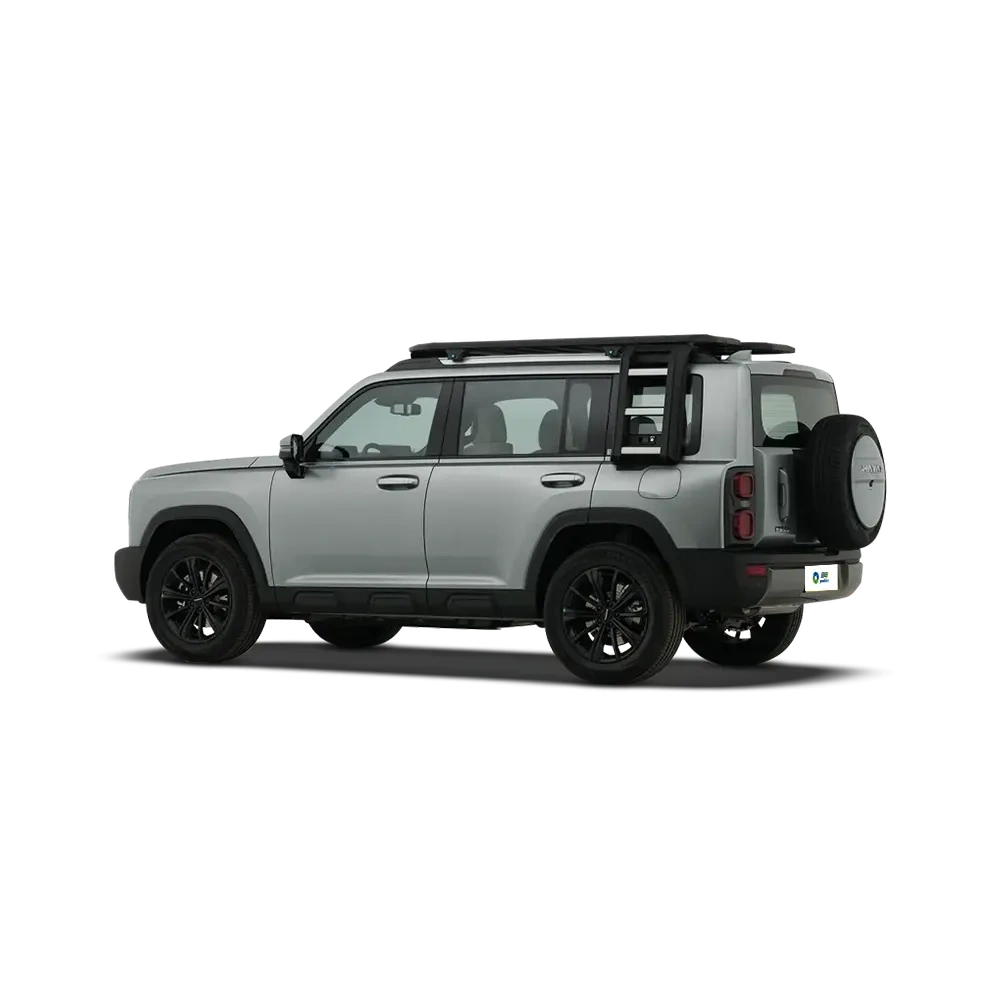

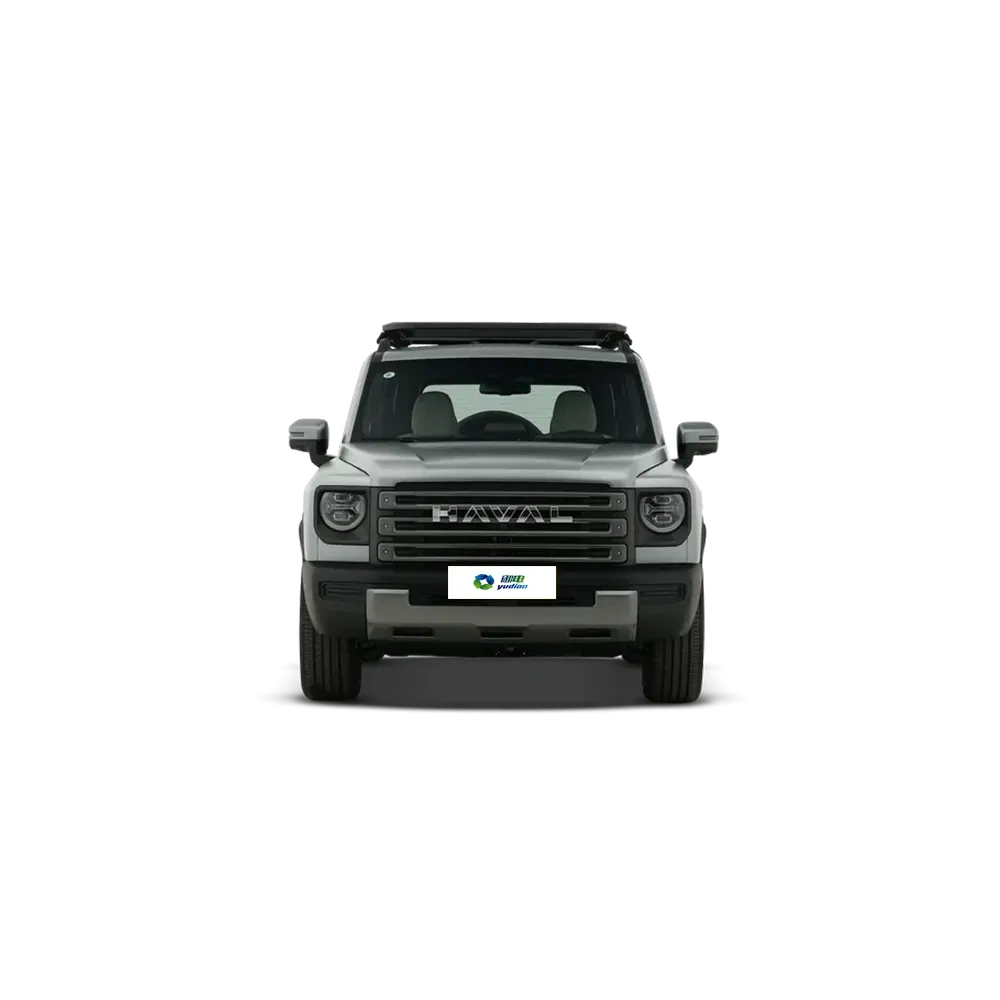

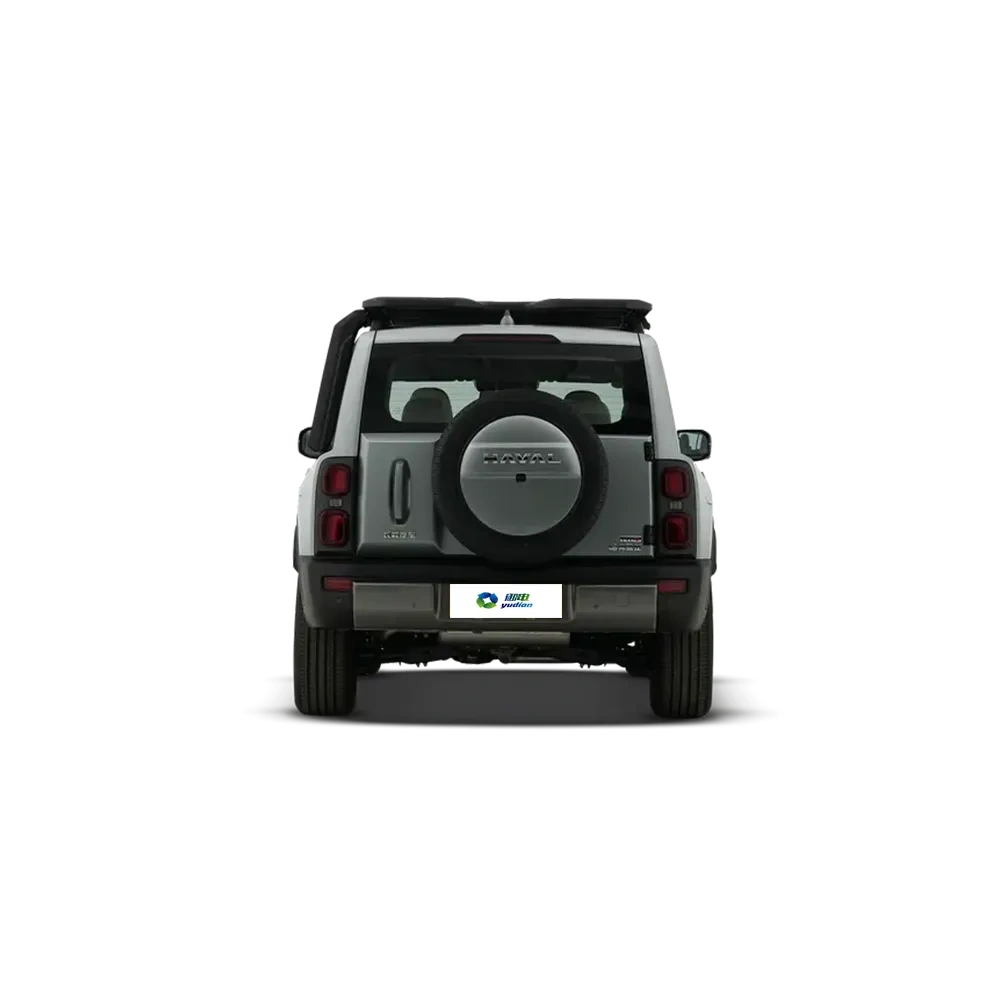

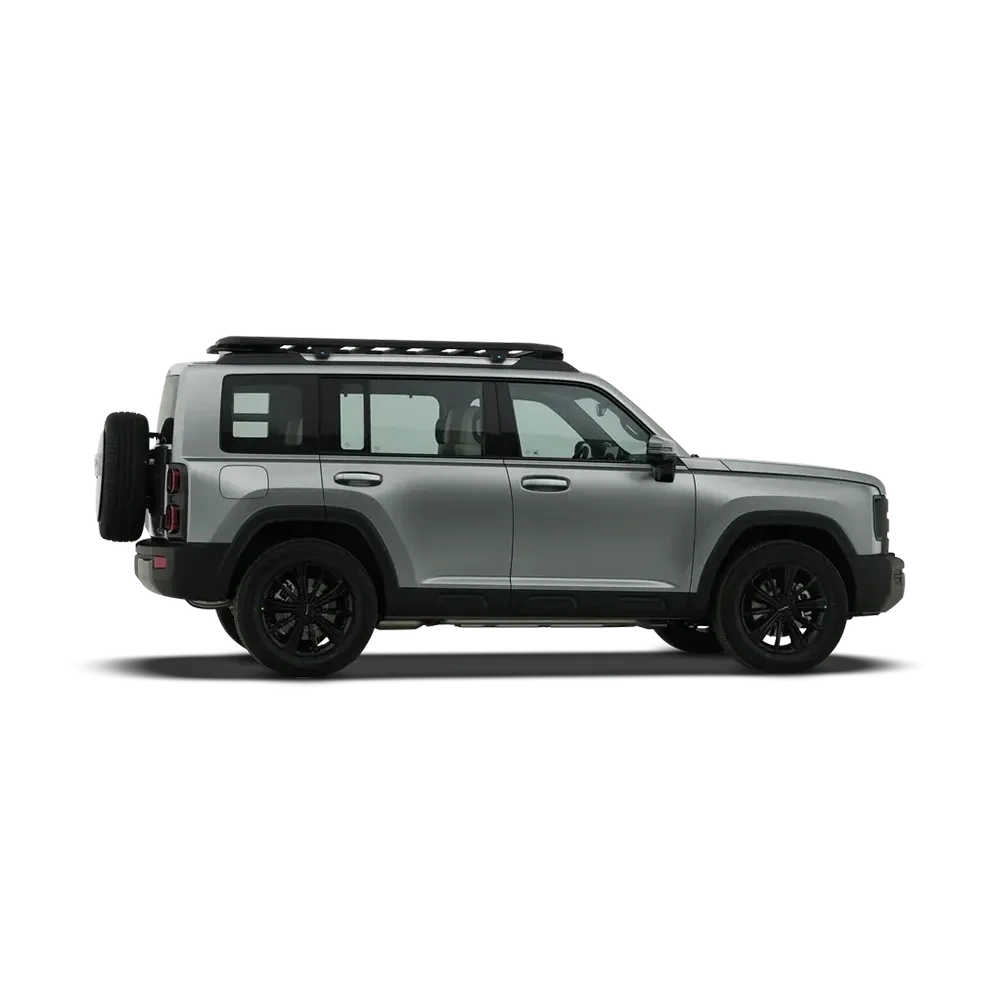

The dimensions of the Haval Raptor PHEV are 4800×1916×1822 mm, with a wheelbase of 2738 mm. The front and rear track widths are 1641 mm and 1640 mm respectively. The car can accommodate 5 people.
The Haval Raptor PHEV has a body with a high proportion of high-strength steel (72.1%), advanced high-strength steel (25.7%), and a body sheet steel strength of 2000 MPa. It also has a body torsional stiffness of 31272 Nm/°, making it a higher standard and safer SUV.
The Haval Raptor PHEV features a high-performance battery with efficient direct cooling and an LCTP high cell grouping rate system integration solution, ensuring that the battery operates within the optimal temperature range.
Basic Information |
|||
| Top Speed(km/h) | 190 | Acceleration 0-100km (s) | 6.2/6 |
|
WLTC Fuel Economy(L/100km)
|
1.15/1.68 | - | - |
| Body | |||
| Length (mm) | 4800 | Width (mm) | 1950 |
| Height (mm) | 1843 | Wheelbase(mm) | 2738 |
| Front Track (mm) | 1641 | Rear Track (mm) | 1640 |
| Doors | 5 | Seats | 5 |
| Curb Weight (kg) | 2135/2055 |
Trunk Capacity (L)
|
586-1404
|
| Engine | |||
|
Displacement (mL)
|
1499 |
Displacement（L）
|
1.5 |
|
Intake System
|
Turbocharged |
Engine Layout
|
Transverse |
|
Cylinder Arrangement
|
L |
Number of Cylinders
|
4 |
|
Valves per Cylinder
|
4 |
Valve Train System
|
DOHC |
|
Maximum Power (kW)
|
123 |
Maximum Horsepower (PS)
|
167 |
|
RPM at Peak Power
|
5500-6000
|
Maximum Torque (N·m)
|
243 |
|
RPM at Peak Torque
|
1500-4000
|
Fuel Tank Capacity (L)
|
55 |
|
Fuel Grade
|
92 |
Emission Standard
|
China 6 |
|
Electric Motor
|
|||
|
Motor Brand
|
F: TZ220XS011/R: TZ220XS008
|
Number of electric motors
|
Dual |
|
Motor Layout
|
Front+Rear
|
Motor Type
|
PMSM |
|
Total Motor Power (kW)
|
220 | Number of Cylinders | - |
| Valves per Cylinder | - |
Total Motor Torque (N·m)
|
510 |
|
Front Motor Max Power (kW)
|
70 |
Front Motor Max Torque (N·m)
|
160 |
|
Battery/Charging
|
|||
|
Battery Type
|
LFP battery
|
Cell Manufacturer
|
Svolt/
Svolt/CATL
|
|
Battery Pack Capacity(kWh)
|
27.54/18.74
|
NEDC EV Range(km)
|
145/102 |
|
DC Fast Charging Time (min)
|
28 |
DC Charging Capacity (%)
|
30-80
|
| Gearbox | |||
| Gears | 2 | Transmission |
DHT
|
| Chassis & Suspension | |||
| Drivetrain | 4WD | Front Suspension | MacPherson Independent Suspension |
| Rear Suspension |
Multi-Link Independent Suspension
|
Four Wheel Drive Type
|
Electronic Four Wheel Drive
|
| Tires & Brake | |||
| Front Brake | Ventilated Disc | Rear Brake |
Ventilated Disc
|
| Parking Brake | Electronic Parking Brake | Front Tire Specification |
255/60 R19
|
| Rear Tire Specification |
255/60 R19
|
||
| The specifications and configurations provided on this page are for reference only. Actual specifications are subject to the vehicle sold at the dealership. | |||
