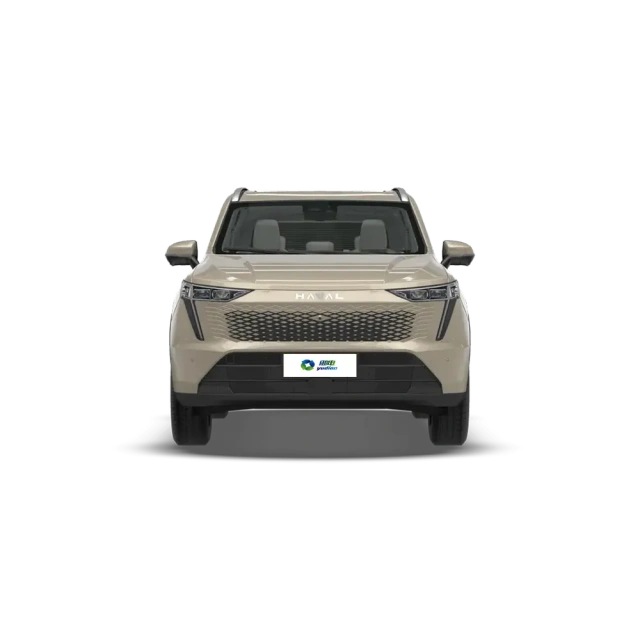

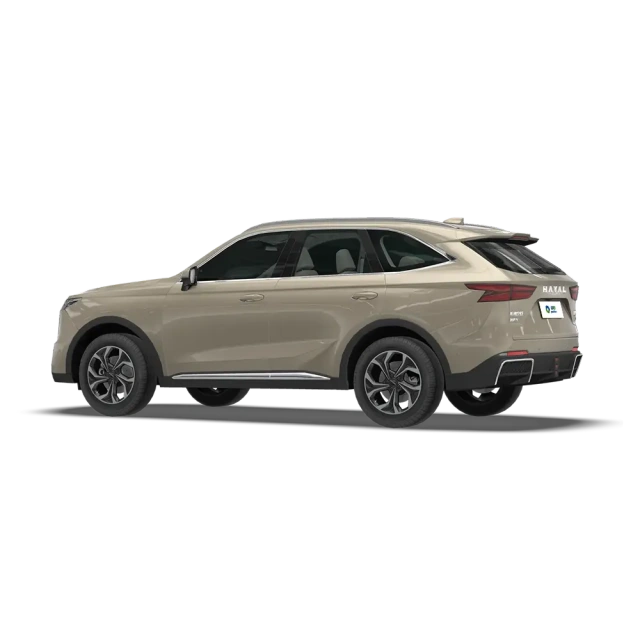

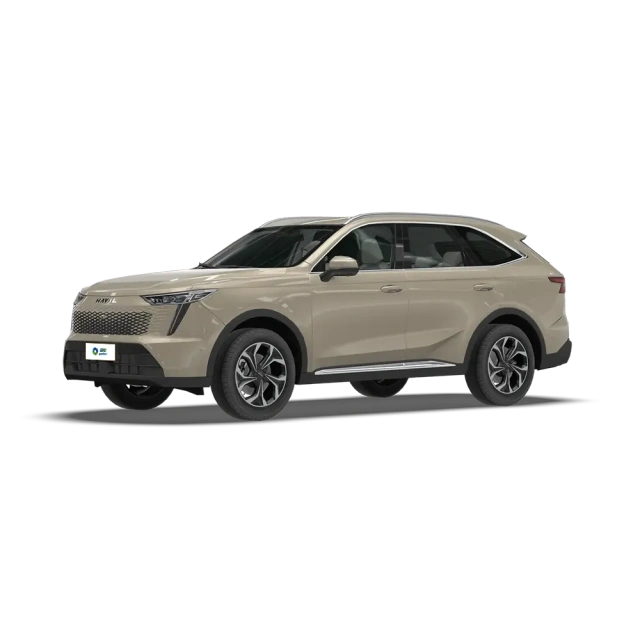

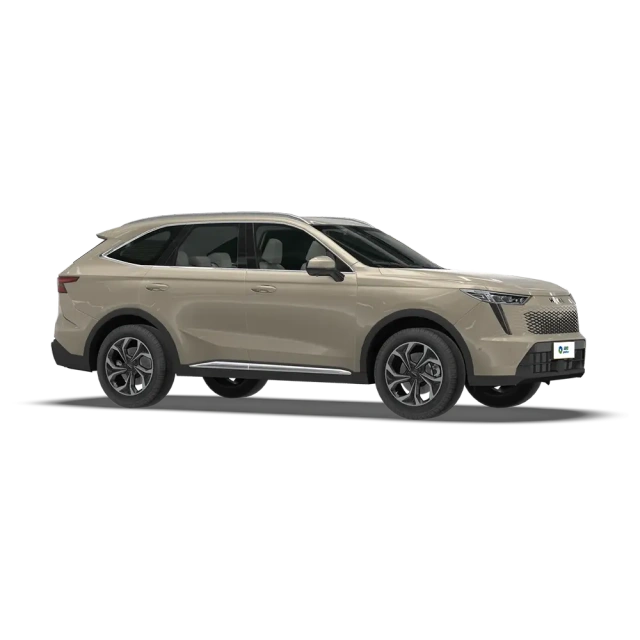

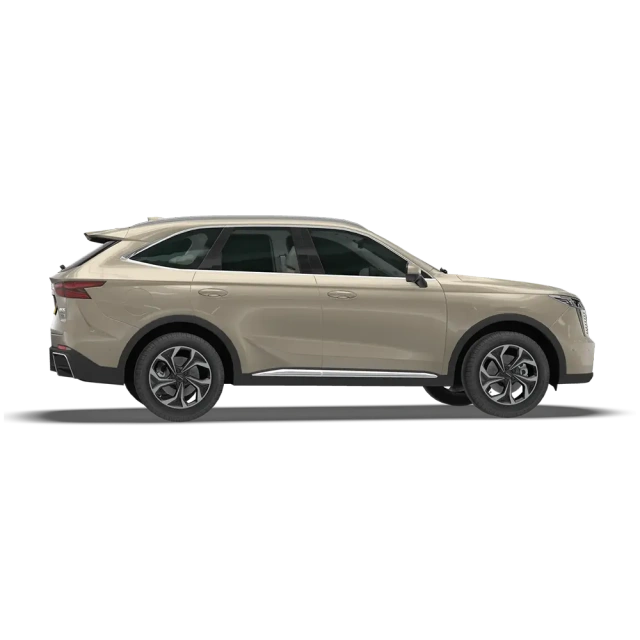

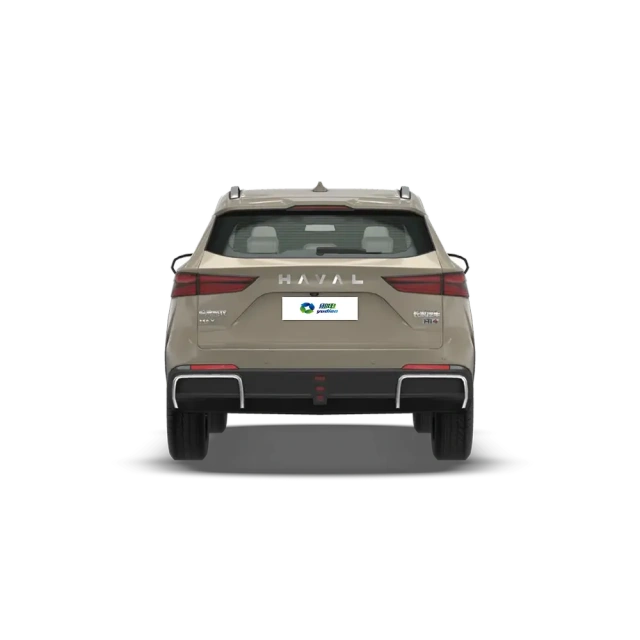

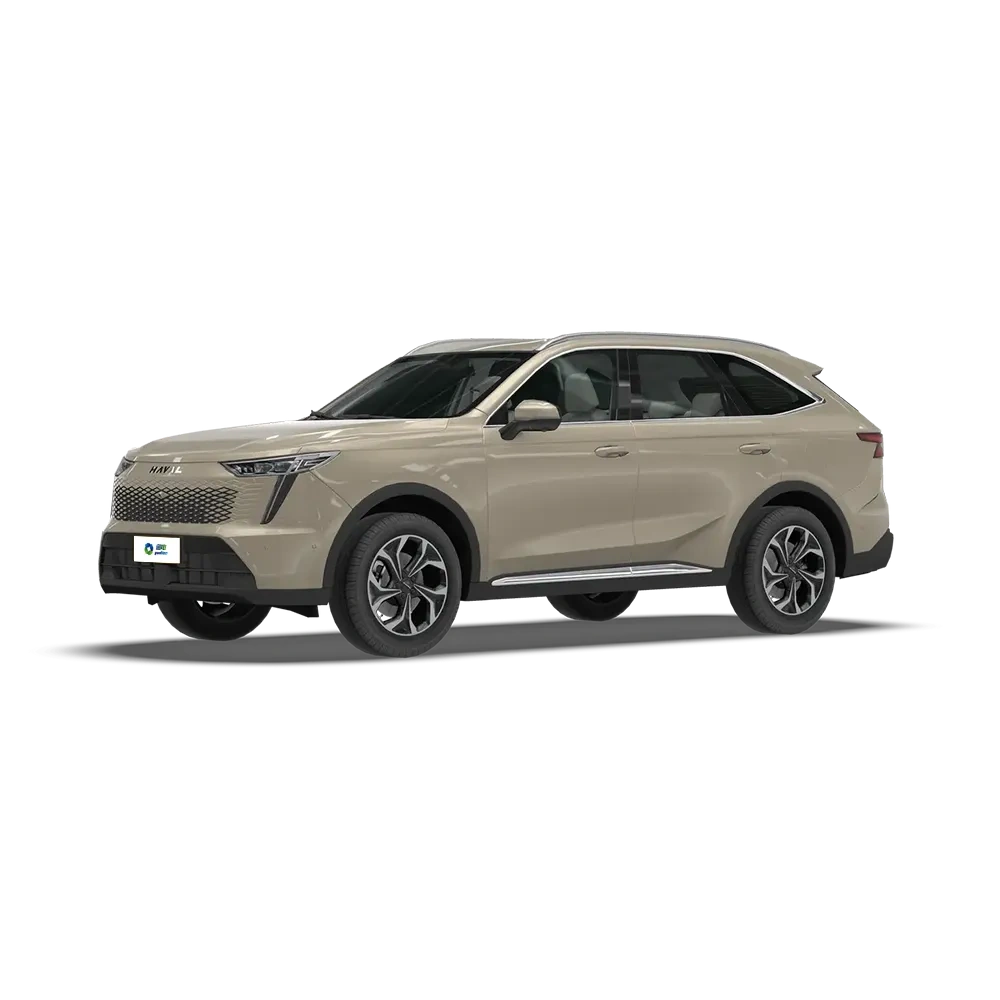

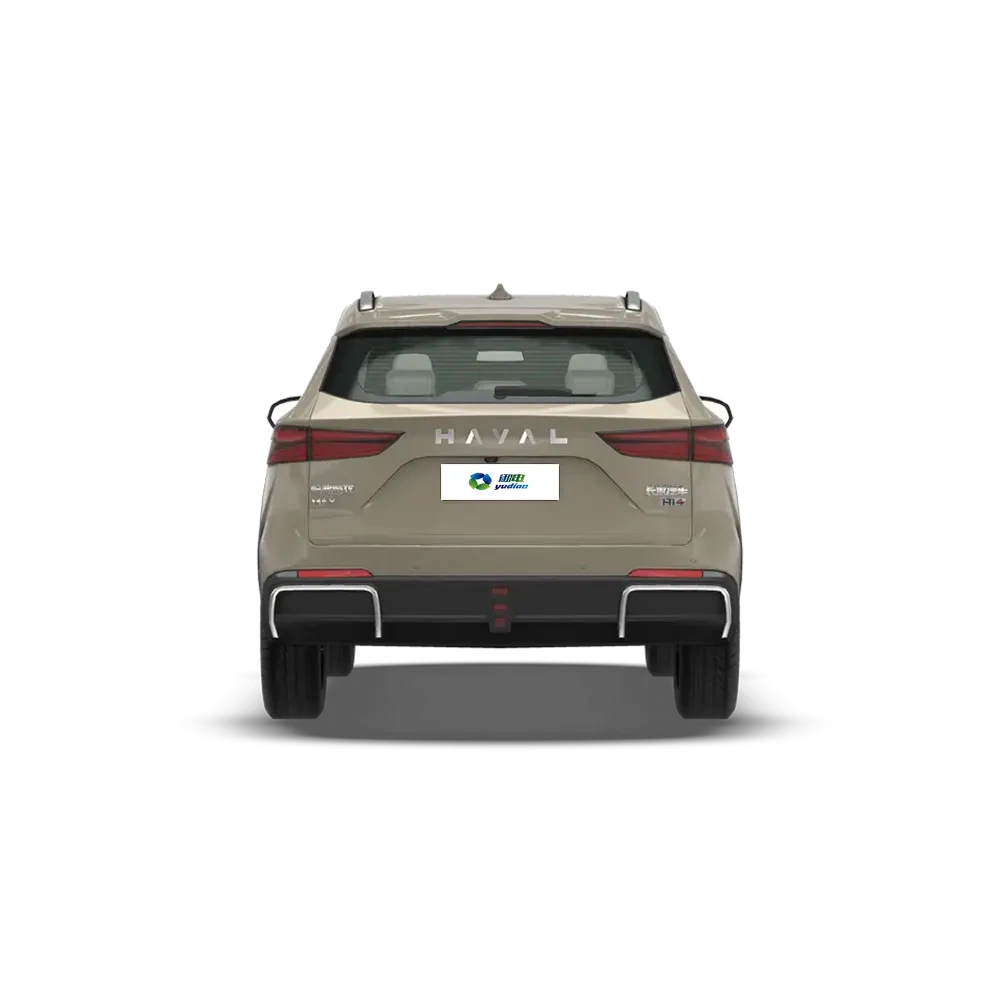

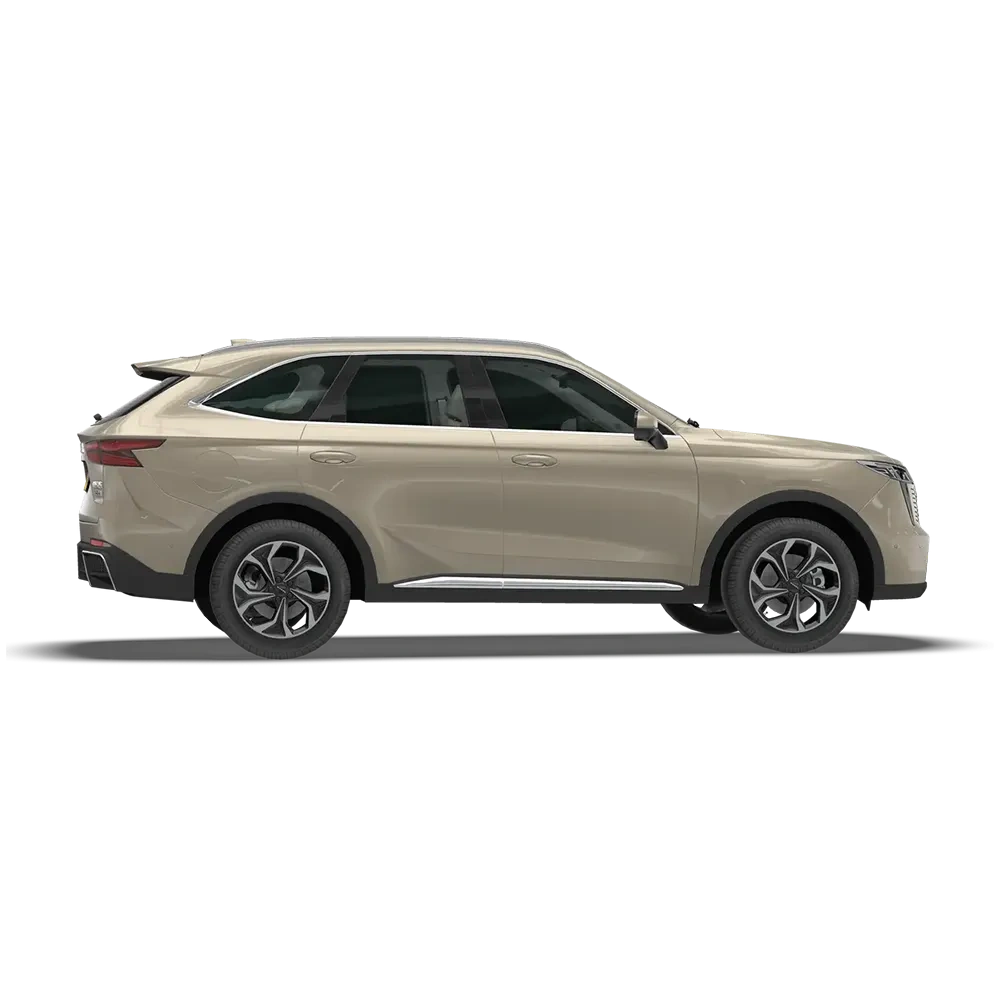

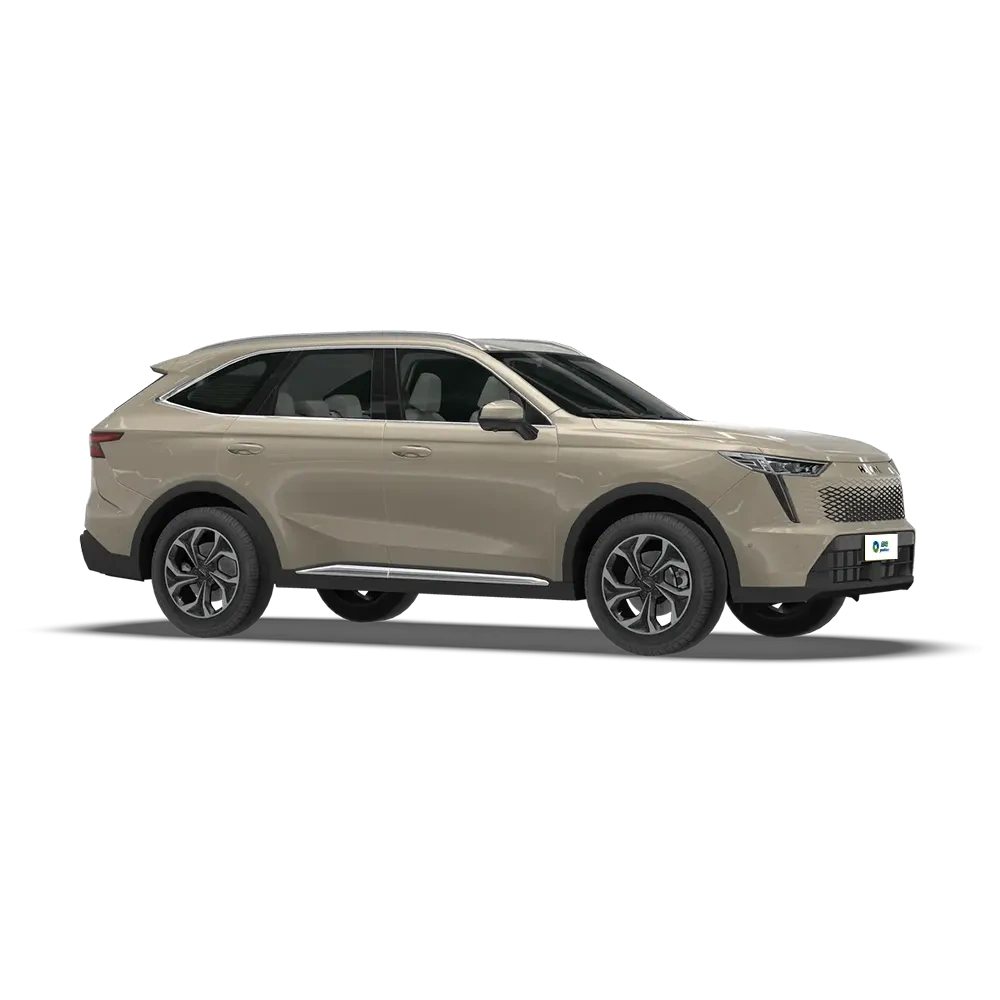

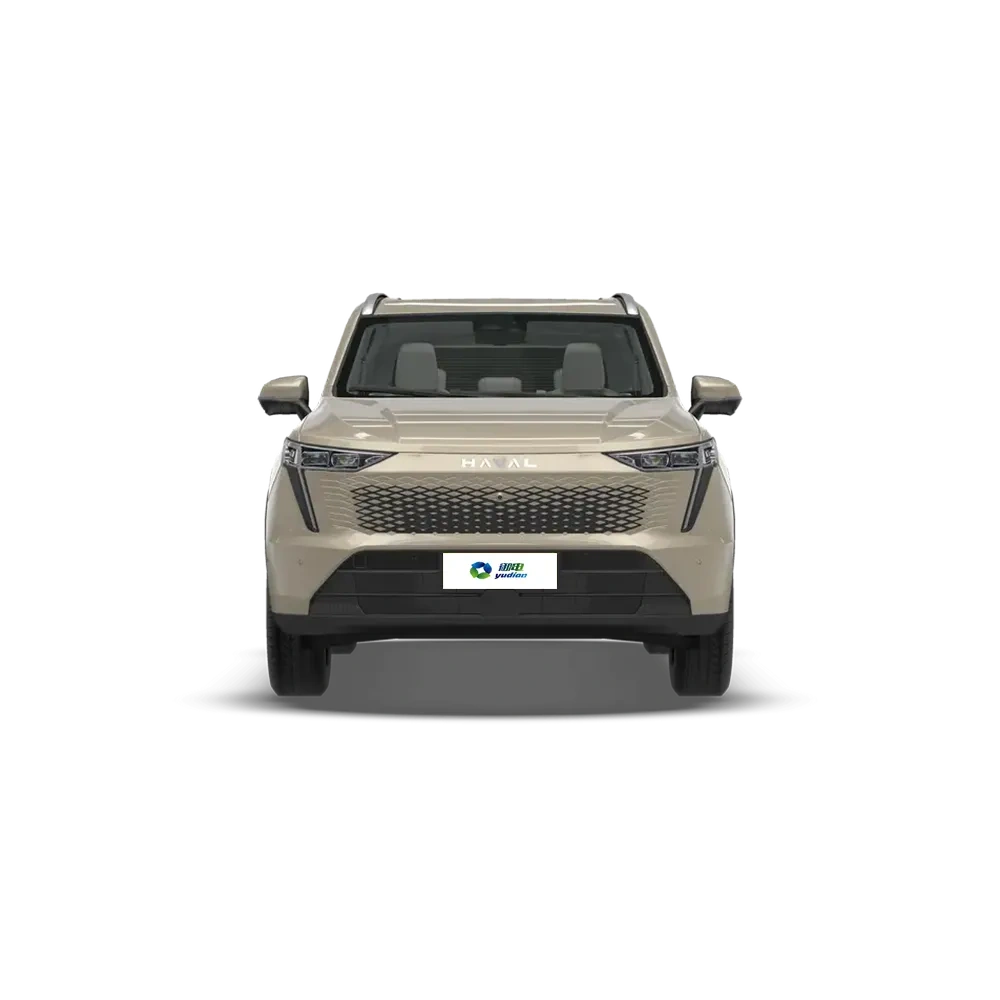

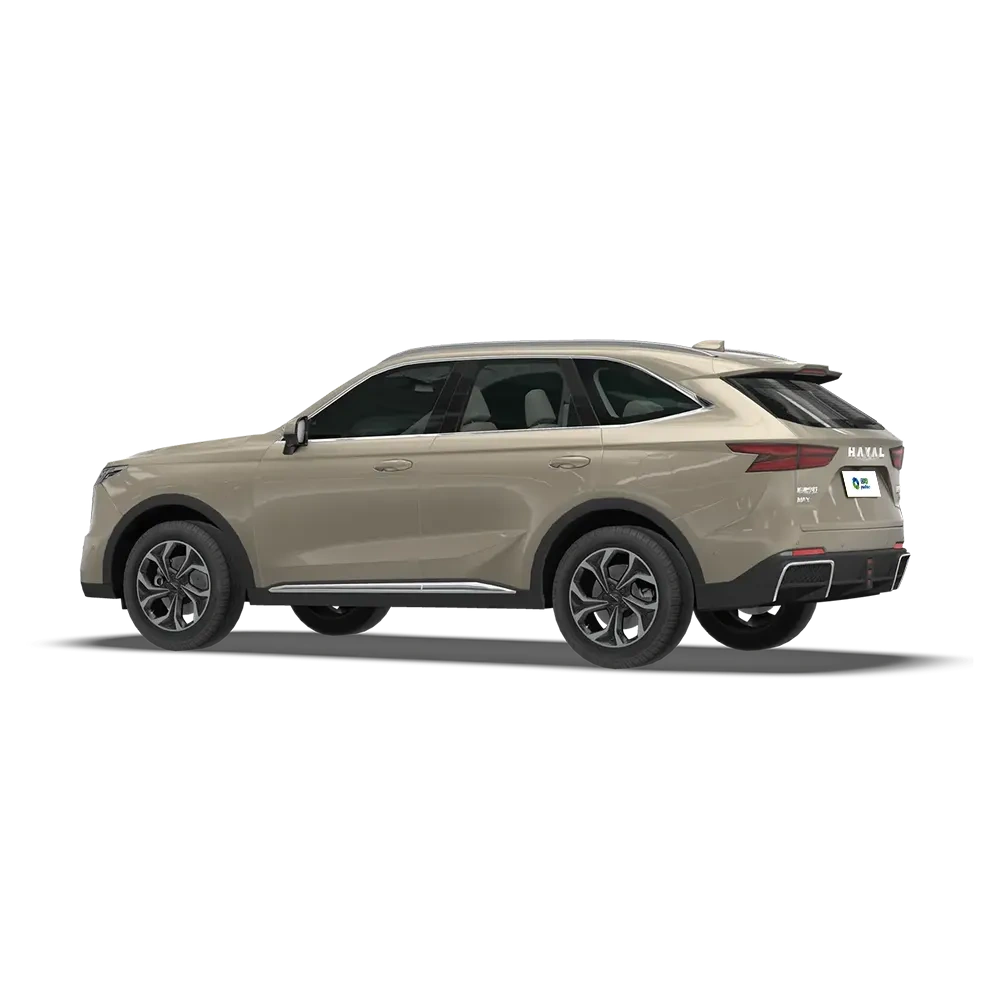

The dimensions of the Haval Xiaolong MAX are 4758×1895×1725 mm in length, width, and height, with a wheelbase of 2800 mm. The front and rear track widths are 1626 mm and 1630 mm respectively. The car can accommodate up to 5 people.
The Haval Xiaolong MAX has a maximum horsepower of 299 PS, a maximum output power of 220 kW, and a peak torque of 585 N·m.
The Haval Xiaolong MAX features front and rear dual-motor configuration, ternary lithium battery, and a battery energy of 19.27 kWh. It provides a pure electric range of up to 83 km (WLTC cycle) and 105 km (NEDC cycle). It also supports fast charging with a power output of 33 kW, capable of reaching 80% charge in 26 minutes.
Basic Information |
|||
| Top Speed(km/h) | 180 | Acceleration 0-100km (s) | 6.8 |
|
WLTC Fuel Economy(L/100km)
|
1.78 | - | - |
| Body | |||
| Length (mm) | 4758 | Width (mm) | 1895 |
| Height (mm) | 1725 | Wheelbase(mm) | 2800 |
| Front Track (mm) | 1626 | Rear Track (mm) | 1630 |
| Doors | 5 | Seats | 5 |
| Curb Weight (kg) |
1980
|
Trunk Capacity (L)
|
551-1377
|
| Engine | |||
|
Displacement (mL)
|
1498 |
Displacement（L）
|
1.5 |
|
Intake System
|
Naturally Aspirated
|
Engine Layout
|
Transverse |
|
Cylinder Arrangement
|
L |
Number of Cylinders
|
4 |
|
Valves per Cylinder
|
4 |
Valve Train System
|
DOHC |
|
Maximum Power (kW)
|
85 |
Maximum Horsepower (PS)
|
116 |
|
RPM at Peak Power
|
6000
|
Maximum Torque (N·m)
|
140 |
|
RPM at Peak Torque
|
4000-4800
|
Fuel Tank Capacity (L)
|
55 |
|
Fuel Grade
|
92 |
Emission Standard
|
China 6 |
|
Electric Motor
|
|||
|
Motor Brand
|
F: TZ220XS010/R: TZ220XS008
|
Number of electric motors
|
Dual |
|
Motor Layout
|
Front+Rear
|
Motor Type
|
PMSM |
|
Total Motor Power (kW)
|
220 | Number of Cylinders | - |
| Valves per Cylinder | - |
Total Motor Torque (N·m)
|
450 |
|
Front Motor Max Power (kW)
|
70 |
Front Motor Max Torque (N·m)
|
100 |
|
Battery/Charging
|
|||
|
Battery Type
|
Ternary lithium battery
|
Cell Manufacturer
|
Gotion High-tech/Svolt
|
|
Battery Pack Capacity(kWh)
|
19.27
|
NEDC EV Range(km)
|
105 |
|
DC Fast Charging Time (min)
|
26 |
DC Charging Capacity (%)
|
-
|
| Gearbox | |||
| Gears | 2 | Transmission |
DHT
|
| Chassis & Suspension | |||
| Drivetrain | 4WD | Front Suspension | MacPherson Independent Suspension |
| Rear Suspension |
Multi-Link Independent Suspension
|
Four Wheel Drive Type
|
Electronic Four Wheel Drive
|
| Tires & Brake | |||
| Front Brake | Ventilated Disc | Rear Brake |
Ventilated Disc
|
| Parking Brake | Electronic Parking Brake | Front Tire Specification |
235/55 R19
|
| Rear Tire Specification |
235/55 R19
|
||
| The specifications and configurations provided on this page are for reference only. Actual specifications are subject to the vehicle sold at the dealership. | |||
