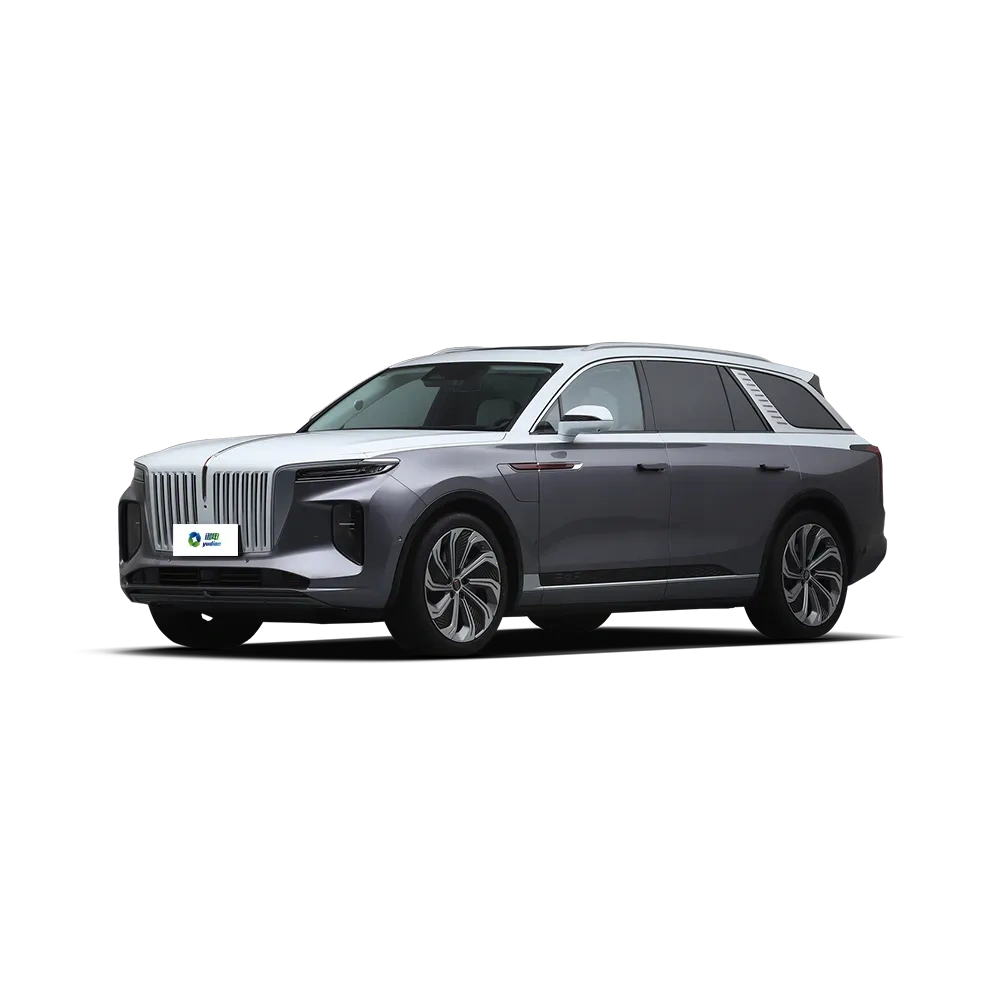

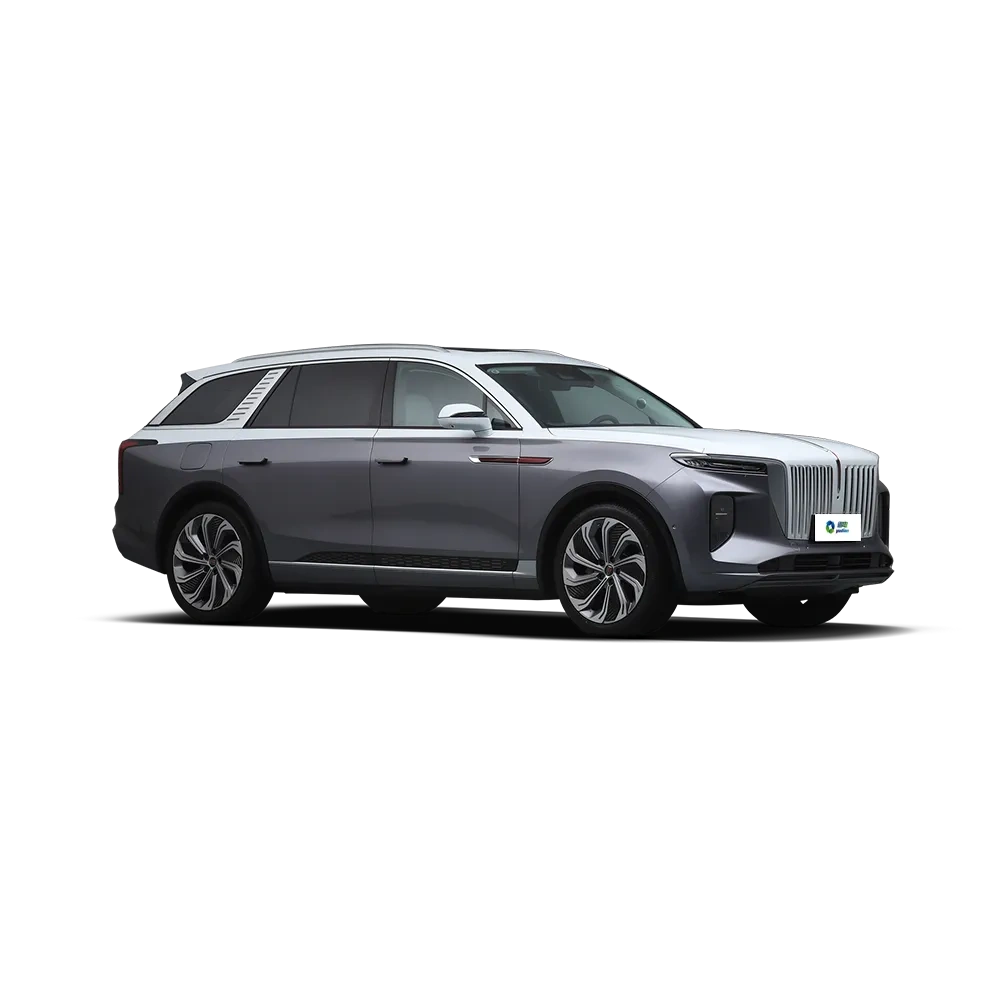

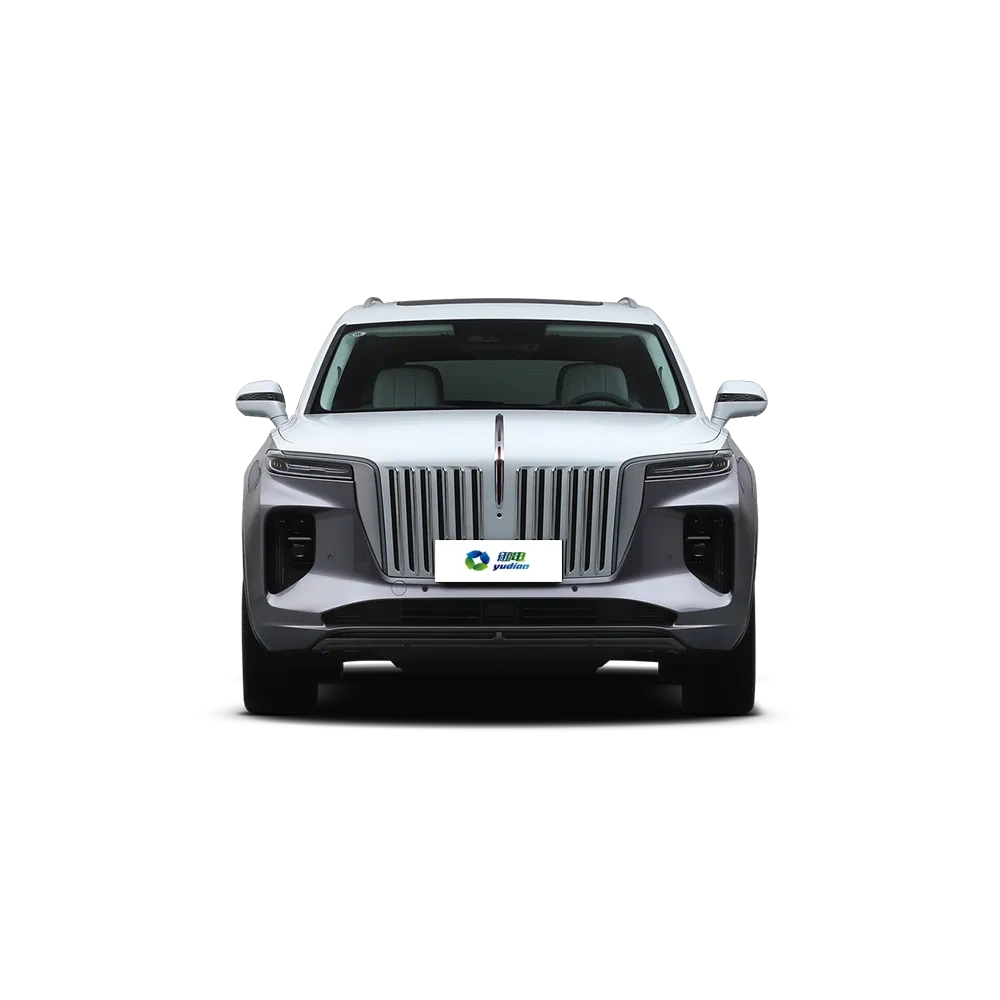

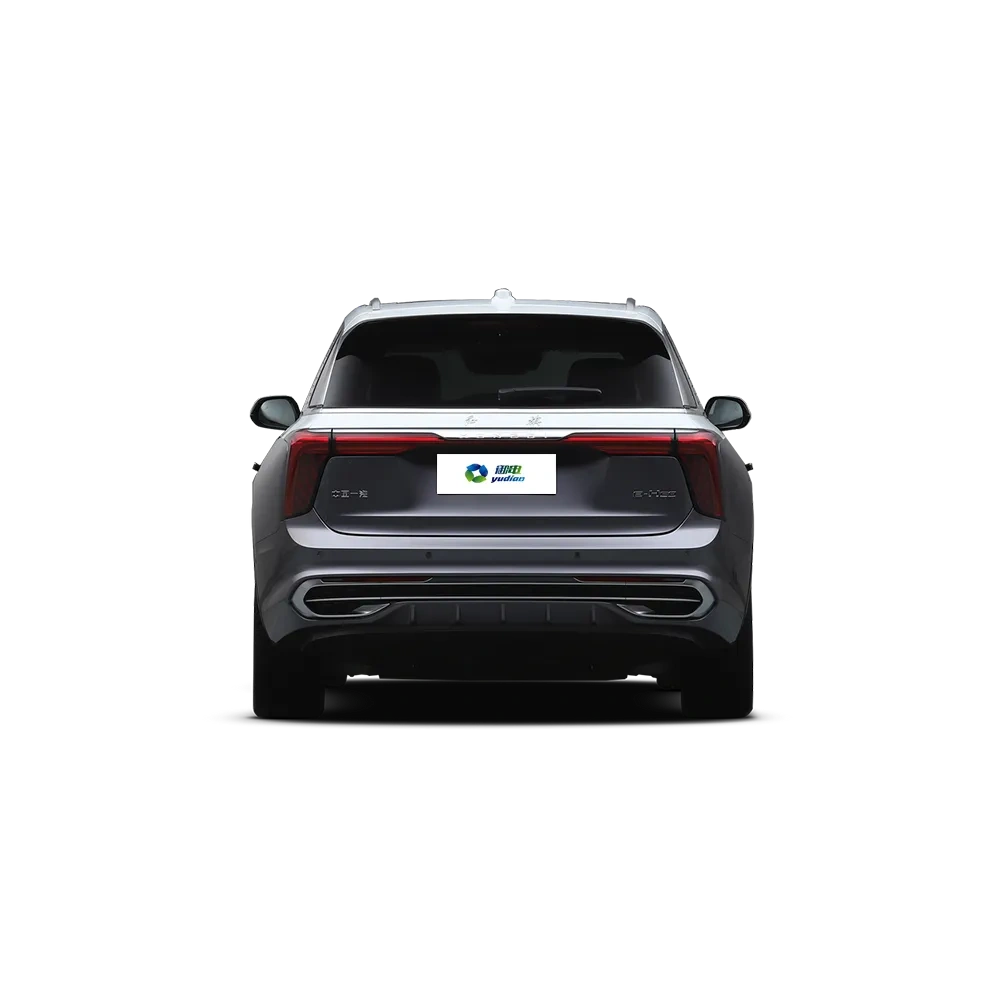

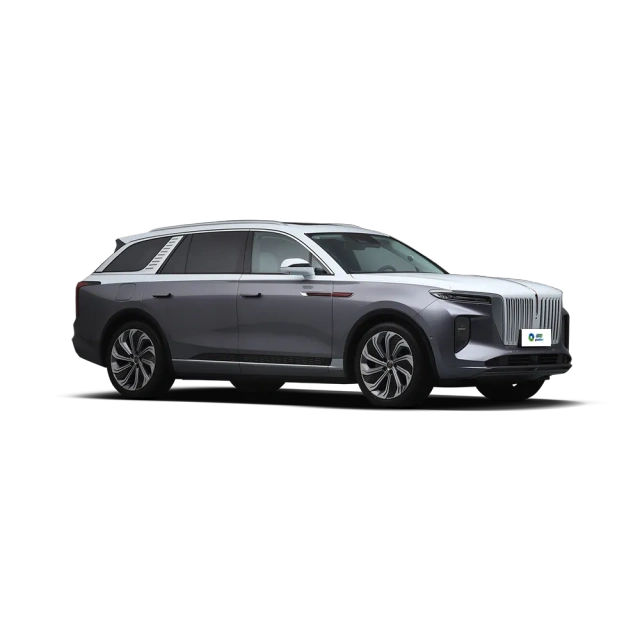

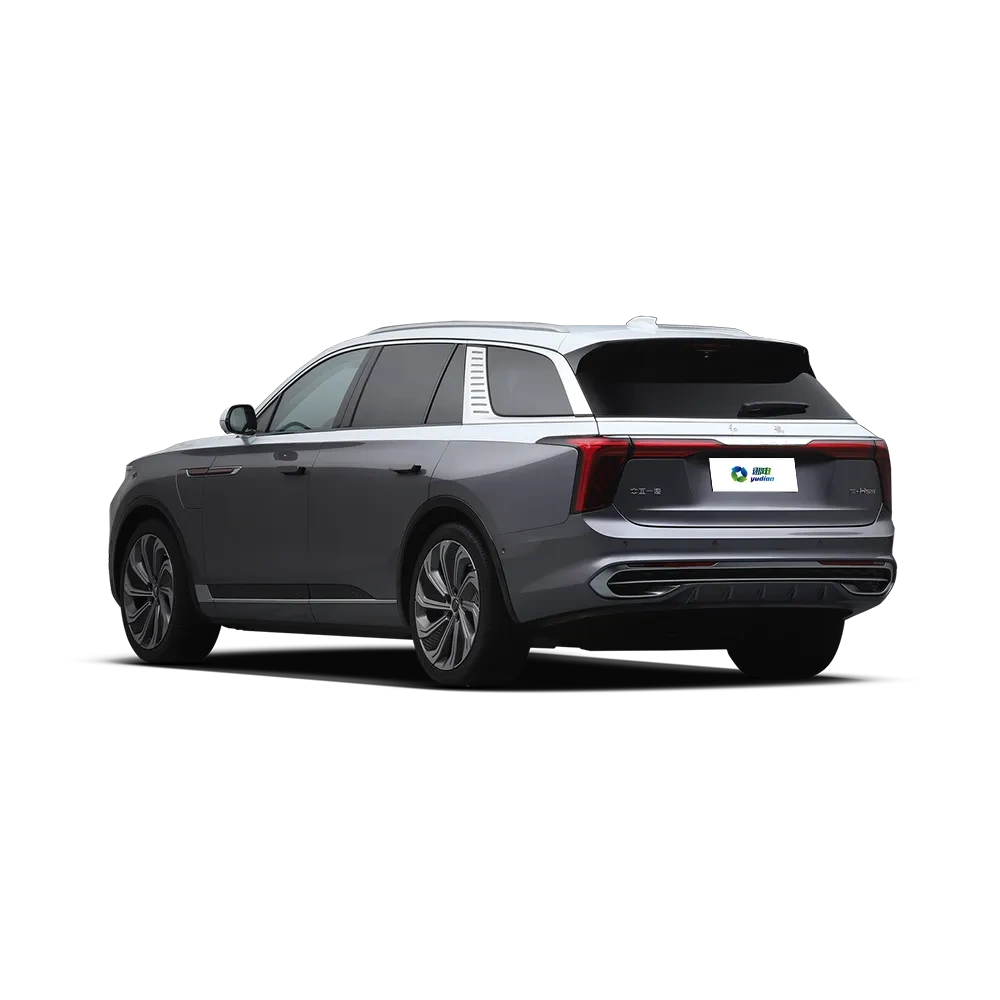

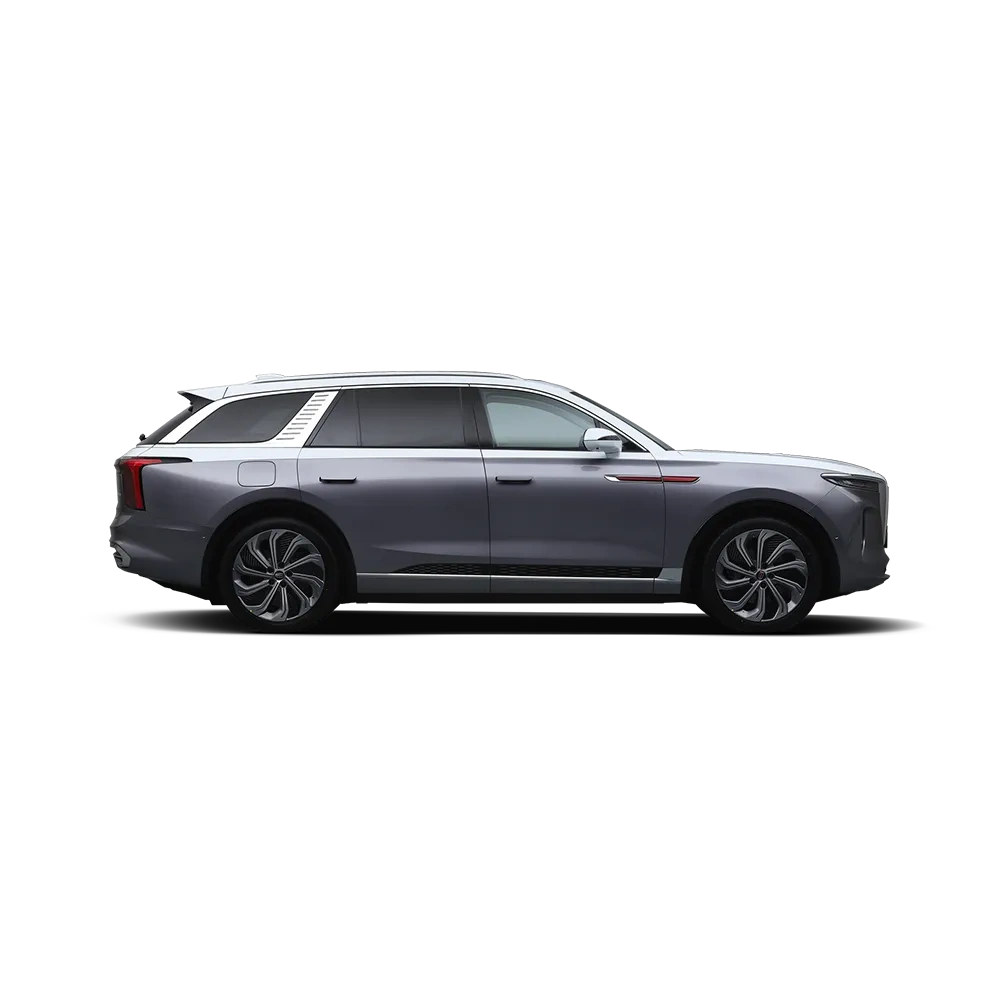

The dimensions of the Hongqi E-HS9 are 5209 mm × 2010 mm × 1731 mm (length × width × height) with a wheelbase of 3110 mm. The front and rear track widths are 1708 mm and 1709 mm respectively. The vehicle can accommodate up to 7 people.
The Hongqi E-HS9 boasts a maximum horsepower of 551 hp, maximum power output of 405 kW, and maximum torque of 670 N·m, and accelerates from 0 to 100 km/h in 4.9 seconds.
The Hongqi E-HS9 is equipped with a permanent magnet synchronous motor and uses CATL’s ternary lithium-ion batteries with a capacity of 99 kWh. It supports fast charging, reaching 80% charge in 38 minutes, and has an NEDC pure electric range of up to 690 km.
Basic Information |
|||
| Top Speed(km/h) | 200 | - | - |
| Body | |||
| Length (mm) | 5209 | Width (mm) | 2010 |
| Height (mm) | 1731 | Wheelbase(mm) | 3110 |
| Front Track (mm) | 1708 | Rear Track (mm) | 1709 |
| Doors | 5 | Seats | 7 |
| Curb Weight (kg) | 2644 |
Loaded Ground Clearance (mm)
|
150 |
|
Electric Motor
|
|||
|
Motor Brand
|
F: CAM220PT2/R: CAM220PT2
|
Number of electric motors
|
Dual |
|
Motor Layout
|
Front+Rear
|
Motor Type
|
PMSM |
|
Total Motor Power (kW)
|
320 | Number of Cylinders | - |
| Valves per Cylinder | - |
Total Motor Torque (N·m)
|
600 |
|
Front Motor Max Power (kW)
|
160 |
Front Motor Max Torque (N·m)
|
300 |
|
Battery/Charging (1.5L DHT)
|
|||
|
Battery Type
|
Ternary lithium battery
|
Cell Manufacturer
|
CATL |
|
Battery Pack Capacity(kWh)
|
120
|
NEDC EV Range(km)
|
690 |
|
DC Fast Charging Time (min)
|
36 |
DC Charging Capacity (%)
|
30-80
|
| Gearbox | |||
| Gears | 1 | Transmission |
Fixed Gear Ratio
|
| Chassis & Suspension | |||
| Drivetrain | 4WD | Front Suspension |
Double Wishbone Independent Suspension
|
| Rear Suspension |
Multi-Link Independent Suspension
|
Four Wheel Drive Type
|
Electronic Four Wheel Drive
|
| Tires & Brake | |||
| Front Brake | Ventilated Disc | Rear Brake |
Ventilated Disc
|
| Parking Brake | Electronic Parking Brake | Front Tire Specification |
265/45 R21
|
| Rear Tire Specification |
265/45 R21
|
||
| The specifications and configurations provided on this page are for reference only. Actual specifications are subject to the vehicle sold at the dealership. | |||
