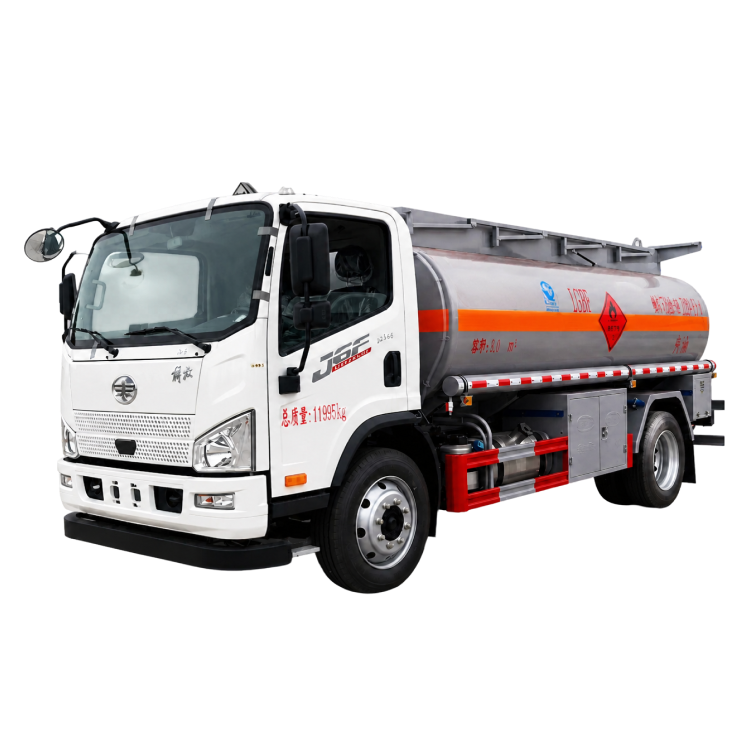

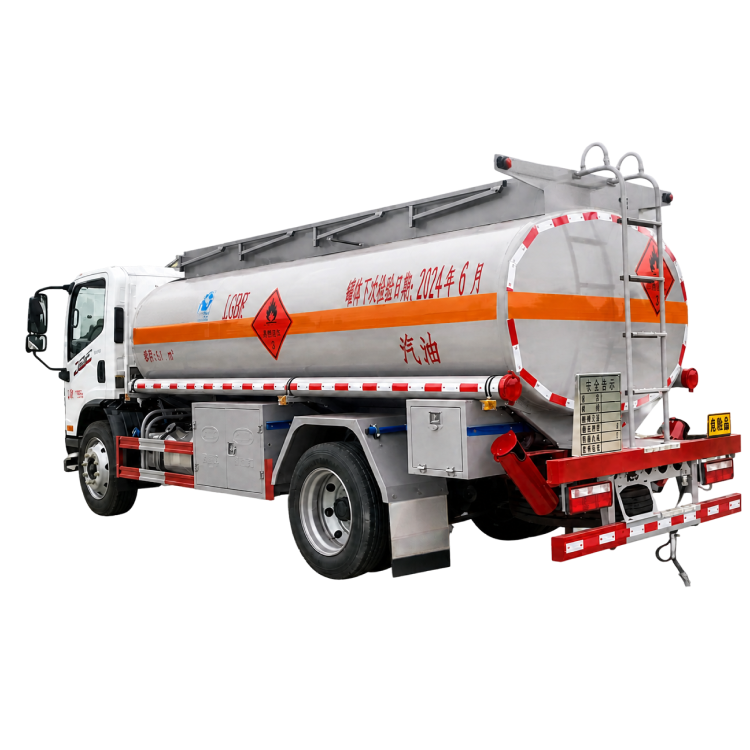

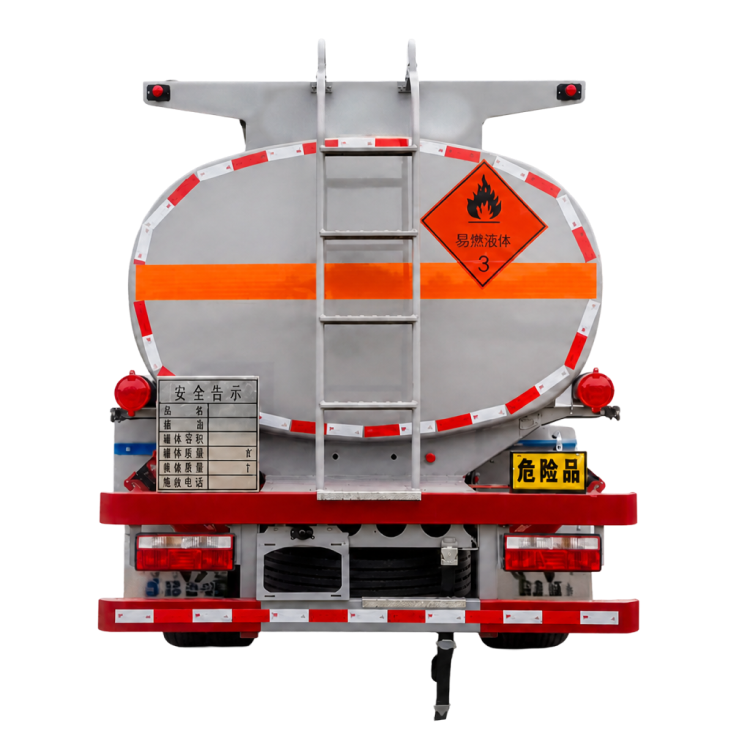

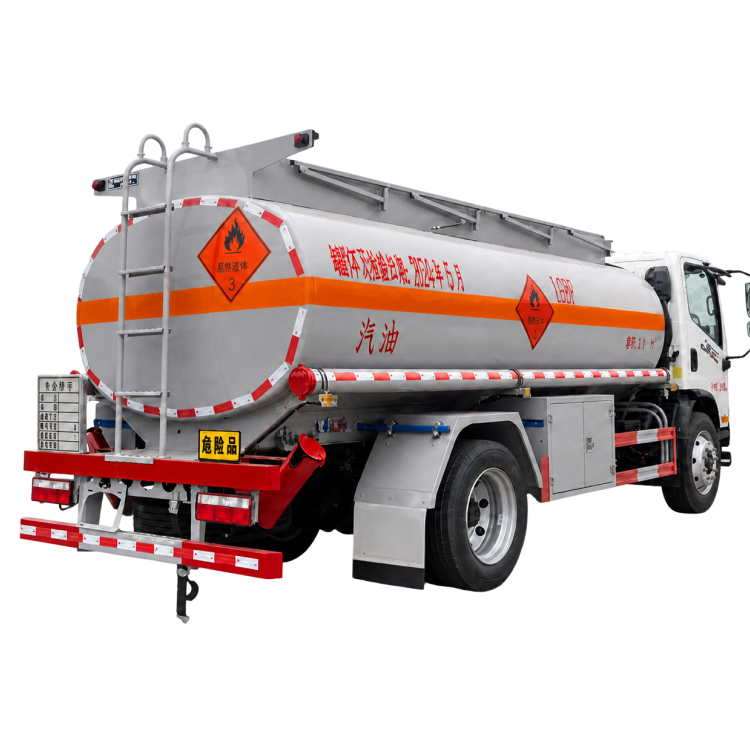

The Jiefang Oil Tanker Truck (CL5121GJY6BWG) is a specialized FL-type hazardous material transport vehicle with a total tank capacity of 9.8 m³ (9.35 m³ effective volume). Built on the reliable FAW Jiefang CA1120P40K59L4BE6A84 Euro VI diesel chassis, it features advanced ADR/FL safety equipment including front disc brakes, a front-mounted exhaust, speed limiter (80 km/h max), and blowout protection.
Engineered for reliable, safe transport of liquid fuels (maximum medium density: 700 kg/m³), the CL5121GJY6BWG Jiefang Fuel Bowser meets strict FL-class hazardous transport standards. Combining FAW Jiefang's heavy-duty chassis architecture with specialized tank engineering, it offers an optimal balance between payload capacity and operational safety.
Tank Dimensions: High-strength Q235B carbon steel tank measuring 4800 × 2000 × 1300 mm.
Capacity: Offers a total tank volume of 9.8 m³ and an effective payload volume of 9.35 m³.
Weight Parameters: Rated for a 6,545 kg payload with a GVW of 11,995 kg.
Active Safety Features: Equipped with front disc brakes, radial tires, steering wheel blowout emergency protection, and a factory speed-limiting device capped at 80 km/h.
Exhaust & Underrun Protection: Designed with a front-mounted exhaust pipe, satellite-tracked driving data recorder, and heavy-duty bolted Q235B side/rear underrun guards.
| Category | Specification | Parameter / Detail |
|---|---|---|
| Vehicle Specifications | Product Name | Oil Tanker Truck-Jie Fang |
| Vehicle Model | CL5121GJY6BWG | |
| Vehicle Class Standard | FL Hazard Transport Type | |
| Gross Mass (GVW) | 11,995 kg | |
| Rated Payload | 6,545 kg | |
| Curb Weight | 5,255 kg | |
| Overall Dimensions | 6950 × 2350 / 2270 × 2800 mm | |
| Cab Seating Capacity | 3 persons | |
| Approach / Departure Angle | 12 / 20° | |
| Maximum Speed | 80 km/h (Speed-limited) | |
| Tank Specifications | Tank Capacity | Total: 9.8 m³ | Effective Volume: 9.35 m³ |
| Tank Dimensions | 4800 × 2000 × 1300 mm (Length × Major Axis × Minor Axis) | |
| Transport Medium Density | Maximum 700 kg/m³ | |
| Protective Material | Q235B Carbon Steel | |
| Chassis Specifications | Chassis Model & Name | CA1120P40K59L4BE6A84 Cab-over-engine diesel cargo chassis |
| Wheelbase Options | 4200 / 3900 / 3600 mm | |
| Tire Specifications | 245/70R19.5 16PR, 8.25R20 16PR, 255/70R22.5 16PR (6 Tires) | |
| Fuel Type & Emission | Diesel Fuel | GB17691-2018 National VI | |
| Brake & Exhaust System | Front disc brakes | Front-mounted exhaust pipe | |
| Safety Technology | Blowout emergency protection, satellite driving data recorder, optional ETC |
