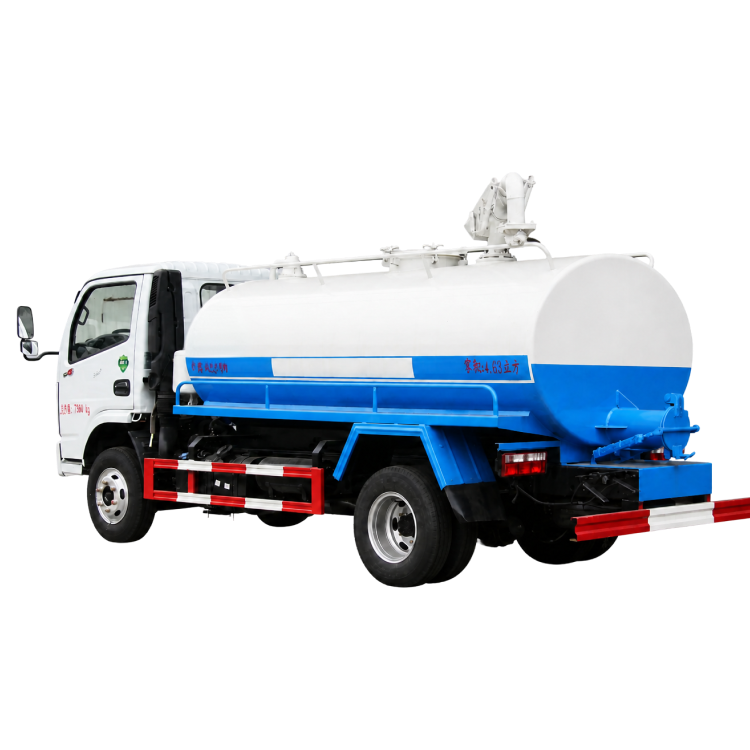

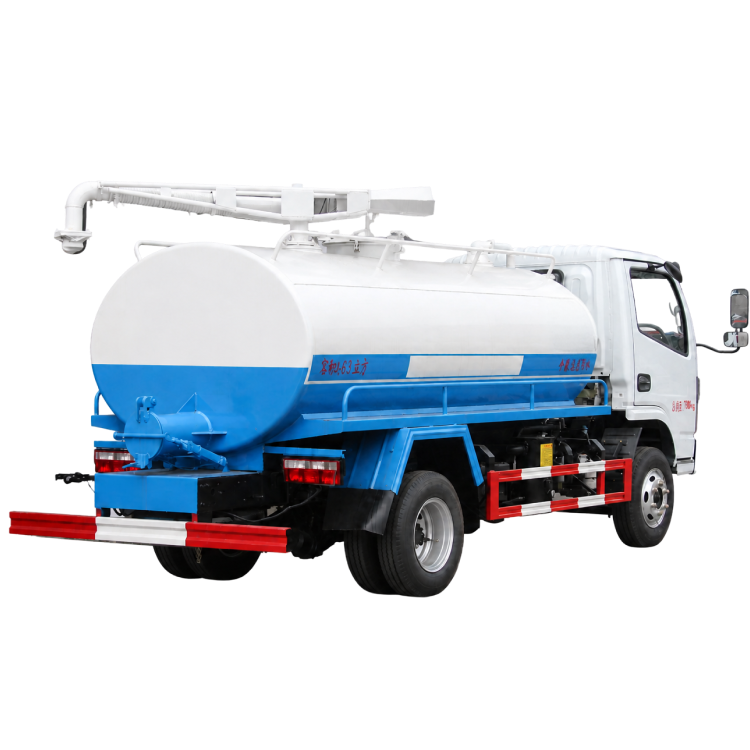

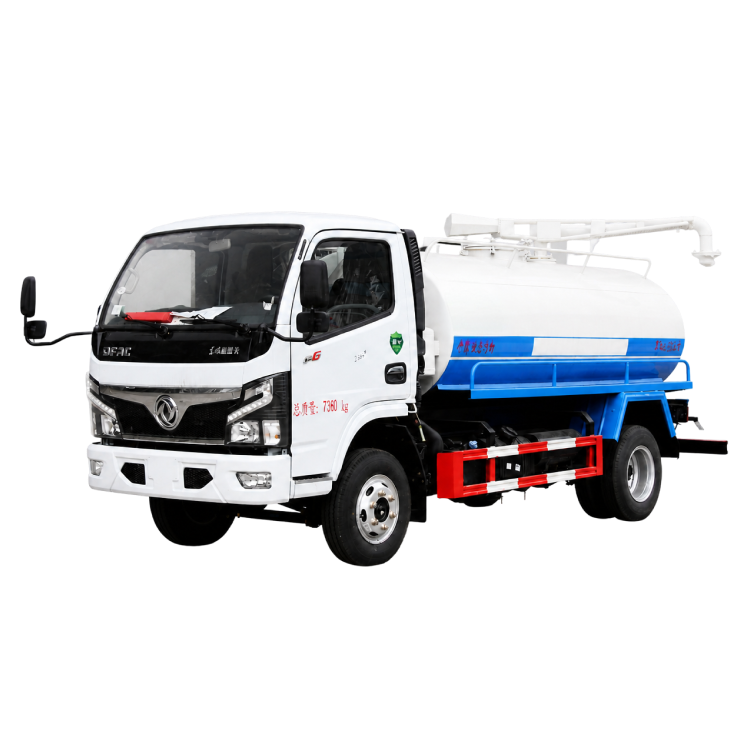

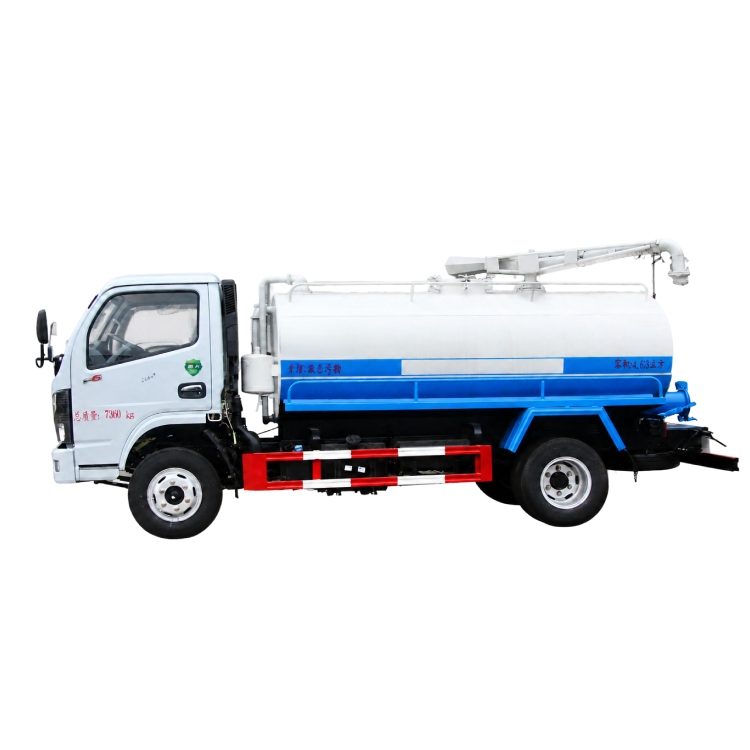

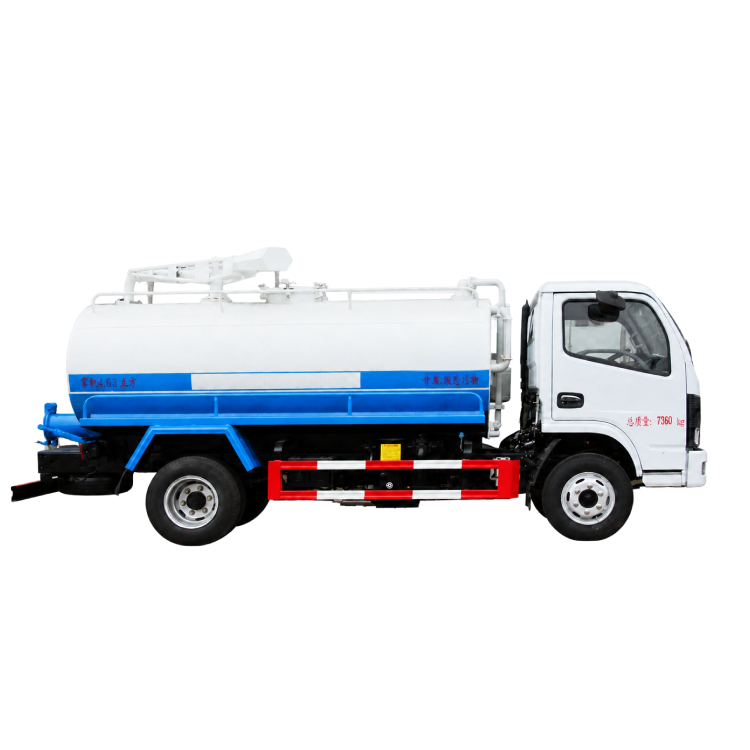

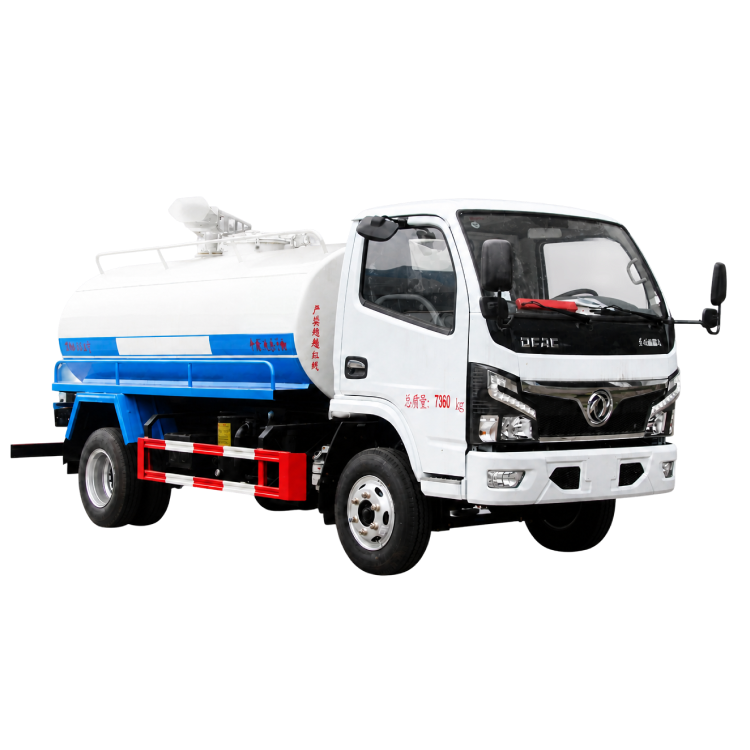

The Septic Tank Truck-Little Dolika (CLW5070GXED6) is a specialized municipal sanitation vehicle engineered for efficient suction, transport, and discharge of sewage, sludge, and liquid waste. Built on a durable Dongfeng Euro VI diesel chassis with a 3,308 mm wheelbase, it features a 4.63 cubic meter total capacity tank and a powerful vacuum pumping system designed for deep suction in septic tanks, drainage ditches, and urban sewer systems.
Designed for municipal sanitation departments, residential property management, and commercial waste collection services, the CLW5070GXED6 Little Dolika Vacuum Truck combines robust performance with compact urban maneuverability. With a rated payload capacity of up to 3,530 kg, it provides a reliable and hygienic solution for liquid waste extraction and transport.
Optimized Capacity: Features a heavy-duty steel vacuum tank with a total volume of 4.63 m³ (4.41 m³ effective working volume) and dimensions of 3500 × 1650 × 1200 mm.
High-Efficiency Extraction: Purpose-built for suction and transportation of diverse high-density fluids, including sewage, septic sludge, wastewater, mud, and industrial liquid waste.
Flexible Mounting Options: Offers customizable mounting layouts for chassis accessories and superstructure exterior components to suit specific fleet operations.
Reliable Chassis: Powered by a Dongfeng EQ1075SJ3CDF Euro VI diesel chassis, offering low emissions, optimized fuel economy, and high torque.
Safety & Control Systems: Equipped with an advanced ABS/ASR-12V-4S/4M braking control system to maintain stability and wheel traction during transport.
Structural Protection: Outfitted with fully welded Q235B carbon steel side and rear underrun protective guards (rear cross-section: 120 × 50 mm, ground clearance: 430 mm).
| Category | Specification | Parameter / Detail |
|---|---|---|
| Vehicle Specifications | Product Name | Septic Tank Truck-Little Dolika |
| Product Model | CLW5070GXED6 | |
| Gross Mass (GVW) | 7,360 kg | |
| Rated Payload | 3,465 / 3,530 kg | |
| Curb Weight | 3,700 kg | |
| Overall Dimensions | 5995, 5980 × 2010 × 2500 mm | |
| Cab Seating Capacity | 2 or 3 passengers | |
| Maximum Speed | 110 km/h | |
| Chassis & Powertrain | Chassis Model & Name | EQ1075SJ3CDF Cargo Truck Chassis |
| Fuel Type & Emission Standard | Diesel Fuel | GB17691-2018 National VI | |
| Applied Wheelbase | 3,308 mm | |
| Tires & Axles | 2 Axles / 6 Tires (7.00R16, 7.00R16LT, 7.50R16LT) | |
| Track Width (Front/Rear) | Front: 1503–1613 mm | Rear: 1498–1800 mm | |
| Safety Systems | ABS / ASR Control System (Model: ABS/ASR-12V-4S/4M) | |
| Tank & Sanitation Apparatus | Tank Capacity & Volume | Total Volume: 4.63 m³ | Effective Volume: 4.41 m³ |
| Tank Dimensions | 3500 × 1650 × 1200 mm | |
| Underrun Protection | Q235B carbon steel side & rear guard (welded, 120×50mm, 430mm clearance) |
