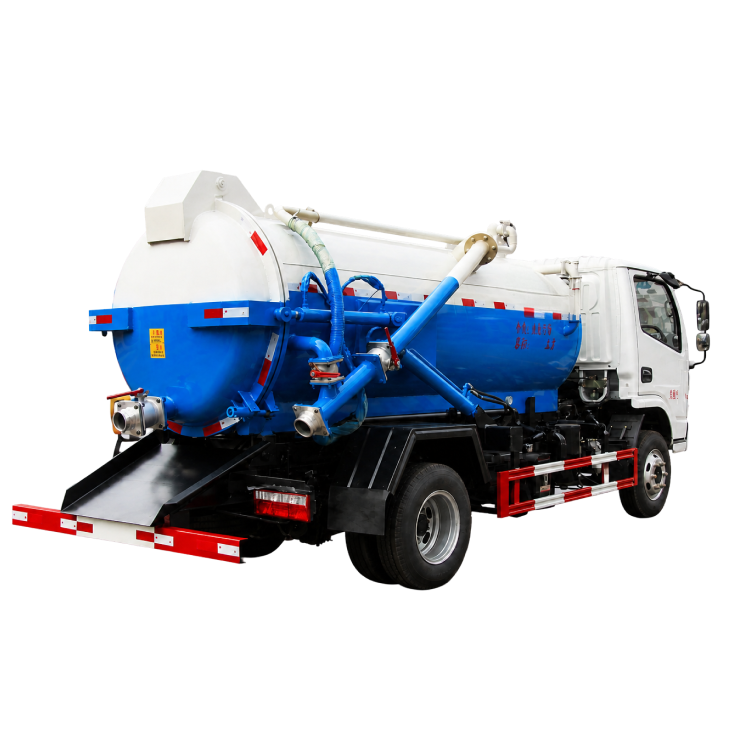

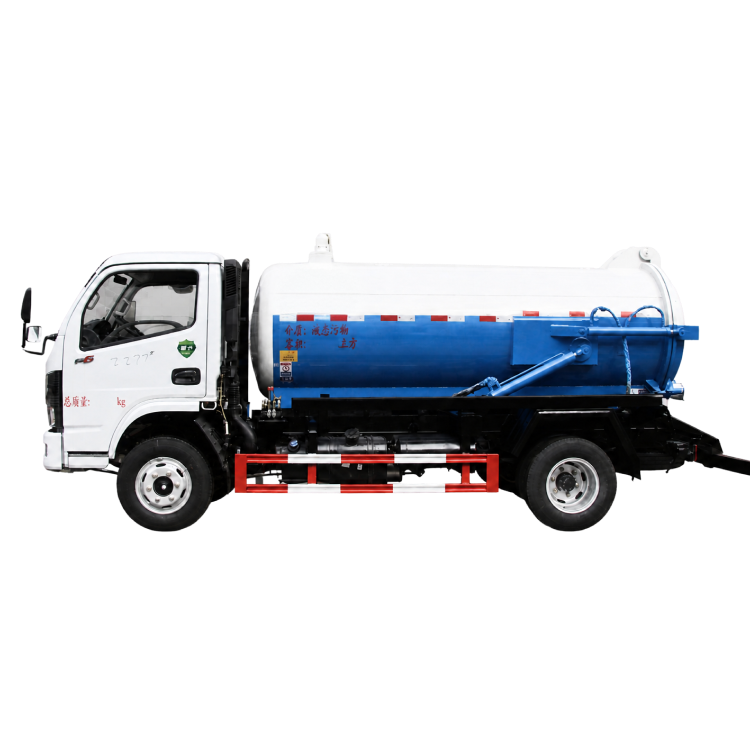

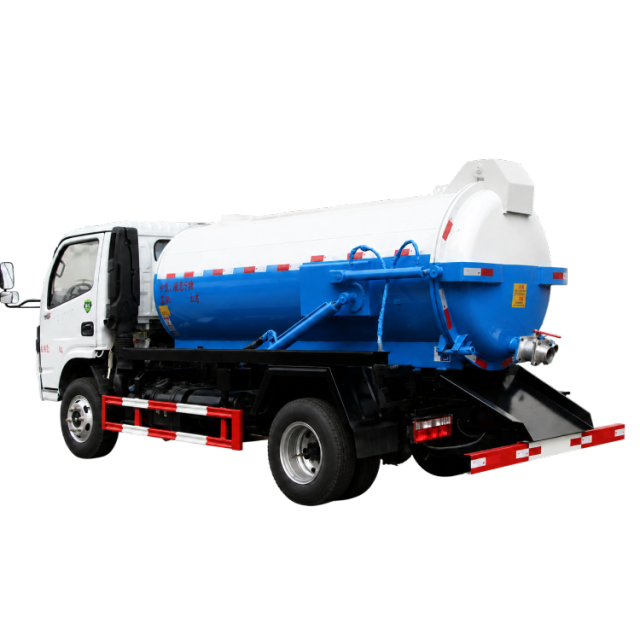

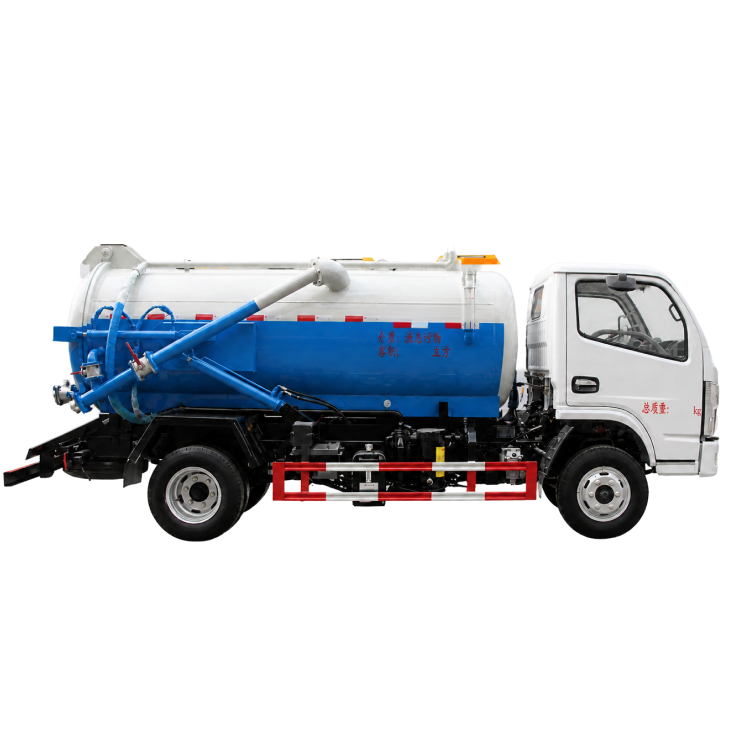

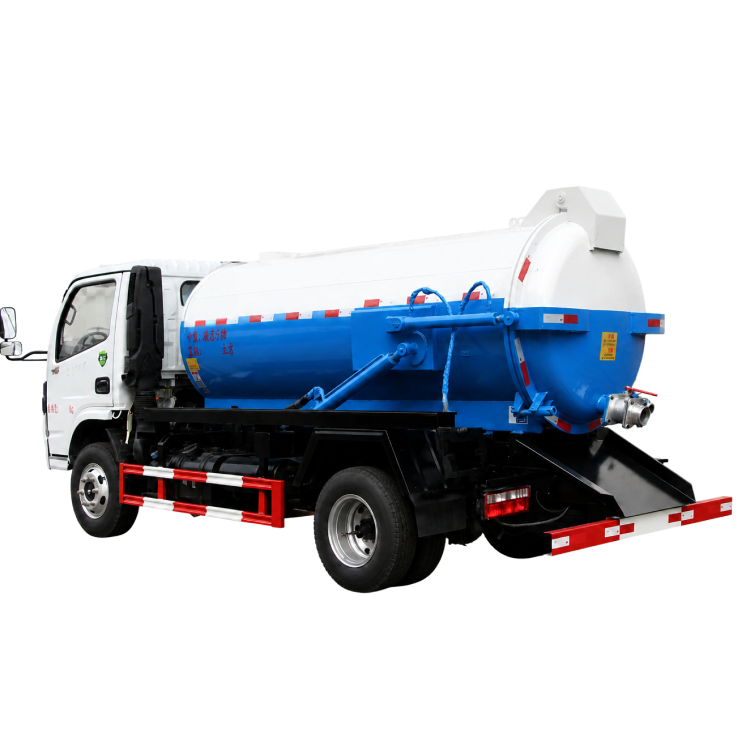

The Sewage Suction Truck-Little Furuika (CLW5071GXW6) is a high-performance municipal sanitation vehicle engineered for the collection, suction, and transportation of sludge, liquid waste, and urban sewage. Built on a dependable Dongfeng Euro VI diesel chassis, it utilizes vacuum negative pressure technology to draw waste directly into its 3.75 cubic meter tank, preventing secondary pollution and ensuring efficient transport to disposal sites.
Engineered for municipal utility departments, environmental services, and industrial waste handling, the CLW5071GXW6 Little Furuika Vacuum Tanker provides exceptional maneuverability and powerful suction capabilities. Delivering a rated payload capacity of up to 3,230 kg, it offers a reliable, sealed solution for urban liquid waste management.
Optimized Tank Volume: Features a heavy-duty cylindrical tank with a total capacity of 3.75 m³ (3.58 m³ effective volume) and dimensions of 3400 × 1200 mm (straight section × diameter).
Tilting Hydraulic Tank & Rear Gate: Outfitted with a hydraulic lifting tank mechanism, along with optional rear hydraulic opening control valves and right-side hydraulic locking devices for rapid, safe dumping.
Specialized Vacuum System: Driven by a robust Power Take-Off (PTO) unit and high-efficiency vacuum pump to extract dense sludge and liquid waste under negative pressure.
Custom Modular Upgrades: Supports optional high-pressure cleaning units, water circulation pumps, oil pumps, and alternative mounting locations for the water tank, fuel tank, and urea tank.
Euro VI Powertrain: Powered by the Dongfeng EQ1075SJ3CDF cargo chassis, compliant with National VI emission standards for low environmental impact and strong fuel efficiency.
Advanced Traction & Safety Control: Integrated with an ABS/ASR-12V-4S/4M anti-lock braking and traction control system to maintain stability on slick or uneven terrain.
Rugged Guard Protection: Protected by welded Q235A/Q235B carbon steel side and rear underrun guards (rear cross-section: 120 × 50 mm, ground clearance: 440 mm).
| Category | Specification | Parameter / Detail |
|---|---|---|
| Vehicle Specifications | Product Name | Sewage Suction Truck-Little Furuika |
| Product Model | CLW5071GXW6 | |
| Gross Mass (GVW) | 7,360 kg | |
| Rated Payload | 3,165 / 3,230 kg | |
| Curb Weight | 4,000 kg | |
| Overall Dimensions | 5510, 5915, 5995 × 1990, 2090 × 2500 mm | |
| Cab Seating Capacity | 2 or 3 passengers | |
| Maximum Speed | 110 km/h | |
| Chassis & Powertrain | Chassis Model & Name | EQ1075SJ3CDF Cargo Truck Chassis |
| Fuel Type & Emission Standard | Diesel Fuel | GB17691-2018 National VI | |
| Wheelbase Options | 2,700 mm / 2,950 mm / 3,308 mm | |
| Tires & Axles | 2 Axles / 6 Tires (7.00R16, 7.00R16LT, 7.50R16LT) | |
| Track Width (Front/Rear) | Front: 1503–1613 mm | Rear: 1498–1800 mm | |
| Safety Systems | ABS / ASR Control System (Model: ABS/ASR-12V-4S/4M) | |
| Vacuum & Tank Equipment | Tank Capacity & Volume | Total Volume: 3.75 m³ | Effective Volume: 3.58 m³ |
| Tank Dimensions | 3400 mm (straight section) × 1200 mm (diameter) | |
| Specialized Mechanisms | Hydraulic tiltable tank, PTO unit, vacuum pump, optional cleaning unit | |
| Underrun Protection | Welded Q235A/Q235B carbon steel side & rear guard (120×50mm, 440mm clearance) |
