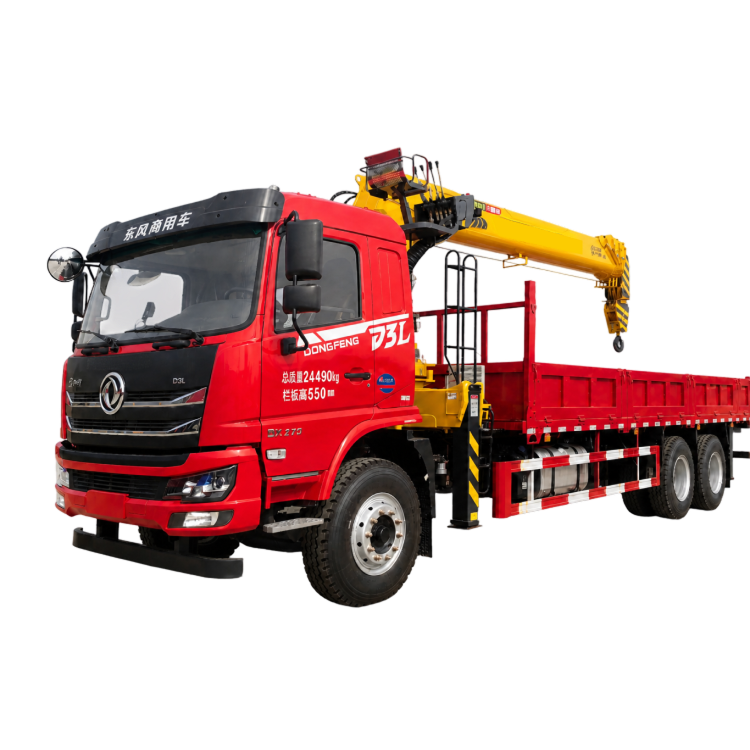

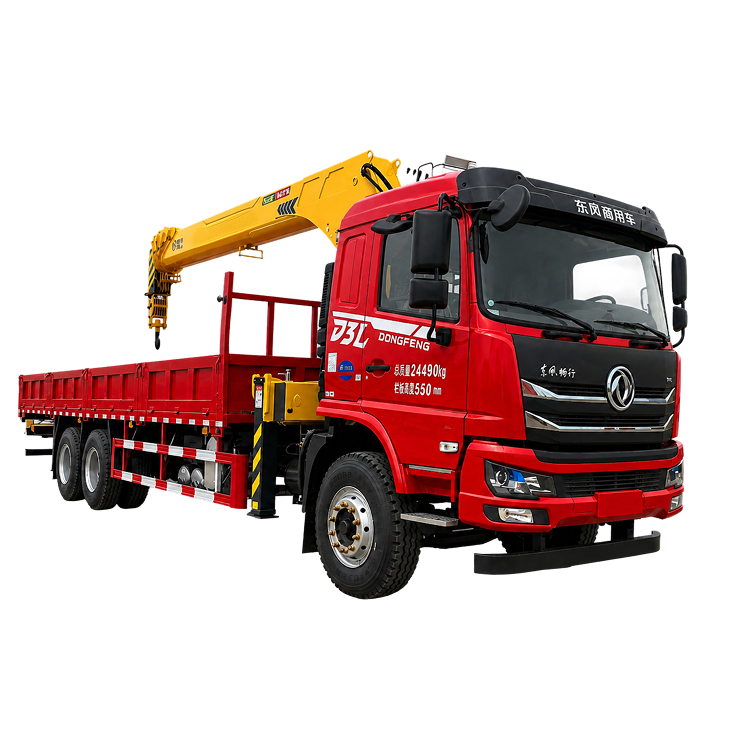

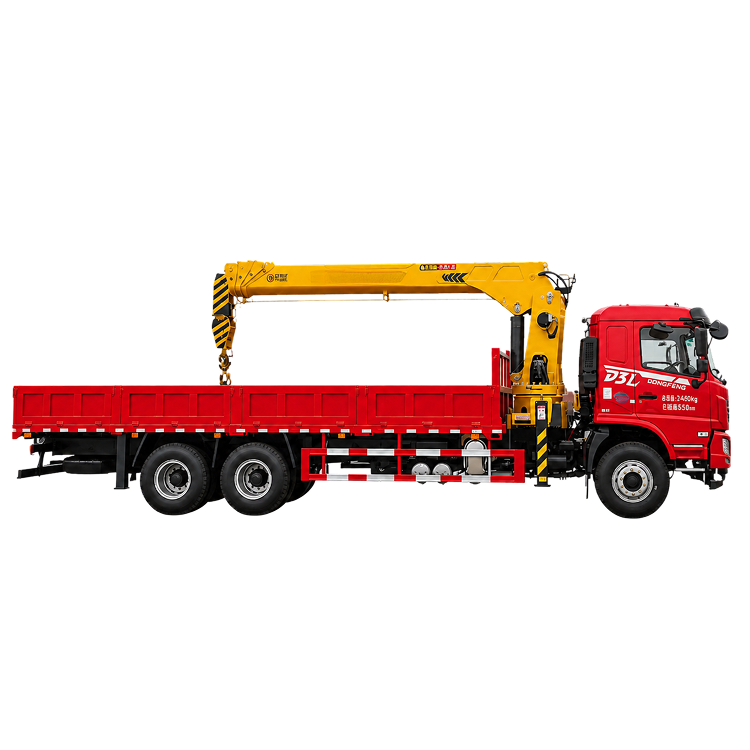

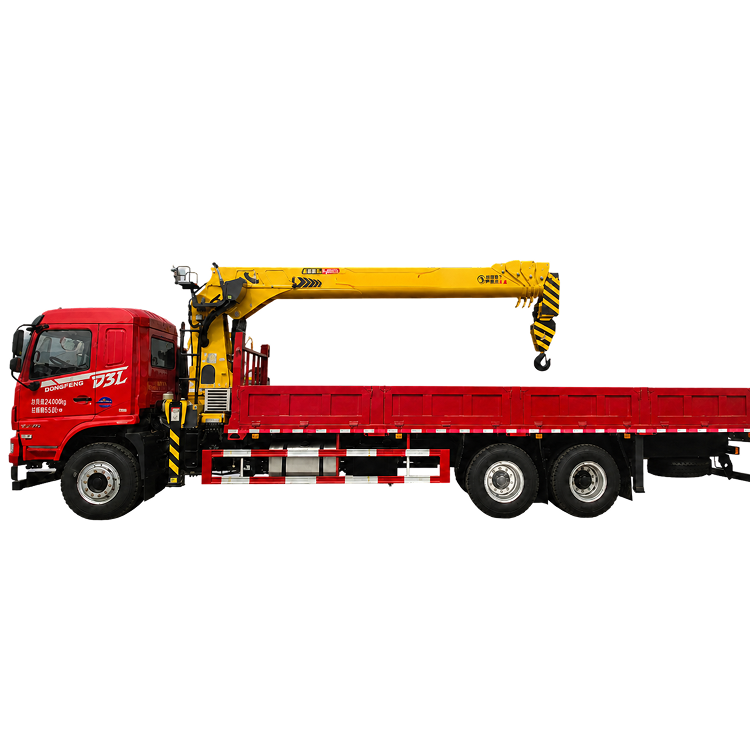

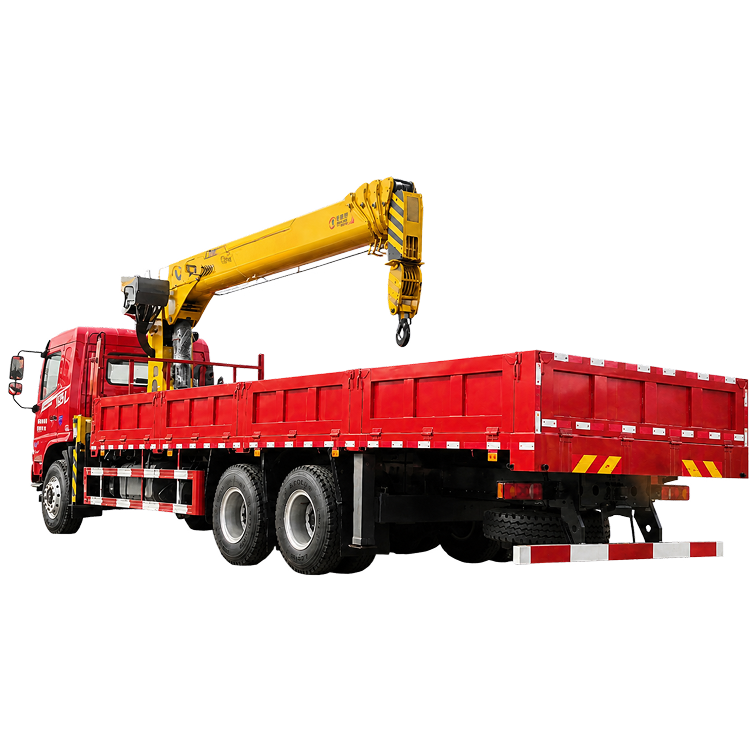

The Truck-Mounted Crane Transport Vehicle (8-Ton With Rear Tandem Axles And Four-Section Boom / CLW5250JSQE6) is a heavy-duty 6x4 commercial transport vehicle designed for large-scale lifting and long-haul logistics. Built on a 3-axle Dongfeng chassis with a rear tandem axle configuration, it combines a high-capacity 8.5-meter cargo deck with a powerful 10-ton 4-section straight-boom crane (SQS250 series), providing an all-in-one solution for heavy equipment loading, haulage, and site delivery.
Engineered for municipal infrastructure, heavy equipment movement, and construction logistics, the CLW5250JSQE6 3-Axle Crane Truck boasts a Gross Vehicle Weight (GVW) of 24,490 kg and a rated payload capacity of over 7.1 tons. Powered by high-efficiency Euro VI Cummins or Yuchai diesel engines, it offers maximum structural stability and driving performance under heavy operational loads.
10-Ton Lifting Capacity: Equipped with a standard SQS250 four-section telescoping boom crane weighing 4,960 kg with a maximum lifting capacity of 10,000 kg. Compatible with alternative crane models including HST10, S250, URV1004, ZLT2500, and JSQ250.
Large Loading Space: Extended cargo box length options (up to 8,500 mm × 2,450 mm × 600 mm) allow efficient transportation of oversized machinery, structural steel, and heavy building supplies.
Tailored Configurations: Supports customizable operator seating layouts (mid-mounted, high-mounted, or standard ground controls), variable radiator positions, and multiple rear outrigger configurations.
Powerful Euro VI Engines: Compatible with Cummins D6.7/B6.2 series and Yuchai YCS06 engines (up to 320 HP) with an optimized fuel consumption rating of 30.5 L/100km.
Tandem Axle Chassis: Features a 6x4 drive configuration (axle load: 6,490 kg front / 18,000 kg rear tandem) with multiple wheelbase options up to 5900+1350 mm.
Safety & Telematics: Equipped with a satellite-positioned GPS vehicle data recorder, an ABS safety system (Model: 3631010-C2000), direct-power ETC unit, and welded Q235A carbon steel side and rear protective guards (rear cross-section: 120 × 65 mm, ground clearance: 485 mm).
| Category | Specification | Parameter / Detail |
|---|---|---|
| Vehicle Specifications | Product Name | Truck-Mounted Crane Transport Vehicle (Rear Tandem Axle) |
| Product Model | CLW5250JSQE6 | |
| Gross Mass (GVW) | 24,490 kg | |
| Rated Payload | 7,095 kg / 7,160 kg | |
| Curb Weight | 17,200 kg | |
| Overall Dimensions | 12000 × 2550 × 3760 mm | |
| Cargo Box Dimensions | 8300, 8450, 8500 × 2450 × 550, 600 mm | |
| Maximum Speed | 89 km/h | |
| Chassis & Powertrain | Chassis Model & Name | DFV1243GP6DJ Cargo Truck Chassis (3-Axle / 10 Tires) |
| Engine Options | Cummins D6.7 / B6.2 Series, Yuchai YCS06 Series (Euro VI Diesel) | |
| Wheelbase Options | 4350+1350, 4750+1350, 5400+1350, 5700+1350, 5900+1350 mm | |
| Tires & Axle Load | 10.00R20, 11.00R20 | Axle Load: 6,490 kg (Front) / 18,000 kg (Rear Tandem) | |
| Fuel Consumption | 30.5 L/100km | |
| Safety & Electronics | ABS (3631010-C2000), GPS satellite recorder, direct-power ETC unit | |
| Crane & Equipment | Maximum Lifting Capacity | 10,000 kg (10 Tons) |
| Crane Weight & Models | 4,960 kg | SQS250, HST10, S250, URV1004, ZLT2500, JSQ250 | |
| Underrun Protection | Welded Q235A steel guards (Rear section: 120×65mm, 485mm clearance) |
