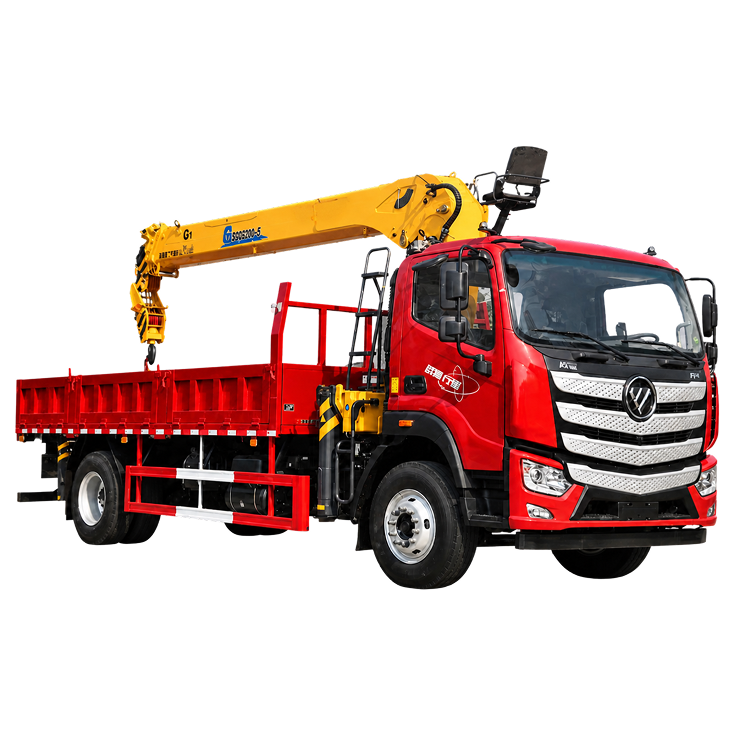

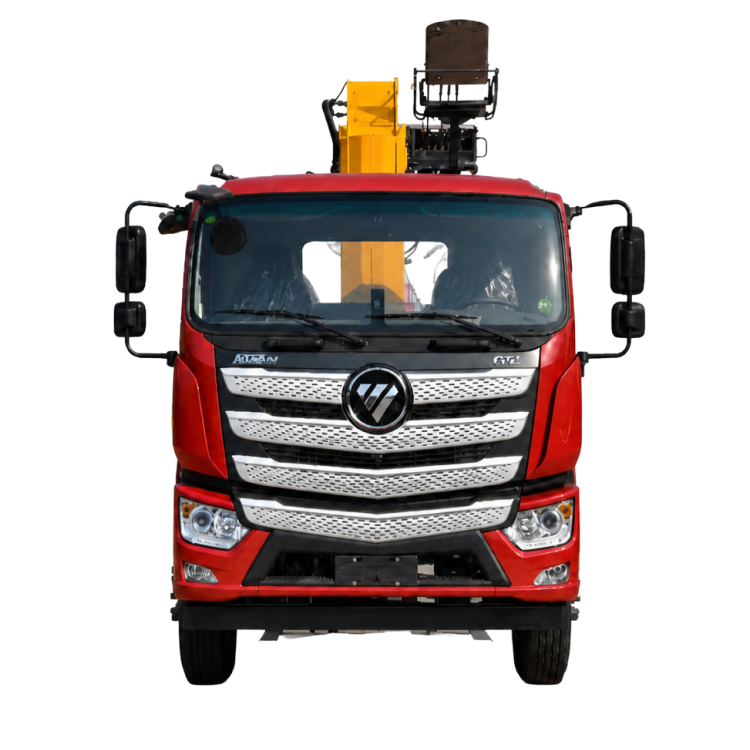

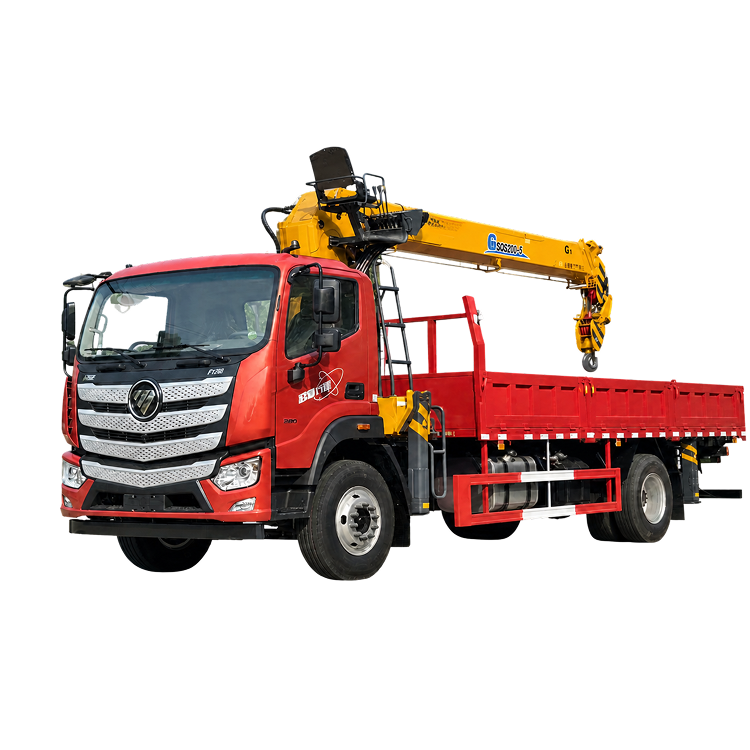

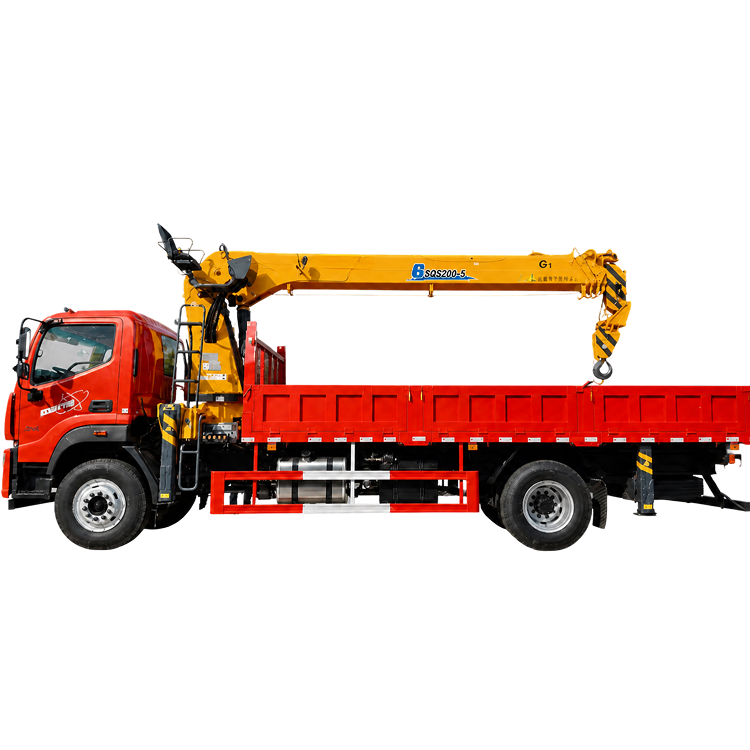

The Truck-Mounted Crane Transport Vehicle (Single-Axle / CLW5180JSQBSZ) is a dual-function commercial truck engineered for heavy-duty cargo lifting and transport. Built on a robust Foton 18-ton GVW chassis, it combines a high-capacity cargo deck with an 8-ton hydraulic crane system (available in telescoping or knuckle-boom options), delivering an efficient self-loading logistics solution for construction, forestry, and industrial equipment transport.
Designed for regional freight, equipment installation, and heavy material distribution, the CLW5180JSQBSZ Crane Truck integrates cargo hauling with independent lifting capabilities. Powered by high-output Euro VI diesel engine options (up to 270 HP), this 4x2 single-axle vehicle offers an adaptable cargo bed length up to 6.2 meters and a payload capacity reaching 6,770 kg.
8-Ton Lifting Capacity: Compatible with multiple crane models (including S200, SQZ160, SQS200, HST8, and URV804 series) with a standard maximum lift capacity of 8,000 kg and crane weight of 3,950 kg.

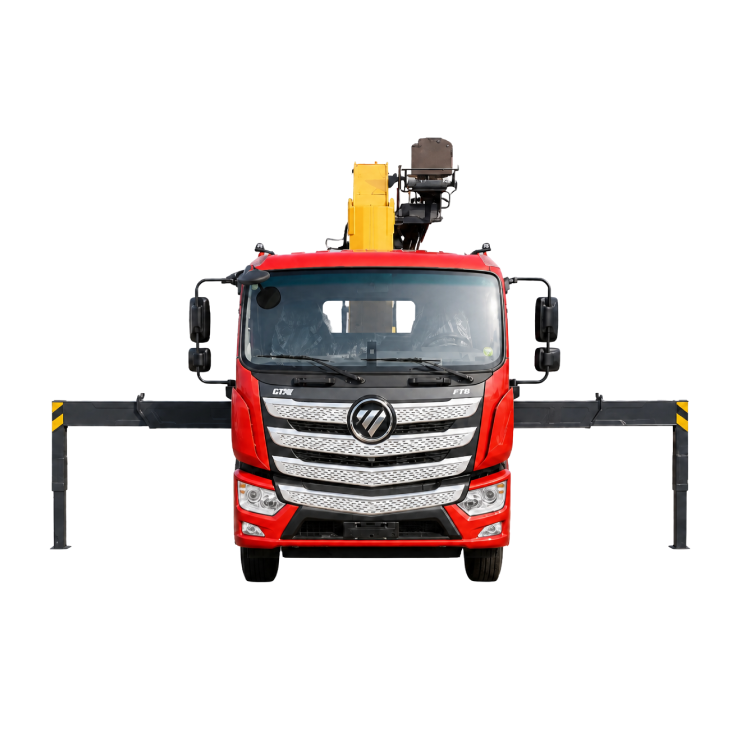

Crane Control Options: Supports mid-mounted, high-mounted, or standard operator seating layouts, as well as multiple rear outrigger and radiator configurations.
Versatile Cargo Box Options: Customizable cargo box lengths ranging from 4.2 m up to 6.2 m with drop-side heights of 550 mm or 600 mm to accommodate diverse freight volumes.
Euro VI Engine Options: Choice of Weichai WP4.6NQ220E61 (220 HP) or Yuchai YCS06 series (245 HP / 270 HP) diesel engines delivering optimized fuel efficiency (approx. 24.6–25.9 L/100km).
Telematics & Safety: Standard equipped with a satellite-positioned GPS vehicle data recorder, direct-power ETC on-board unit, and a CM4XL-4S/4M ABS system.
Structural Safety Protection: Fully welded Q235/Q235A carbon steel side and rear underrun protective guards (rear cross-section: 60 × 120 mm, ground clearance: 485 mm).
| Category | Specification | Parameter / Detail |
|---|---|---|
| Vehicle Specifications | Product Name | Truck-Mounted Crane Transport Vehicle (Single-Axle) |
| Product Model | CLW5180JSQBSZ | |
| Gross Mass (GVW) | 18,000 kg | |
| Rated Payload | 5,745 kg / 5,810 kg / 6,705 kg / 6,770 kg | |
| Curb Weight | 11,100 kg / 12,060 kg | |
| Overall Dimensions | 7410, 8260, 8720, 9000 × 2500, 2550 × 3580–3880 mm | |
| Cargo Box Dimensions | 4200–6200 × 2300–2450 × 550, 600 mm | |
| Maximum Speed | 90 km/h | |
| Chassis & Powertrain | Chassis Model & Name | BJ1184VKPFN-02 Cargo Truck Chassis |
| Engine Options | WP4.6NQ220E61 (220HP) / YCS06245-60 (245HP) / YCS06270-60 (270HP) | |
| Fuel Type & Emission Standard | Diesel Fuel | GB17691-2018 National VI | |
| Wheelbase Options | 3950, 4500, 4800, 5100, 5250 mm | |
| Tires & Axle Load | 2 Axles / 6 Tires (10.00R20, 11R22.5, 295/80R22.5) | Axle Load: 6500/11500 kg | |
| Safety & Electronics | CM4XL-4S/4M ABS system, GPS vehicle data recorder, ETC unit | |
| Crane & Equipment | Maximum Lifting Capacity | 8,000 kg (Optional models up to 7,000–8,000 kg capacity) |
| Crane Weight & Models | 3,950 kg | S200, SQZ160, SQS200, HST8, URV804, ZLT2000, etc. | |
| Underrun Protection | Welded Q235/Q235A steel guards (Rear section: 60×120mm, 485mm clearance) |
