Product Overview

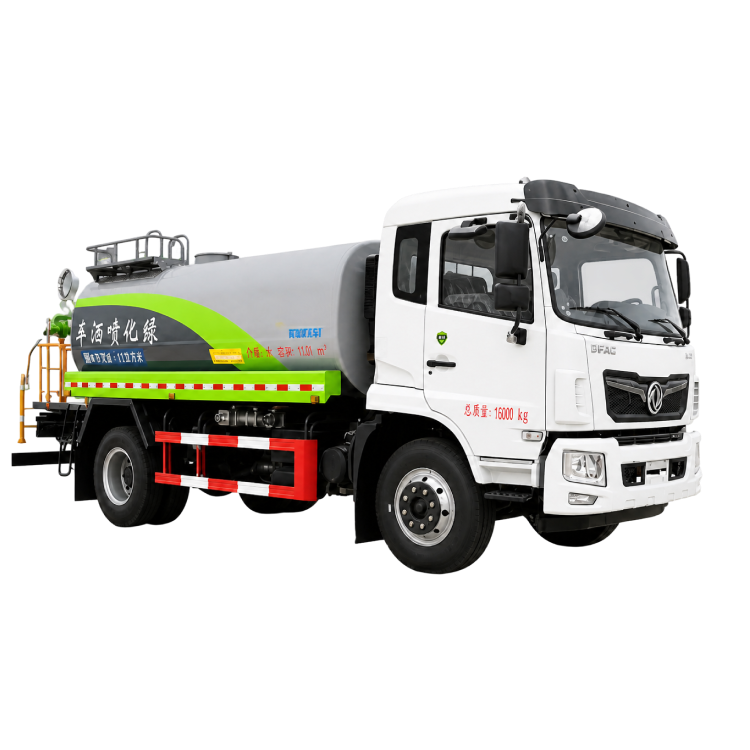

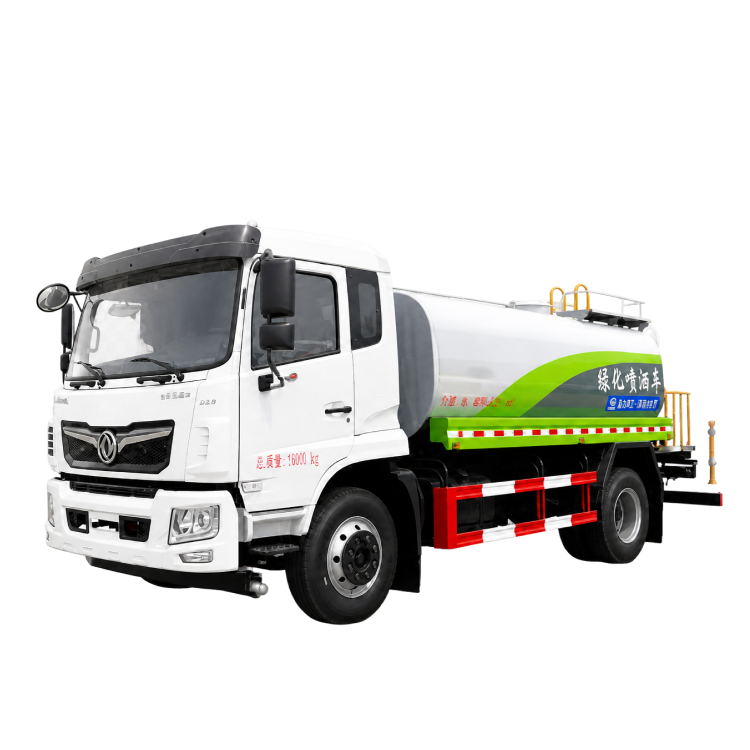

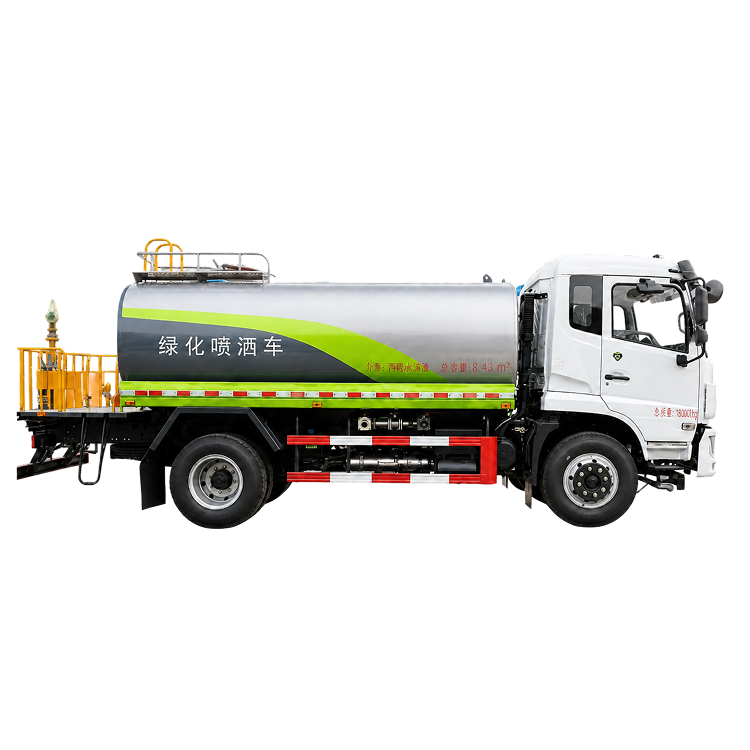

The CL5168GPS6AQC Greenery Sprinkler Truck is built on a heavy-duty Dongfeng Furika F9 (EQ1165S8EDF) 4x2 chassis with a 3,950 mm wheelbase
Tank Body & Structural Strength
Built for demanding commercial use, the tank offers an actual liquid volume of 12.58 m³ (10.43 m³ official rating)
Water Systems & Operations
Driven by a high-power self-priming dedicated water pump ($\ge$6m suction depth), the vehicle covers a sprinkling width of over 16 meters
Optional Fog Cannon Unit
An optional QF-30 wind-driven mist cannon machine (powered by an 8 kW air-cooled diesel generator set with a 360° rotation angle) can be mounted for specialized environmental dust control, agricultural spraying, and high-altitude building washing
| Category | Specification | Parameter / Detail |
| Basic Vehicle Parameters | Product Name | CL5168GPS6AQC Greenery Sprinkler Truck |
| Chassis Model | Dongfeng EQ1165S8EDF (Furika F9) | |
| Drive Type | 4x2 Left-Hand Drive (LHD) | |
| Overall Dimensions | 7965 / 8465 x 2520 x 3250 mm | |
| Wheelbase | 3950 mm | |
| Gross Vehicle Weight (GVW) | 16,000 kg | |
| Curb Weight | 6,350 kg | |
| Rated Payload | 9,455 kg | |
| Engine & Transmission | Engine Model | Yunnei D30TCIF1 (Kunming Yunnei Power) |
| Engine Power / Horsepower | 125 kW / 170 HP | |
| Displacement | 2977 ml | |
| Transmission | FAST 8-Speed (High/Low Gear) | |
| Axle Capacity | 2.7T Front Axle / 8T Rear Axle | |
| Tires | 9.00R20 Radial Steel Tires | |
| Tank & Material Specs | Actual Tank Capacity | 12.58 m3 (12,580 Liters) |
| Official Rated Volume | 10.43 m3 | |
| Tank Dimensions | 4200 x 2350 x 1500 mm | |
| Tank Material | Q235 Carbon Steel | |
| Steel Thickness | Shell 4 mm / Dished Heads 5 mm / Anti-surge Baffles 3 mm | |
| Piping & Valve System | 76 mm enlarged main pipe, seamless aluminum flange tees, direct-through ball valves | |
| Performance & Operations | Water Pump Suction Depth | >= 6 meters |
| Sprinkling Width | >= 16 meters | |
| High-Pressure Cannon Range | >= 30 meters | |
| Cannon Spray Modes | Continuously adjustable (Solid Stream, Heavy Rain, Moderate Rain, Fine Mist) | |

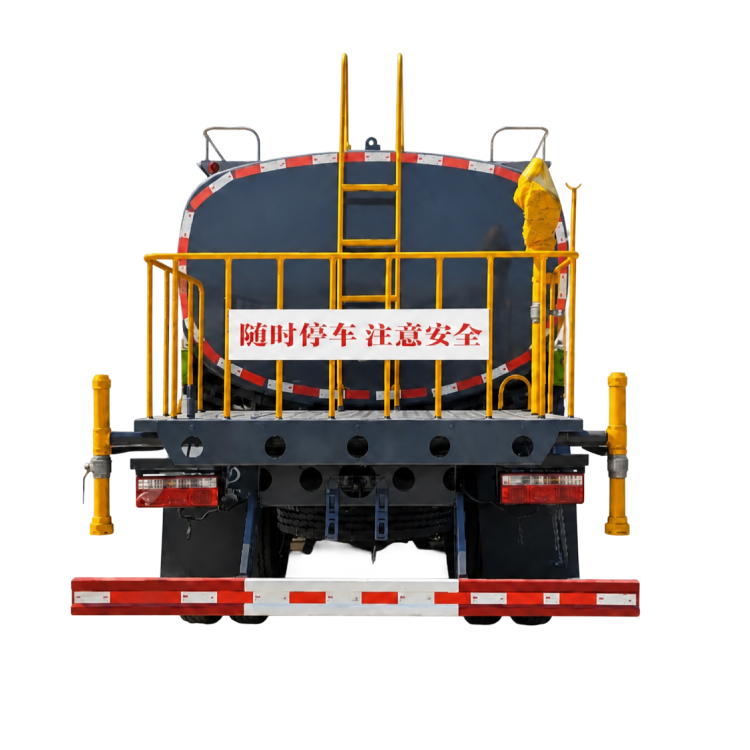

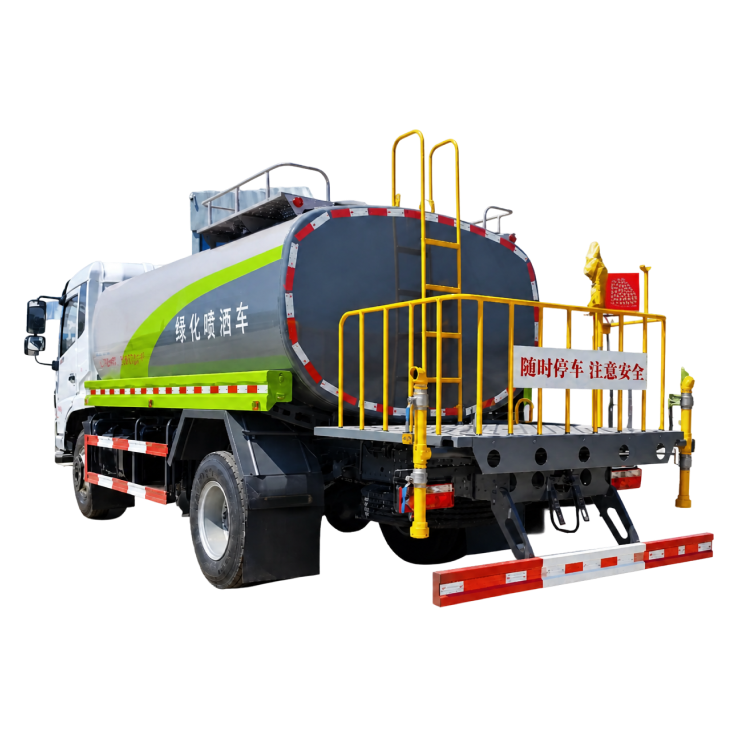

| Rear Platform | Heavy-duty punched anti-slip steel platform | |
| Standard Functions | Front flush, rear sprinkler, side spray, fire hose connection, self-priming/self-draining, filter screen | |
| Optional Equipment | QF-30 mist cannon unit (360 degree rotation, remote control dust suppression) |
